172 x 150 mm AC Axial Fan
Rectangular frame with rounded ends and a 38 mm depth, designed for AC axial airflow in equipment cooling.
1 / 5
Ebmpapst

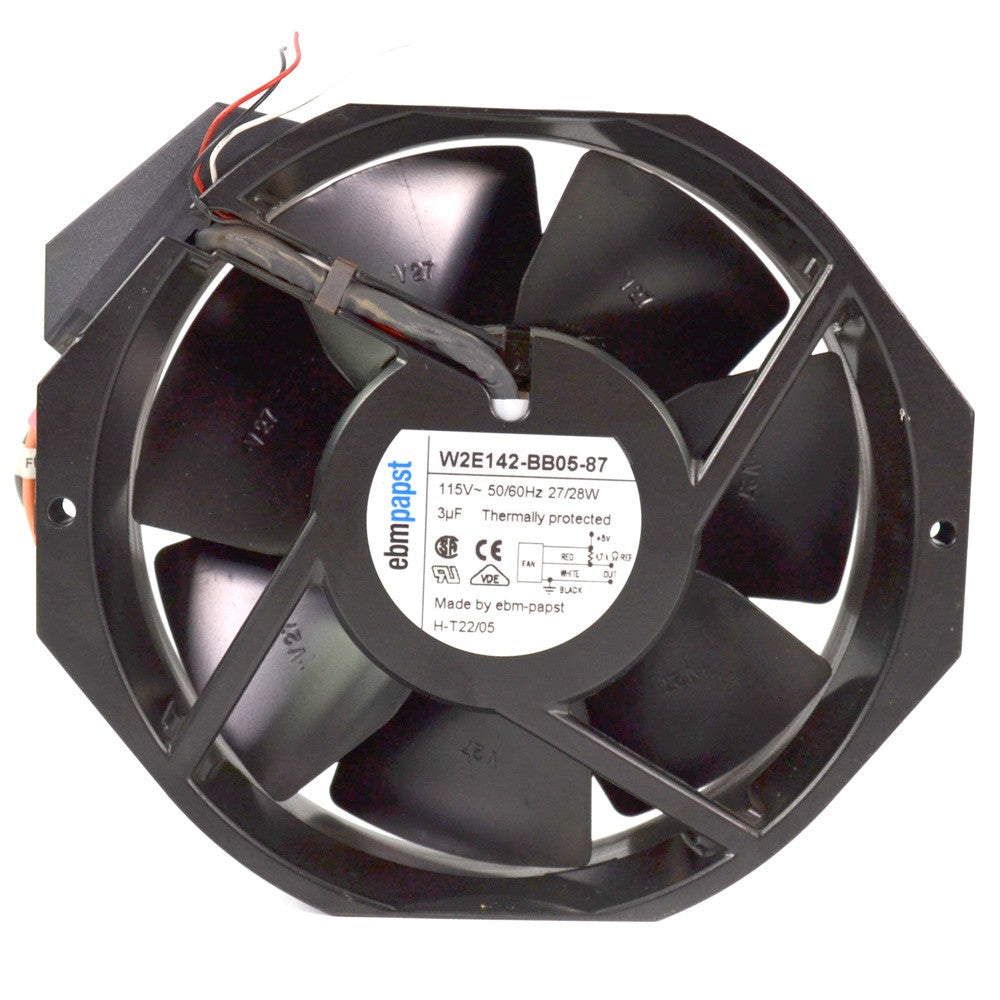

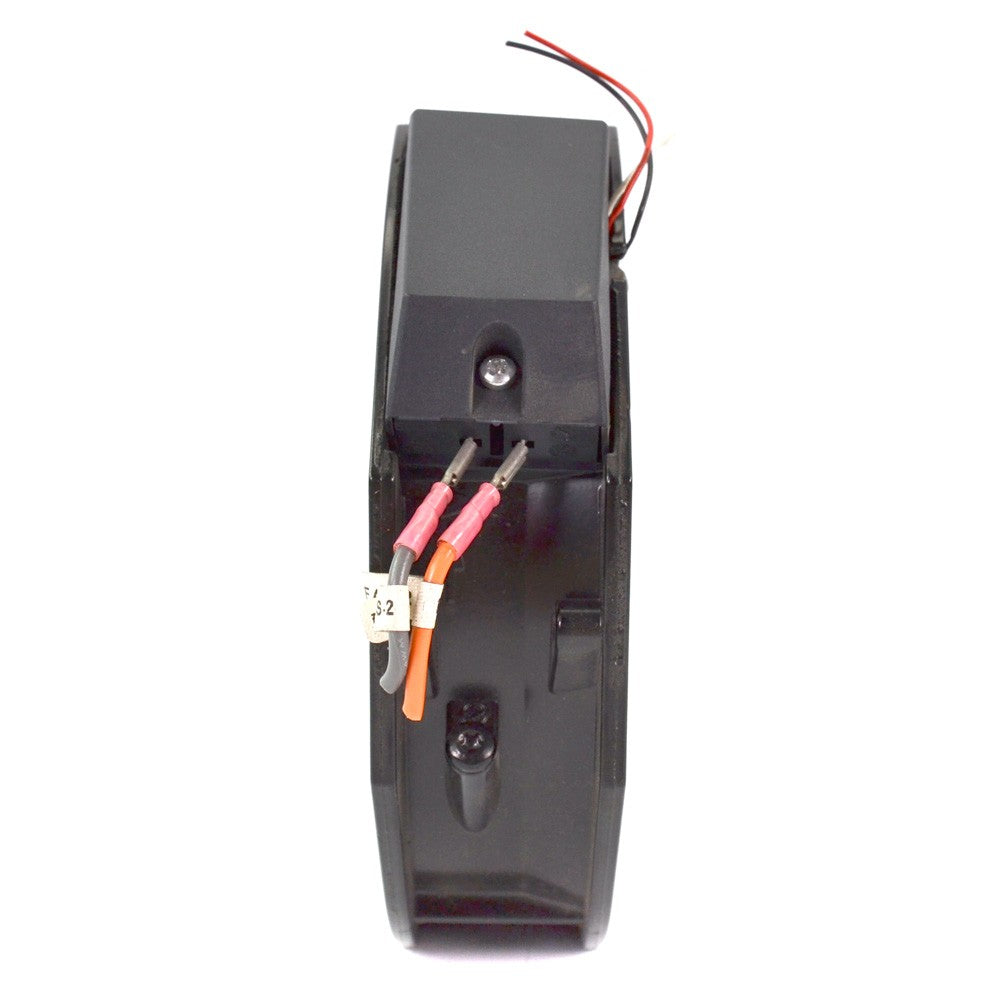

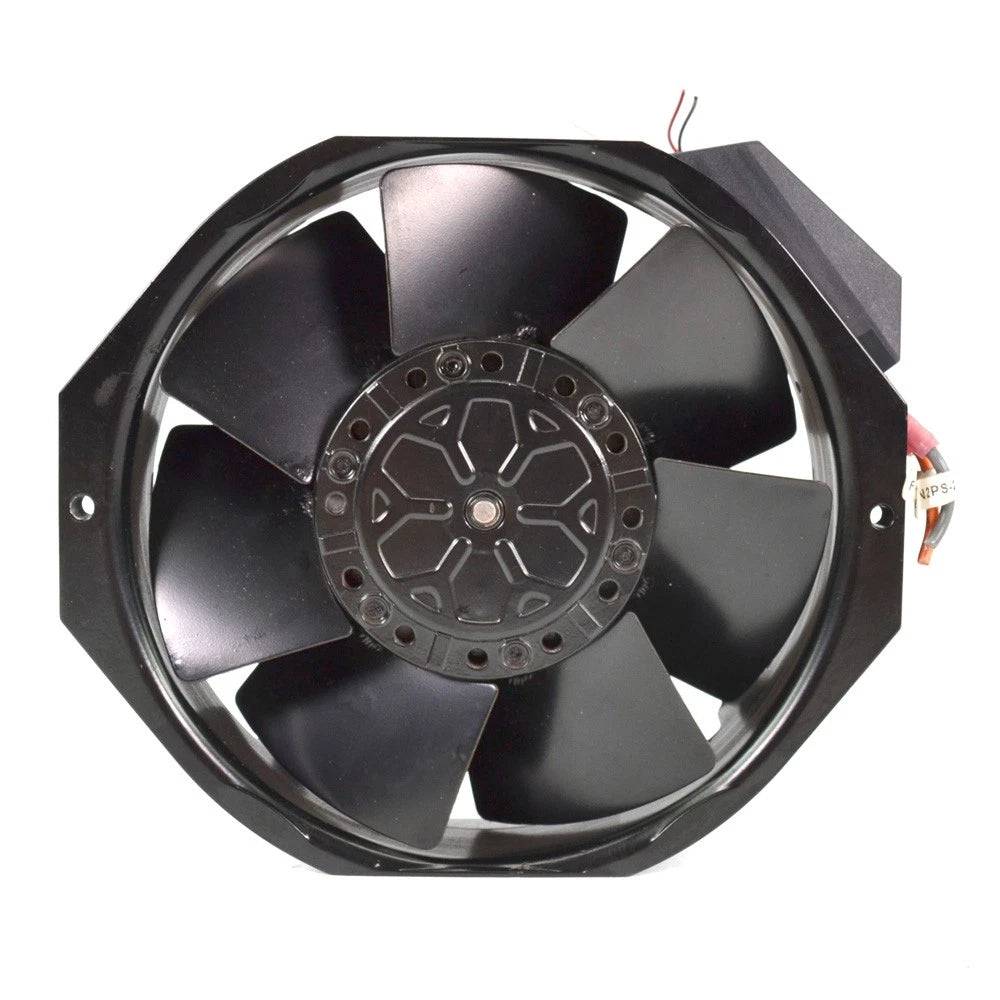

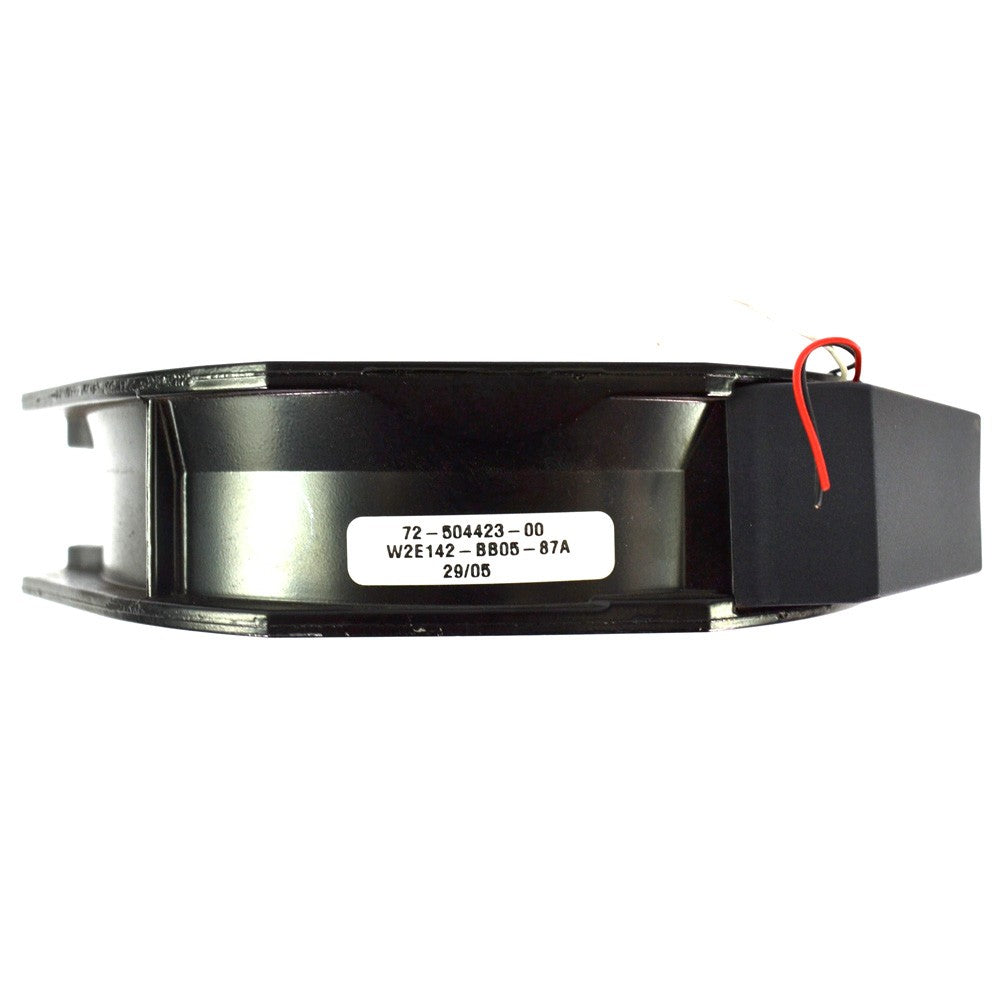

Ebmpapst W2E142-BB05-87 Axial Fan 230V 142mm 45W
PRODUCT PRICE
USD
$107.95
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | W2E142-BB05-87 |
| Product Category | Axial Fan |
| Fan Type | AC Tubeaxial Fan |
| Nominal Voltage | 115 VAC (also referenced for 230 VAC systems in some sources) |
| Power Rating | 28 W |
| Current Rating | 250 mA |
| Speed | 3350 RPM |
| Air Flow | 230 CFM (6.44 to 6.512 m³/min) |
| Noise Level | 57 dBA |
| Frame Dimensions | 172 x 150 x 38 mm |
| Frame Type | Rectangular with Rounded Ends |
| Bearing Type | Ball Bearing |
| IP Rating | IP22 |
| Termination | 2 Terminals / 2 Lead Wires |
| Max Operating Temperature | Up to 176 °C (reference) |
Key Features
230 CFM Air Flow
Delivers approximately 230 CFM (6.44 to 6.512 m³/min) at 3350 RPM for higher-volume air movement.
28 W AC Motor
Rated at 28 W with a 250 mA current draw on the referenced AC supply.
IP22 Protection
IP22-rated for protection against finger contact and vertically dripping water in fixed indoor installations.
Ball Bearing Construction
Ball bearing assembly supports the fan within the published speed, power, and temperature ratings.
Applications
- Industrial AC equipment cooling
- Cabinet and panel ventilation
- Heat exchanger air movement
- Power supply and drive cooling
- Machinery ventilation with AC supply
- General purpose tubeaxial airflow
Purchase Information
We support online purchase of the Ebmpapst W2E142-BB05-87 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst W2E142-BB05-87? The W2E142-BB05-87 is an AC tubeaxial fan with a rectangular 172 x 150 mm frame and a 38 mm depth, used for AC-powered cooling applications.
What is the voltage of the W2E142-BB05-87? The nominal rated voltage is 115 VAC, although some sources reference 230 VAC compatibility.
What is the air flow of the W2E142-BB05-87? Air flow is rated at 230 CFM (6.44 to 6.512 m³/min).
What is the power rating of the W2E142-BB05-87? The fan is rated at 28 W with a current rating of 250 mA.
What is the speed of the W2E142-BB05-87? The rated speed is 3350 RPM.
What is the noise level of the W2E142-BB05-87? The published noise level is 57 dBA.
What is the IP rating of the W2E142-BB05-87? The fan has an IP22 rating.
What bearing type does the W2E142-BB05-87 use? It uses ball bearings.
How is the W2E142-BB05-87 terminated? It is provided with 2 terminals or 2 lead wires.
What should be checked before ordering the W2E142-BB05-87? Confirm the available AC supply voltage (115 VAC nominal), the 172 x 150 mm frame opening, the IP22 installation environment, the 2-terminal/lead connection, and the ambient temperature at the fan location.
