400 VAC 3-Phase
Operates on a 400 VAC three-phase supply for industrial power systems.
1 / 2
Ebmpapst

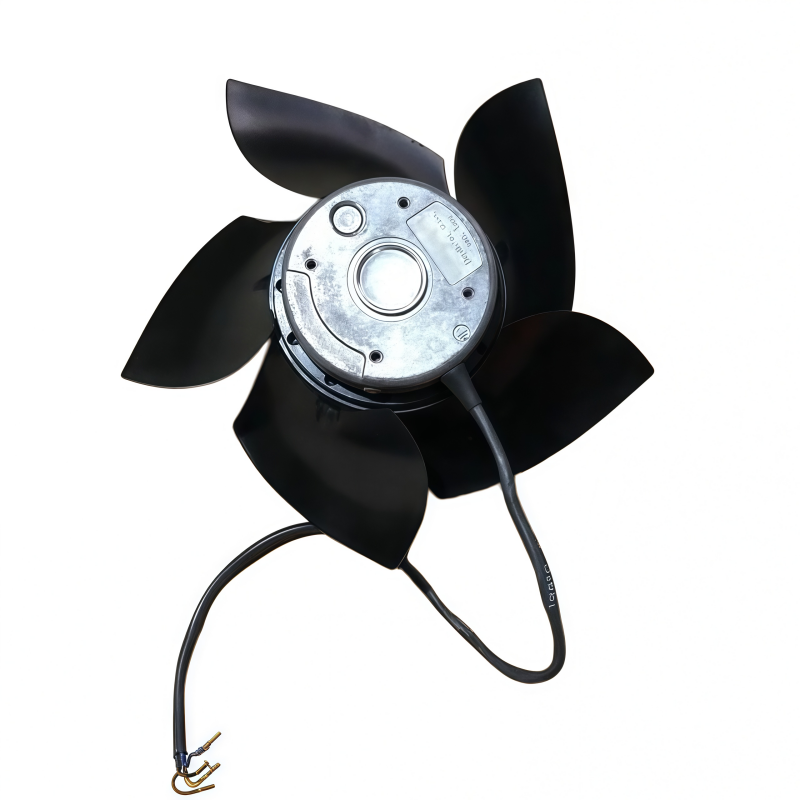

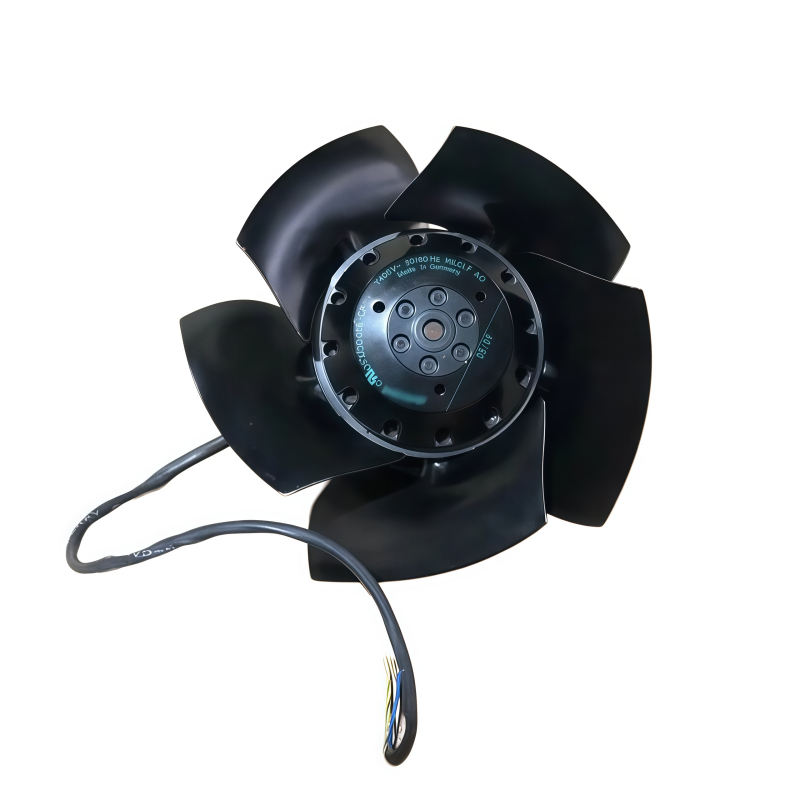

Ebmpapst W2D210-EB10-12 Axial Fan 400VAC 210mm 60W
PRODUCT PRICE
USD
$258.05
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | W2D210-EB10-12 |
| Product Category | Axial Fan |
| Rated Voltage | 400 VAC |
| Phase | 3~ |
| Frequency | 50 Hz |
| Input Power | 89 W |
| Current Draw | 0.26 A |
| Speed | 2750 RPM |
| Fan Size | 210 mm |
| Protection Rating | IP44 |
| Insulation Class | F |
| Bearing Type | Ball Bearing |
| Number of Blades | 5 |
| Blade Material | Sheet Steel, Painted Black |
| Housing Material | Die-Cast Aluminum, Painted Black |
| Weight | 5.4 kg |
| Operating Temperature | -25°C to +60°C |
Key Features
89 W Input Power
Input power rated at 89 W for continuous axial air movement.
2750 RPM Speed
Fan speed of 2750 RPM for cooling in equipment enclosures.
IP44 Protection
IP44 protection rating for resistance to dust and water splashes.
Sheet Steel Blades
Five sheet steel blades finished in black for air movement.
Applications
- Drive motor cooling
- Industrial inverter cooling
- Machine tool cooling
- Control cabinet ventilation
- Power electronics thermal management
- Production equipment cooling
- Spindle motor cooling
Purchase Information
We support online purchase of the Ebmpapst W2D210-EB10-12 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst W2D210-EB10-12? The W2D210-EB10-12 is an axial fan from Ebmpapst with a 210 mm fan size.
What voltage does the W2D210-EB10-12 require? It operates on 400 VAC three-phase power at 50 Hz.
What is the input power? The input power is 89 W.
What is the current draw? The current draw is 0.26 A.
What is the fan speed? The speed is 2750 RPM.
What is the protection rating? The fan has an IP44 protection rating.
What is the weight of the fan? The fan weighs approximately 5.4 kg.
How many blades does the fan have? The axial impeller has 5 blades.
What is the insulation class? The insulation class is F.
What should be checked before ordering? Confirm the 400 VAC three-phase supply, mounting dimensions, airflow requirement, and IP rating against the installation.
