230/400 VAC Three-Phase Supply
Published data indicates a 230/400 VAC supply at 50/60 Hz, suitable for three-phase industrial power systems in HVAC and refrigeration equipment.
1 / 4
Ebmpapst

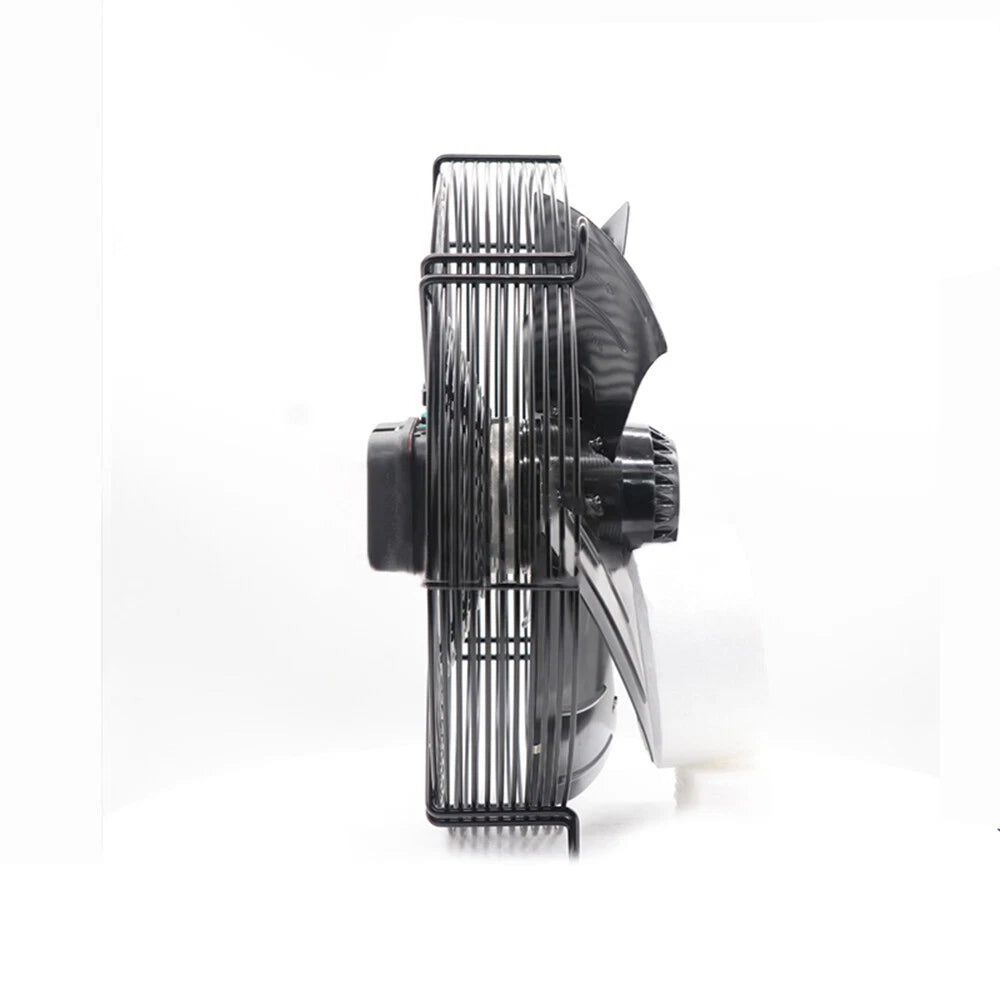

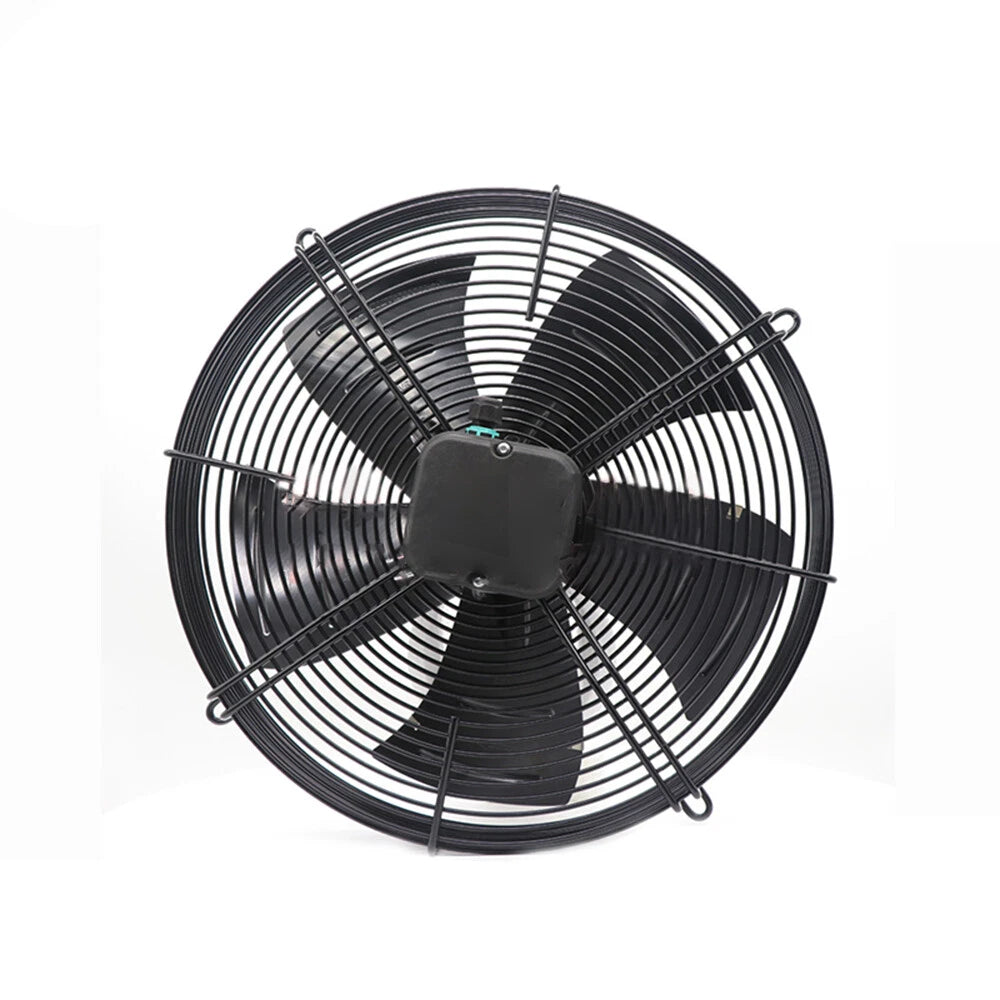

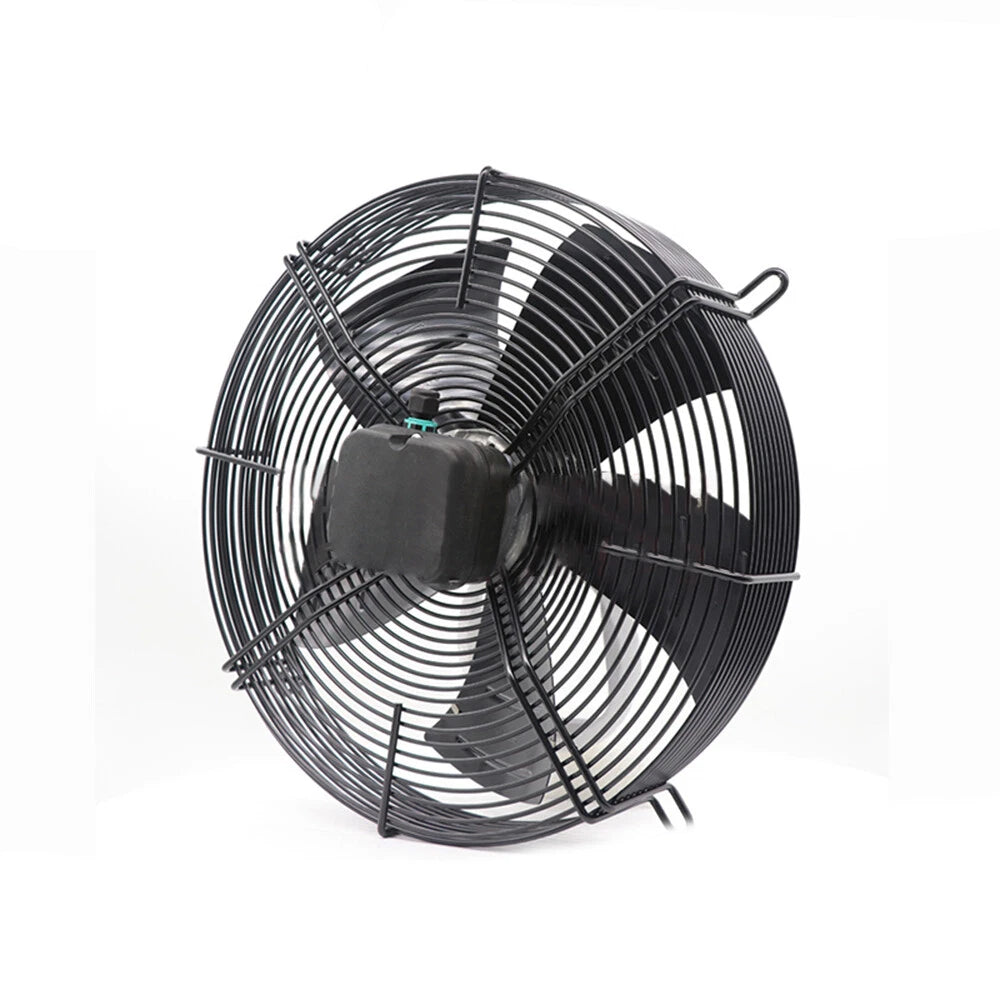

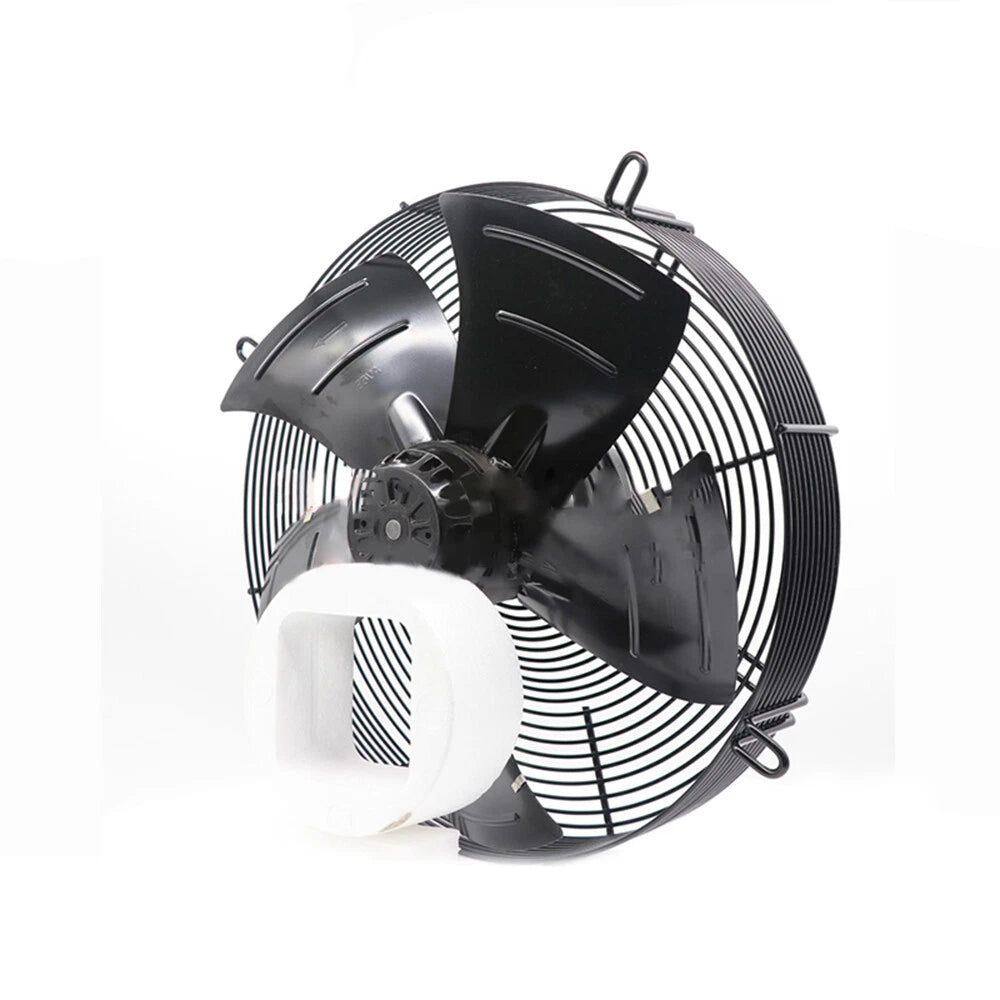

Ebmpapst S4D400-AP12-37 Centrifugal Fan 400V 400mm
PRODUCT PRICE
USD
$324.49
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | S4D400-AP12-37 |
| Product Category | Centrifugal Fan |
| Fan Type | AC Axial Fan (published as axial fan for condenser/evaporator duty) |
| Voltage | 230/400 VAC |
| Frequency | 50/60 Hz |
| Current | 0.44/0.39 A (published 50/60 Hz figures; some sources also list 0.39/0.76 A) |
| Power | 135/185 W (50/60 Hz published figures; some sources list 135/285 W) |
| Speed | 1450/1690 rpm |
| Impeller Diameter | 400 mm |
| Static Pressure | 105/120 Pa (published range) |
| Protection Rating | IP44 |
| Operating Temperature | -40°C to +70°C |
| Weight | 5.7 kg |
Key Features
400 mm Impeller
The 400 mm fan diameter supports high-volume air movement in condenser, evaporator and ventilation applications where a large swept area is required.
Dual-Speed 50/60 Hz Operation
Published data shows 1450 rpm at 50 Hz and 1690 rpm at 60 Hz, with corresponding power and pressure variations for different supply frequencies.
IP44 Protection
Rated IP44 for protection against solid objects larger than 1 mm and water splashes, appropriate for many outdoor and semi-exposed HVAC installations.
Wide Temperature Range
Published operating temperature range of -40°C to +70°C supports use in refrigeration, condenser and industrial ventilation environments.
Applications
- Condenser and evaporator fan assemblies
- HVAC air-cooled equipment
- Refrigeration systems
- Industrial ventilation and air movement
- Cooling towers and heat rejection equipment
- Large enclosure and plant-room ventilation
- Three-phase AC fan installations in 400 mm class systems
Purchase Information
We support online purchase of the Ebmpapst S4D400-AP12-37 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst S4D400-AP12-37? The S4D400-AP12-37 is a 400 mm AC fan used in condenser, evaporator and industrial ventilation applications, operating on a 230/400 VAC three-phase supply.
What is the voltage and frequency? Published data indicates 230/400 VAC at 50/60 Hz.
What is the current and power? Published 50/60 Hz figures are 0.44/0.39 A and 135/185 W; some sources list 0.39/0.76 A and 135/285 W, so the exact rating should be confirmed against the motor label for the intended supply frequency.
What is the speed? The fan runs at 1450 rpm at 50 Hz and 1690 rpm at 60 Hz.
What is the impeller diameter? The impeller diameter is 400 mm.
What static pressure is specified? Published static pressure figures are in the 105/120 Pa range.
What is the protection rating? The fan is rated IP44.
What is the operating temperature range? The published operating temperature range is -40°C to +70°C.
What is the weight? The fan weighs 5.7 kg.
What should be checked before ordering? Confirm the actual supply voltage and phase configuration, 50 Hz or 60 Hz operation, 400 mm fan mounting and clearance, IP44 suitability for the installation environment, operating temperature extremes and the condenser/evaporator airflow and pressure requirements.
