High-Pressure Centrifugal Fan
Delivers a documented pressure increase of 3200 Pa for high-resistance air paths.
1 / 3
Ebmpapst

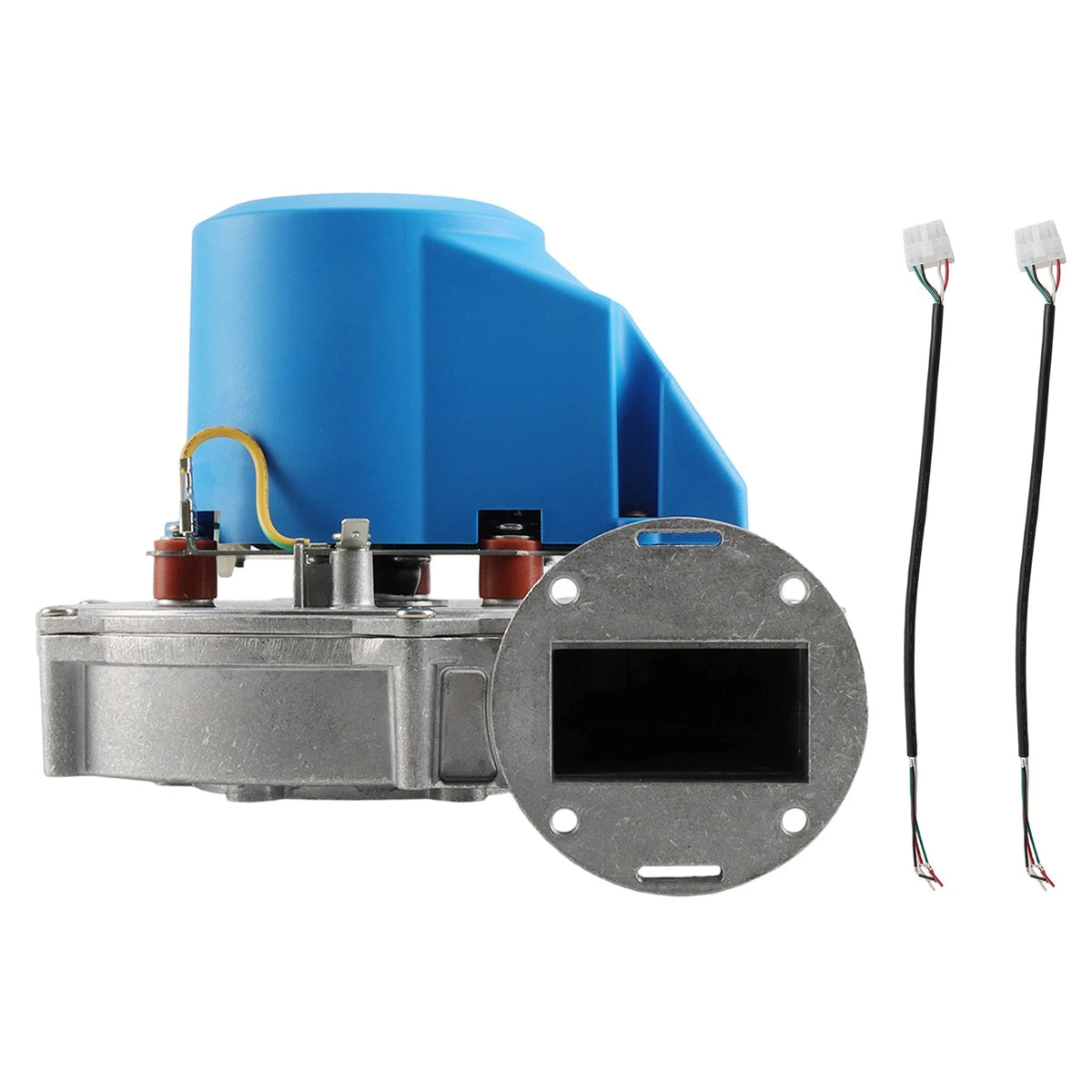

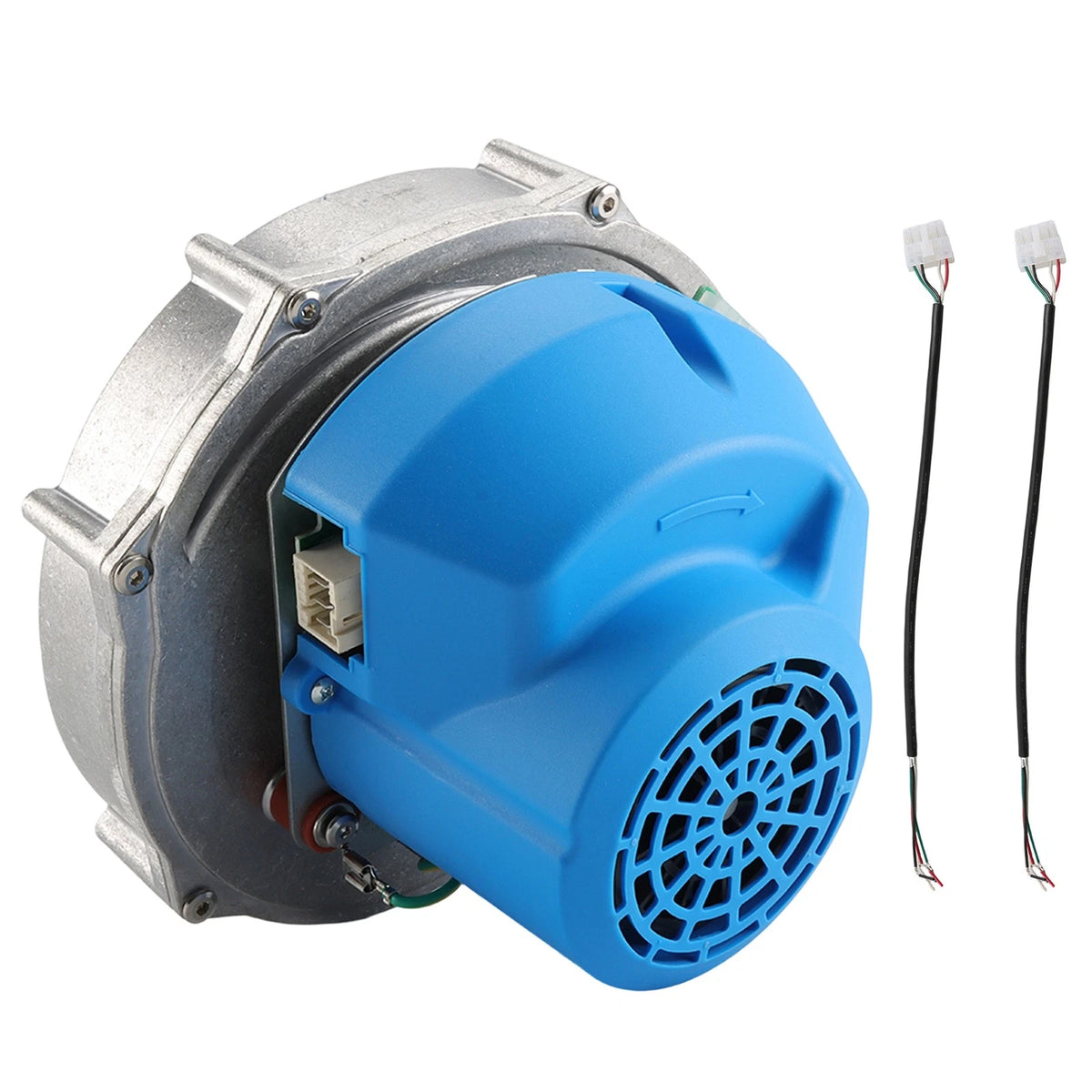

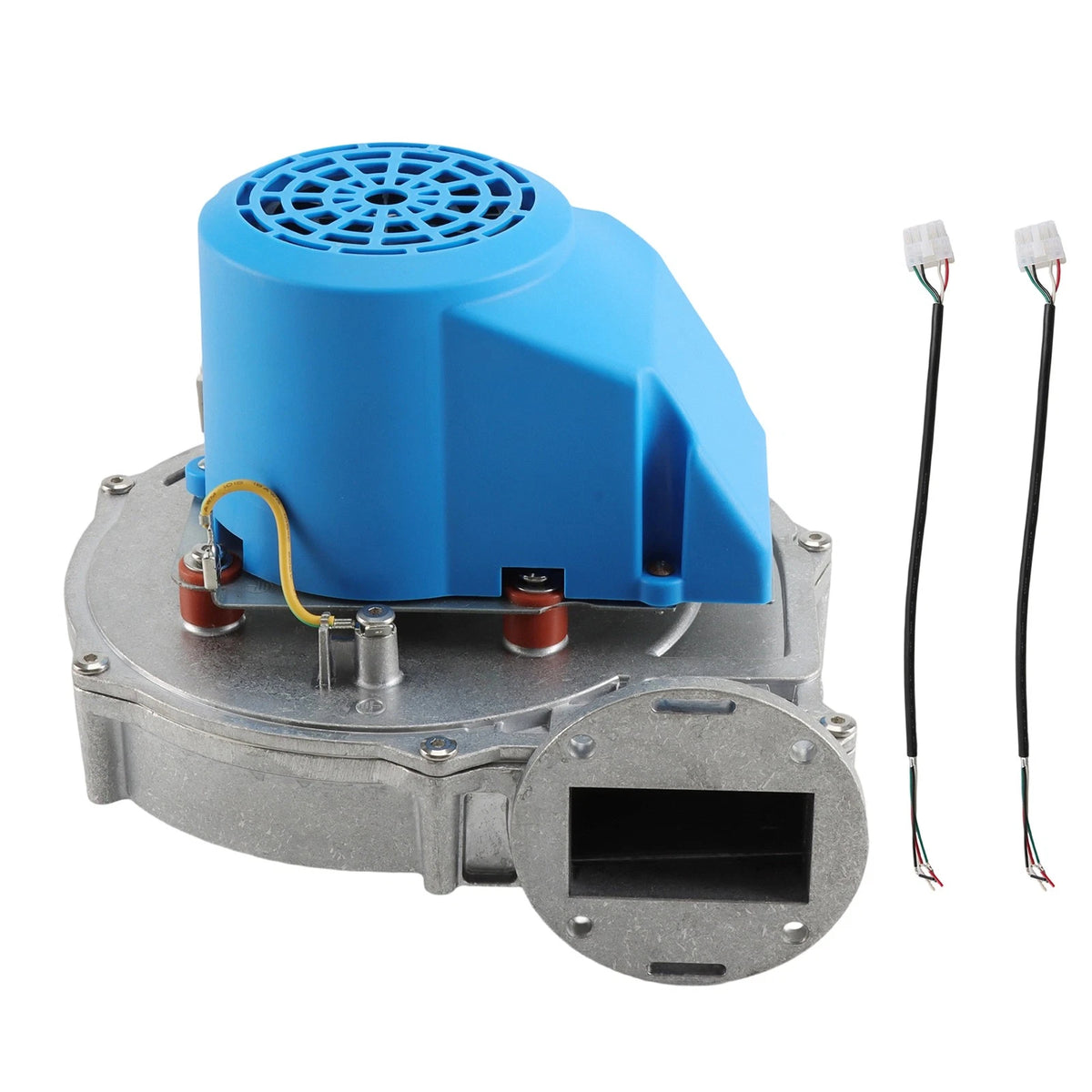

Ebmpapst RG148/1200-3633-010303-108 Centrifugal Fan 230V 148mm 85W
PRODUCT PRICE
USD
$396.99
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | RG148/1200-3633-010303-108 |
| Product Category | Centrifugal Fan |
| Fan Type | Centrifugal Fan for Gas Boiler / High-Pressure Duty |
| Nominal Voltage | 1~230 VAC |
| Frequency | 50 Hz |
| Input Power | 135 W |
| Speed | 8500 rpm |
| Air Flow | 190 m³/h |
| Pressure Increase | 3200 Pa |
| Impeller Diameter | 148 mm |
| Housing Material | Die-cast Aluminum |
| Weight | 1.9 kg |
Key Features
135 W Input Power
Published data identifies 135 W input power at nominal operating conditions.
8500 rpm High Speed
The fan operates at 8500 rpm with a 148 mm impeller.
190 m³/h Air Flow
Provides 190 m³/h air flow at the documented high-pressure operating point.
Die-cast Aluminum Housing
The housing material is documented as die-cast aluminum for the intended duty.
Compact 148 mm Impeller
The 148 mm impeller format supports compact high-pressure fan installations.
Applications
- Gas boiler combustion air and flue gas systems
- High-pressure ventilation in compact equipment
- Industrial burner air supply
- Heat exchanger and condenser airflow
- Process equipment requiring high static pressure
- HVAC and boiler fan applications
- Combustion and flue systems in heating equipment
- General high-pressure centrifugal fan duties
Purchase Information
We support online purchase of the Ebmpapst RG148/1200-3633-010303-108 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst RG148/1200-3633-010303-108? It is a high-pressure centrifugal fan with a 148 mm impeller, commonly used in gas boiler and combustion air applications.
What is the nominal voltage and frequency? The nominal supply is 1~230 VAC at 50 Hz.
What are the pressure and air flow ratings? Published data identifies 3200 Pa pressure increase and 190 m³/h air flow.
What is the input power? The documented input power is 135 W.
What is the fan speed? The documented speed is 8500 rpm.
What is the impeller diameter? The impeller diameter is 148 mm.
What material is the housing? The housing material is die-cast aluminum.
What is the weight of the fan? The documented weight is 1.9 kg.
Can this fan be used in gas boiler systems? The RG148/1200-3633 series is documented for gas boiler fan applications; the specific suitability for a given boiler and installation must be verified against the boiler manufacturer requirements and local regulations.
What should be checked before ordering the RG148/1200-3633-010303-108? Check the complete catalog number, 230 VAC supply, required pressure and air flow, 148 mm impeller installation, flue gas temperature compatibility, housing material and the specific boiler or combustion system requirements.
