560 mm EC Centrifugal Design

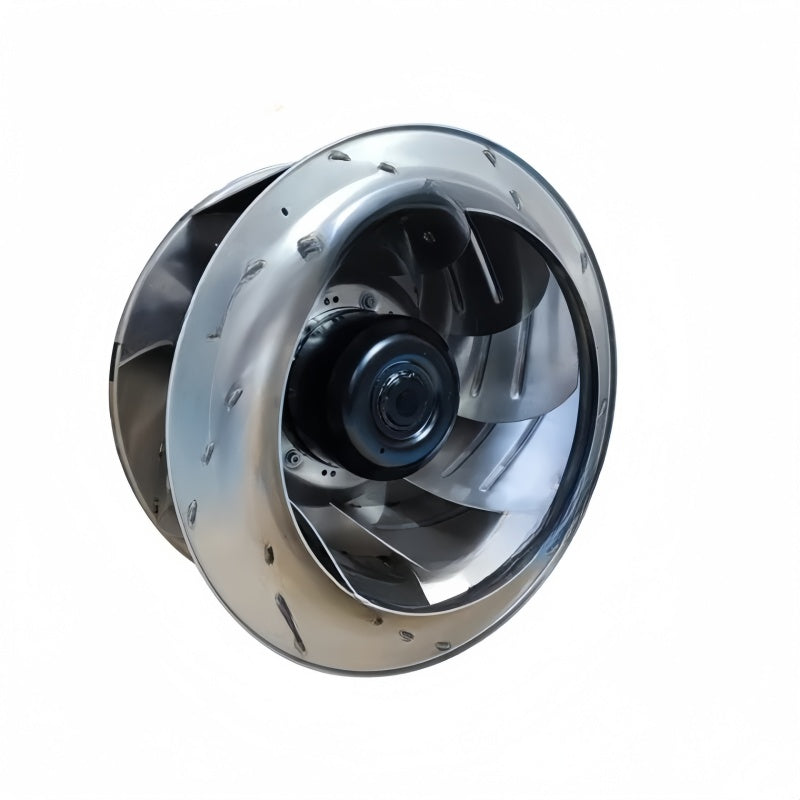

The R3G560-AH23-01 is a backward-curved, single-inlet EC centrifugal fan with a 560 mm nine-blade sheet-aluminum impeller.
Ebmpapst R3G560-AH23-01 EC Centrifugal Fan 400VAC 3000W 1520RPM
Available in stock (200)
Regular price
$825.51
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | R3G560-AH23-01 |
| Product Category | EC Centrifugal Fan |
| Series | R3G560 |
| Fan Type | EC Centrifugal Fan, Backward-Curved, Single-Inlet |
| Motor Model | M3G150-IF |
| Fan Size | 560 mm |
| Phase | 3-Phase |
| Rated Voltage | 400 VAC |
| Voltage Range | 380-480 VAC |
| Frequency | 50/60 Hz |
| Power Input | 3000 W |
| Current Draw | 4.6 A |
| Speed | 1520 RPM |
| Air Flow at Optimum Efficiency | 8760 m³/h |
| Static Pressure at Optimum Efficiency | 704 Pa |
| Impeller Material | Sheet Aluminum |
| Number of Blades | 9 |
| Electronics Housing Material | Die-Cast Aluminum |
| Direction of Rotation | Clockwise, Viewed Toward Rotor |
| Degree of Protection | IP55 |
| Insulation Class | Class F |
| Bearing Type | Ball Bearing |
| Electrical Connection | Terminal Box |
| Control Input | 0-10 VDC / PWM |
| Communication Interface | RS-485 MODBUS-RTU |
| Installation Position | Shaft Horizontal or Rotor on Bottom; Rotor on Top on Request |
| Weight | 28.4 kg |
Key Features
380-480 VAC Supply Range
The three-phase EC motor has a nominal voltage of 400 VAC and a documented operating voltage range of 380-480 VAC at 50/60 Hz.
3.0 kW Power Input
Manufacturer maximum-load data specifies 3000 W power input, 4.6 A current draw and 1520 RPM rotational speed.
EC Motor Control
The documented control functions include a 0-10 VDC or PWM control input and RS-485 MODBUS-RTU communication.
IP55 Protection
The technical description specifies IP55 protection, Class F insulation and ball bearings.
8760 m³/h Efficiency Point
Manufacturer ErP data specifies 8760 m³/h airflow and 704 Pa static pressure at the documented optimum-efficiency operating point.
Applications
- Industrial HVAC equipment
- Air handling systems
- Industrial ventilation systems
- Heat exchanger airflow
- Industrial equipment cooling
- Power electronics cooling
- Machinery air circulation
- Centrifugal fan system maintenance
Purchase Information
We support online purchase of the Ebmpapst R3G560-AH23-01 EC Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst R3G560-AH23-01?
It is a three-phase EC centrifugal fan with a backward-curved, single-inlet 560 mm impeller.
What voltage does R3G560-AH23-01 use?
The nominal voltage is 400 VAC with a documented voltage range of 380-480 VAC.
What frequency does R3G560-AH23-01 support?
The manufacturer specifies 50/60 Hz operation.
What is the power input?
Manufacturer maximum-load data specifies 3000 W.
What is the current draw?
The documented maximum-load current draw is 4.6 A.
What is the fan speed?
The documented maximum-load speed is 1520 RPM.
What is the fan size?
The manufacturer technical description specifies a size of 560 mm.
What airflow is documented?
Manufacturer ErP data specifies 8760 m³/h at the optimum-efficiency operating point with 704 Pa static pressure.
What is the protection rating?
The technical description specifies IP55 protection and Class F insulation.
What control interfaces are available?
Documented features include a 0-10 VDC or PWM control input and RS-485 MODBUS-RTU communication.
What materials are used?
The nine-blade impeller is sheet aluminum and the electronics housing is die-cast aluminum.
What should be checked before ordering R3G560-AH23-01?
Check the complete model number, 380-480 VAC three-phase supply, 50/60 Hz frequency, 560 mm size, electrical ratings, control interface, airflow and pressure requirements, electrical connection and mounting arrangement before purchasing.
