230 VAC Operation
Rated voltage of 230 VAC for direct connection to standard industrial power supplies.

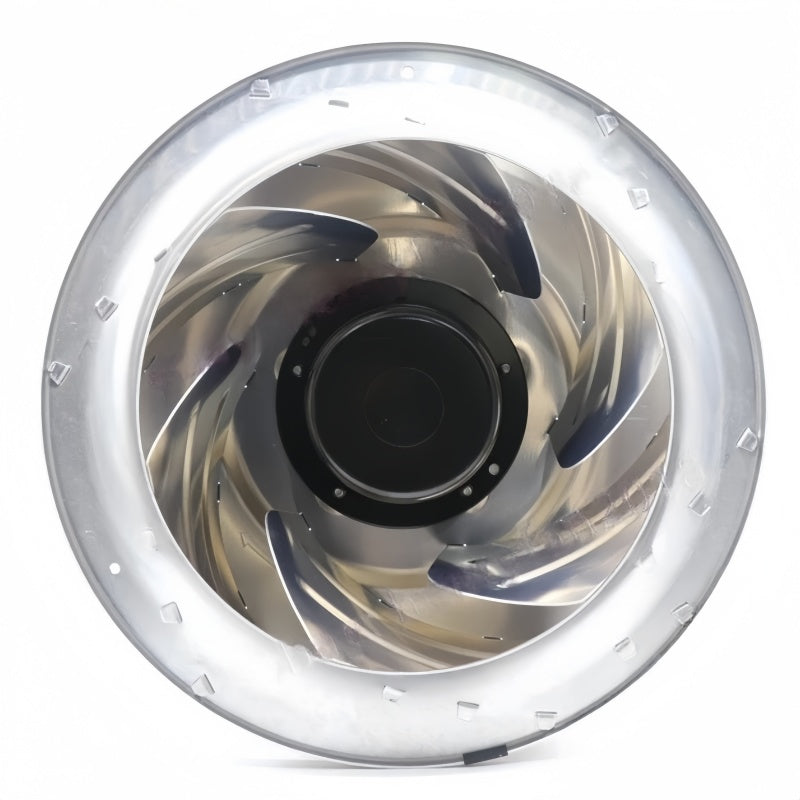

Ebmpapst R3G355-AM14-61 Centrifugal Fan 230VAC 195W
Available in stock (200)
Regular price
$380.35
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | R3G355-AM14-61 |
| Product Category | Centrifugal Fan |
| Fan Type | Centrifugal Fan |
| Rated Voltage | 230 VAC |
| Power Input | 195 W |
| Rated Frequency | 50/60 Hz |
| Speed | 2700 RPM |
| Air Flow | 2510 m³/h |
| Air Pressure | 670 Pa |
| Sound Pressure Level | 76 dB(A) |
| Diameter | 355 mm |
| Protection Rating | IP54 |
Key Features
195 W Power Input
Power consumption of 195 W for high-performance air movement applications.
2700 RPM Speed
Rated speed of 2700 RPM to deliver substantial airflow and pressure.
2510 m³/h Air Flow
High volumetric air flow of 2510 m³/h suitable for demanding ventilation and cooling tasks.
670 Pa Air Pressure
Static pressure of 670 Pa for effective air delivery against system resistance.
355 mm Diameter
Compact 355 mm diameter design for integration into industrial equipment and enclosures.
Applications
- Industrial equipment cooling
- Electrical cabinet ventilation
- HVAC systems
- Industrial machinery ventilation
- Control cabinet cooling
- Air handling units
- Factory ventilation systems
- Industrial air circulation
Purchase Information
We support online purchase of the Ebmpapst R3G355-AM14-61 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst R3G355-AM14-61?
The Ebmpapst R3G355-AM14-61 is a 230 VAC centrifugal fan with a 355 mm diameter, designed for industrial ventilation and cooling applications.
What type of fan is R3G355-AM14-61?
It is a centrifugal fan with a rated voltage of 230 VAC and a power input of 195 W.
What is the airflow of Ebmpapst R3G355-AM14-61?
The fan delivers an air flow of 2510 m³/h.
What is the speed of R3G355-AM14-61?
The rated speed is 2700 RPM.
What is the pressure rating?
The rated air pressure is 670 Pa.
What protection rating does R3G355-AM14-61 have?
The protection rating is IP54.
What is the operating temperature range?
The operating temperature range is -25°C to +70°C.
What is the sound level of this fan?
The sound pressure level is specified as 76 dB(A).
What applications can R3G355-AM14-61 be considered for?
It can be considered for industrial equipment cooling, electrical cabinet ventilation, HVAC systems, machinery ventilation, and air handling units.
What should be checked before ordering R3G355-AM14-61?
The complete catalog number, voltage, frequency, mounting dimensions, required airflow and pressure, electrical connections, and environmental conditions should be verified against the existing system requirements before purchasing.
Can R3G355-AM14-61 be used for replacement projects?
It can be considered for replacement or expansion projects after the catalog number, voltage, power, airflow, pressure, dimensions, and installation requirements have been checked against the existing installation.
