EC Backward Curved Centrifugal Fan
Uses electronically commutated motor technology in a backward curved centrifugal fan configuration.
1 / 1
Ebmpapst

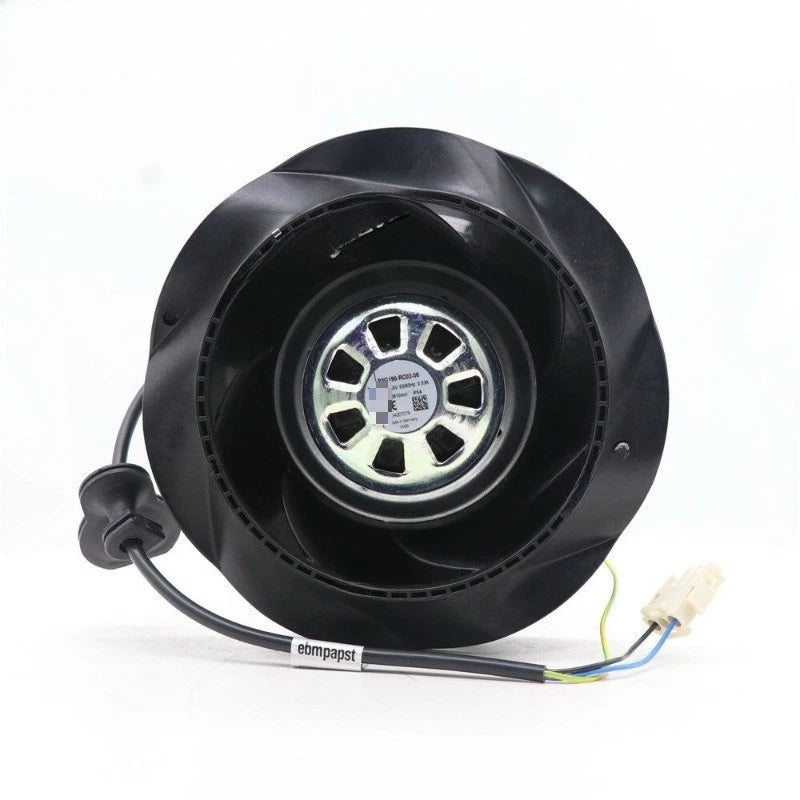

Ebmpapst R3G190-RC03-06 Centrifugal Fan 400V 190mm 100W
PRODUCT PRICE
USD
$340.56
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | R3G190-RC03-06 |
| Product Category | Centrifugal Fan |
| Fan Type | EC Centrifugal Fan, Backward Curved |
| Nominal Voltage | 230 VAC |
| Voltage Range | 200-240 VAC |
| Power Consumption | 60 W |
| Current | 0.53 A |
| Speed | 2810 rpm |
| Impeller Diameter | 190 mm |
| Max. Pressure | 340 Pa |
| Protection Rating | IP54 |
| Control Interface | 0-10 V / PWM / Modbus RTU (R3G platform) |
Key Features
230 VAC Nominal Voltage
Operates from a 230 VAC nominal supply with a documented 200-240 VAC range.
60 W Power / 2810 rpm
Published data identifies 60 W power consumption at 2810 rpm with a 190 mm impeller.
IP54 Protection
Rated IP54 for the intended industrial and enclosure cooling environment.
Integrated Control Electronics
The R3G platform supports control and monitoring functions through integrated EC electronics.
Compact 190 mm Impeller
The 190 mm impeller format is suited to space-constrained centrifugal fan installations.
Applications
- Control cabinet and enclosure cooling
- Industrial electronics thermal management
- HVAC and air handling equipment
- Heat pump and compact ventilation systems
- Panel building and switchgear airflow
- Telecom and data cabinet ventilation
- Process equipment requiring EC centrifugal airflow
- General industrial centrifugal fan duties with 190 mm impeller
Purchase Information
We support online purchase of the Ebmpapst R3G190-RC03-06 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst R3G190-RC03-06? It is an EC centrifugal fan with a backward curved impeller and a 190 mm impeller diameter.
What is the nominal voltage of the R3G190-RC03-06? The nominal voltage is 230 VAC, with a documented operating range of 200-240 VAC.
What is the power consumption and current? Published data identifies 60 W power consumption and 0.53 A current.
What is the fan speed? The documented speed is 2810 rpm.
What is the maximum pressure? The documented maximum pressure is 340 Pa.
What is the protection rating of the R3G190-RC03-06? The fan is rated IP54.
What control interface does the R3G190-RC03-06 support? The R3G platform is documented with 0-10 V, PWM and Modbus RTU control options; the specific interface for the ordered variant should be confirmed from the product label and documentation.
Can the R3G190-RC03-06 be used in control cabinet cooling? Its EC centrifugal design, 190 mm impeller and IP54 rating make it suitable for control cabinet and enclosure cooling when the air performance, voltage and control requirements are verified for the specific installation.
What should be checked before ordering the R3G190-RC03-06? Check the complete catalog number, 230 VAC supply, required air flow and static pressure, 190 mm impeller installation dimensions, IP54 suitability and the specific control interface required for the application.
Need help confirming a model?
Send us your part number and technical requirements.
