RadiCal EC Centrifugal Design
The R3G190-RB01-06 is an EC centrifugal fan with a backward-curved, single-inlet impeller for forced-air cooling and ventilation systems.

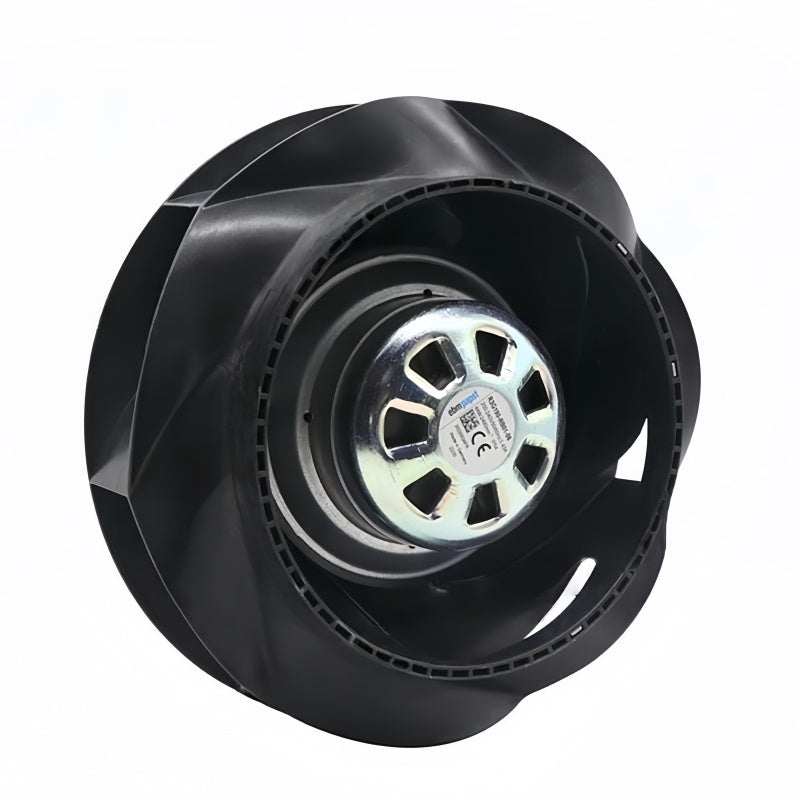

Ebmpapst R3G190-RB01-06 EC Centrifugal Fan 230VAC 190mm 44W
Available in stock (200)
Regular price
$189.43
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | R3G190-RB01-06 |
| Product Category | EC Centrifugal Fan |
| Series | R3G190 |
| Fan Type | EC Centrifugal Fan, Backward Curved, Single Inlet |
| Fan Diameter | 190 mm |
| Rated Voltage | 230 VAC |
| Frequency | 50 Hz |
| Power Input | 44 W at 350 m³/h and 200 Pa |
| Current Draw | 0.43 A at 350 m³/h and 200 Pa |
| Speed | 2490 RPM at 350 m³/h and 200 Pa |
| Maximum Air Flow | 585 m³/h at 230 VAC 50 Hz |
| Pressure Increase | Up to 260 Pa in Published Performance Data |
| Impeller Material | PA Plastic |
| Electronics Housing Material | Die-Cast Aluminum |
| Number of Blades | 7 |
| Degree of Protection | IP54 |
| Insulation Class | Class B |
| Bearing Type | Ball Bearing |
| Direction of Rotation | Clockwise, Viewed Toward Rotor |
| Installation Position | Any |
| Motor Protection | Electronic Motor Protection |
| Weight | Approx. 1 kg |
Key Features
230 VAC Operation
Published performance data specifies operation at 230 VAC and 50 Hz, with additional product data identifying the model for 50/60 Hz systems.
190 mm Fan Size
The documented fan size is 190 mm with a seven-blade PA plastic impeller.
585 m³/h Free-Air Performance
Manufacturer performance data records 585 m³/h airflow at zero pressure increase with a speed of 2635 RPM.
44 W Operating Point
At the documented 350 m³/h and 200 Pa operating point, the fan draws 44 W and 0.43 A at 2490 RPM.
IP54 Protection
Published technical information specifies IP54 protection, Class B insulation, ball bearings and electronic motor protection.
Applications
- Variable frequency drive cooling
- Industrial equipment cooling
- Electrical cabinet ventilation
- Control panel thermal management
- Power electronics cooling
- Industrial electronics ventilation
- Equipment air circulation
- Centrifugal fan system maintenance
Purchase Information
We support online purchase of the Ebmpapst R3G190-RB01-06 EC Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst R3G190-RB01-06?
It is a RadiCal EC centrifugal fan with a backward-curved, single-inlet impeller.
What voltage does R3G190-RB01-06 use?
Manufacturer performance data specifies 230 VAC.
What is the fan size?
The documented fan size is 190 mm.
What is the maximum airflow?
Manufacturer performance data records 585 m³/h at 230 VAC, 50 Hz and zero pressure increase.
What is the power input?
At the documented 350 m³/h and 200 Pa operating point, power input is 44 W.
What is the current draw?
At the documented 350 m³/h and 200 Pa operating point, current draw is 0.43 A.
What is the fan speed?
Manufacturer performance data records 2490 RPM at 350 m³/h and 200 Pa, and 2635 RPM at the free-air operating point.
What is the protection rating?
Published technical information specifies IP54 protection and Class B insulation.
What materials are used?
The impeller is documented as PA plastic, while the electronics housing is die-cast aluminum.
What bearing type is used?
The documented motor configuration uses ball bearings.
Can the fan be installed in different orientations?
Published technical information specifies any installation position.
What should be checked before ordering R3G190-RB01-06?
Check the complete model number, 230 VAC supply, electrical ratings, 190 mm size, required airflow and pressure operating point, connection and mounting requirements before purchasing.
