930 m³/h Airflow
Delivers 930 m³/h airflow with 860 Pa static pressure for high-impedance cooling paths.
1 / 1
Ebmpapst

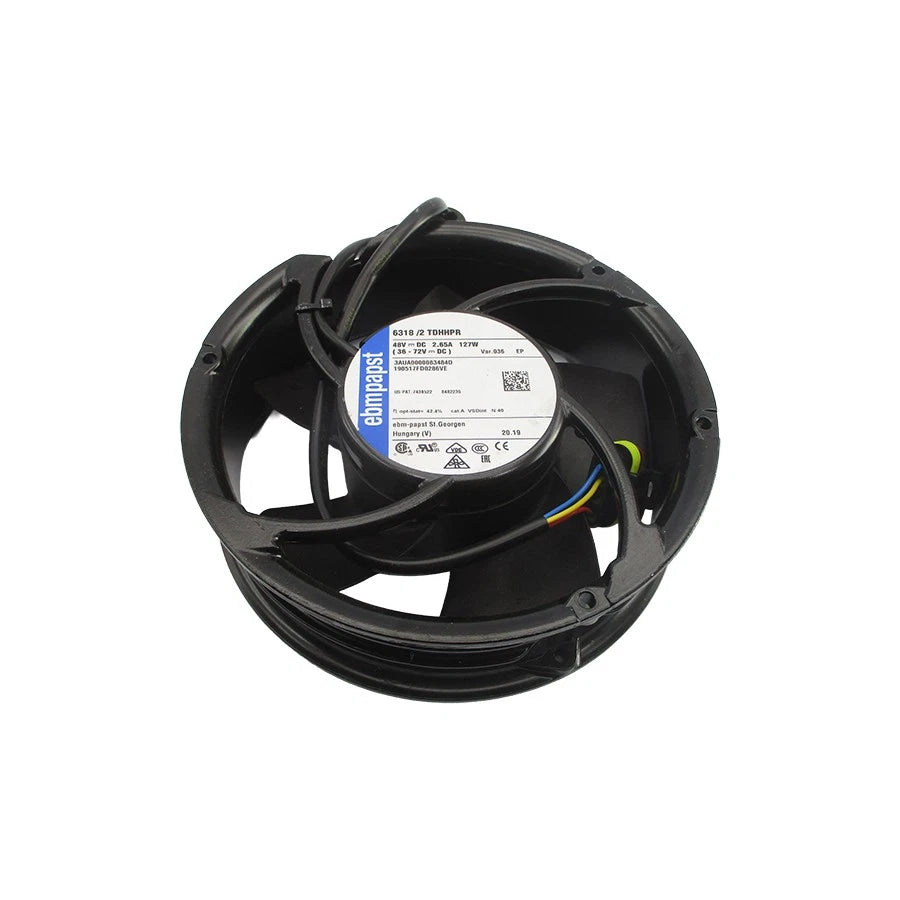

Ebmpapst 6318/2TDHHPR Axial Fan 48VDC 172x150x51mm 36W
PRODUCT PRICE
USD
$182.20
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 6318/2TDHHPR |
| Product Category | Axial Fan |
| Fan Type | DC Axial Fan |
| Rated Voltage | 48 VDC |
| Voltage Range | 36 to 72 VDC |
| Current | 2.65 A |
| Power Consumption | 127 W |
| Dimensions | 172 x 51 mm (round) |
| Airflow | 930 m³/h |
| Static Pressure | 860 Pa |
| Speed | 6700 RPM |
| Noise Level | 72 dBA |
Key Features
High Static Pressure
860 Pa maximum static pressure supports airflow through dense heat sinks and filters.
48 VDC / 127 W
Operates on 48 VDC with 127 W power consumption and 2.65 A current.
6700 RPM Speed
Rated speed of 6700 RPM for demanding thermal loads in industrial equipment.
Applications
- High-static-pressure cooling
- Inverter and drive thermal management
- Power electronics cooling
- Industrial enclosure ventilation
- Filtered air-path cooling
- High-density heat sink cooling
Purchase Information
We support online purchase of the Ebmpapst 6318/2TDHHPR Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 6318/2TDHHPR? It is a high-performance 48 VDC axial fan with a 172 mm round frame and 51 mm depth.
What is the airflow of the 6318/2TDHHPR? The airflow is 930 m³/h with 860 Pa static pressure.
What is the power consumption? The power consumption is 127 W at 2.65 A.
What is the speed? The rated speed is 6700 RPM.
What is the noise level? The noise level is 72 dBA.
Need help confirming a model?
Send us your part number and technical requirements.
