225 mm Centrifugal Fan
The R2E225-BE47-09 is an Ebmpapst AC centrifugal fan with a 225 mm backward-curved, single-inlet impeller configuration.

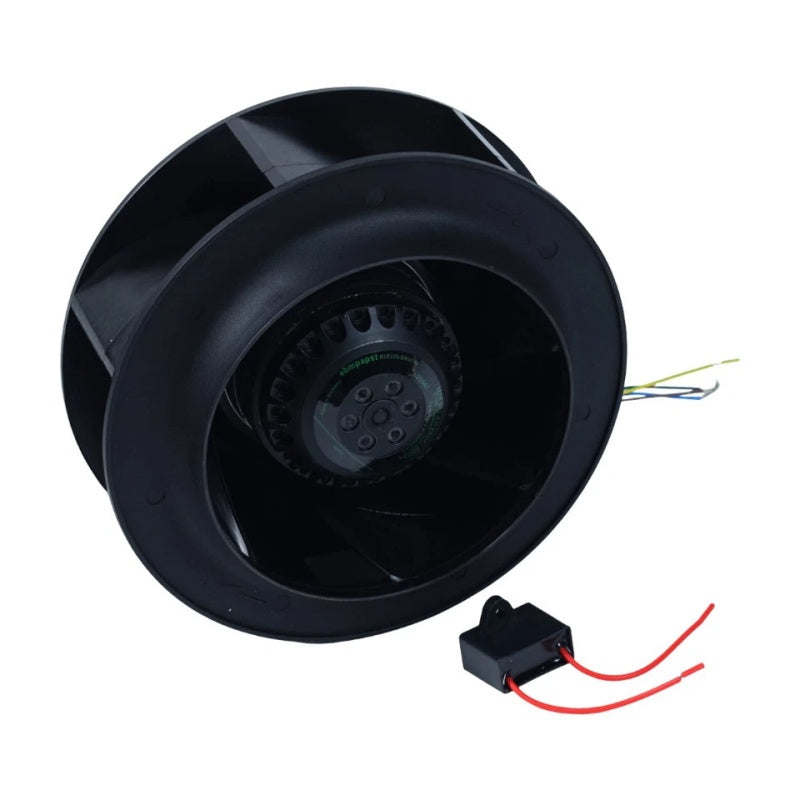

Ebmpapst R2E225-BE47-09 Fan 230 VAC 60 Hz 225 mm
Available in stock (200)
Regular price
$70.35
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | R2E225-BE47-09 |
| Product Category | Centrifugal Fan |
| Fan Type | AC Centrifugal Fan |
| Impeller Design | Backward-Curved, Single Inlet |
| Fan Size | 225 mm |
| Power Supply | 1-Phase |
| Nominal Voltage | 230 VAC |
| Frequency | 50/60 Hz |
| Power Input | 135 W at 50 Hz / 195 W at 60 Hz |
| Rated Current | 0.60 A at 50 Hz / 0.85 A at 60 Hz |
| Speed | 2450 RPM at 50 Hz / 2700 RPM at 60 Hz |
| Motor Technology | AC External Rotor Motor |
| Bearing Type | Ball Bearing |
| Impeller Material | Sheet Aluminum |
| Direction of Rotation | Clockwise, Viewed Toward Rotor |
Key Features
230 VAC Operation
The documented electrical configuration uses a single-phase 230 VAC supply and supports operation at both 50 Hz and 60 Hz.
Dual-Frequency Ratings
Documented input power is 135 W at 50 Hz and 195 W at 60 Hz, with corresponding current ratings of 0.60 A and 0.85 A.
2450/2700 RPM Speed
The documented rotational speed is 2450 RPM at 50 Hz and 2700 RPM at 60 Hz.
External Rotor Motor
The centrifugal impeller is integrated with a single-phase AC external rotor motor for compact industrial air-moving applications.
Backward-Curved Impeller
The fan uses a backward-curved sheet-aluminum impeller designed for centrifugal airflow in cooling and ventilation equipment.
Applications
- Industrial equipment cooling
- Electrical cabinet ventilation
- Control panel thermal management
- Power electronics cooling
- Industrial machinery cooling
- HVAC equipment
- Industrial ventilation systems
- Centrifugal fan system maintenance
Purchase Information
We support online purchase of the Ebmpapst R2E225-BE47-09 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst R2E225-BE47-09?
It is a single-phase AC centrifugal fan with a backward-curved, single-inlet impeller configuration.
What voltage does R2E225-BE47-09 use?
The documented nominal supply voltage is 230 VAC.
Does R2E225-BE47-09 support 50 Hz and 60 Hz?
Yes. Published technical data covers operation at both 50 Hz and 60 Hz.
What is the power input?
The documented power input is 135 W at 50 Hz and 195 W at 60 Hz.
What is the rated current?
The documented rated current is 0.60 A at 50 Hz and 0.85 A at 60 Hz.
What is the fan speed?
The documented speed is 2450 RPM at 50 Hz and 2700 RPM at 60 Hz.
What is the fan size?
The R2E225-BE47-09 has a nominal fan size of 225 mm.
What type of impeller does R2E225-BE47-09 use?
It uses a backward-curved, single-inlet centrifugal impeller.
What motor technology is used?
The fan uses a single-phase AC external rotor motor configuration.
What material is the impeller?
Published technical information identifies the impeller material as sheet aluminum.
Where can R2E225-BE47-09 be used?
Typical applications include industrial equipment cooling, electrical cabinet ventilation, power electronics cooling and HVAC equipment.
What should be checked before ordering R2E225-BE47-09?
Check the complete model number, 230 VAC supply, 50/60 Hz frequency, 225 mm fan size, electrical ratings, mounting arrangement and equipment requirements before purchasing.
