225 mm Centrifugal Design
The R2E225-BD92-19 is an AC centrifugal fan with a 225 mm backward-curved impeller and seven blades.
1 / 7
Ebmpapst

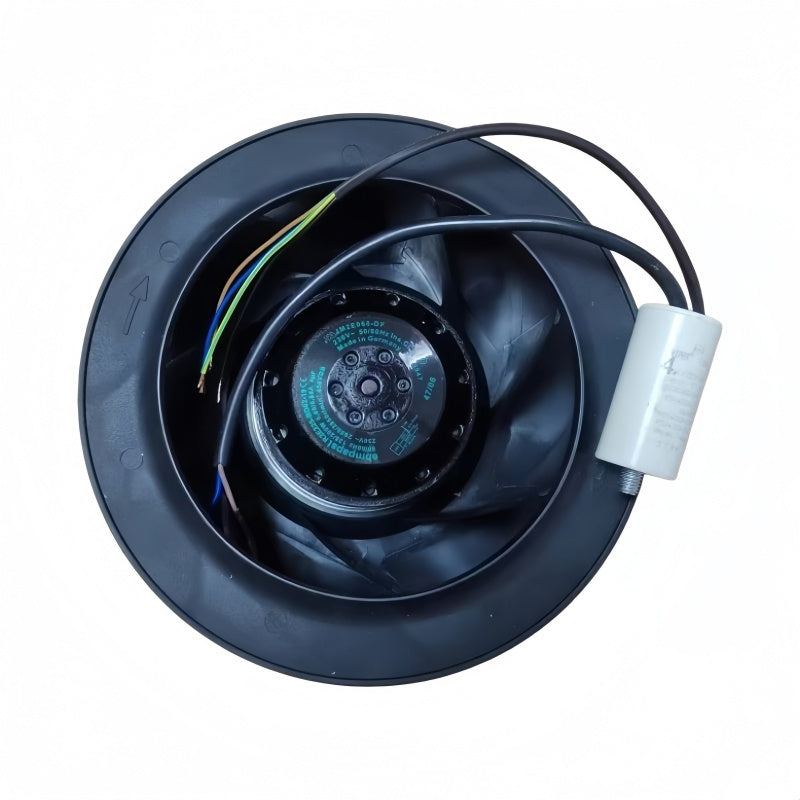

Ebmpapst R2E225-BD92-19 Centrifugal Fan 230VAC 225mm 135/200W
PRODUCT PRICE
USD
$94.27
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | R2E225-BD92-19 |
| Product Category | Centrifugal Fan |
| Series | R2E225 |
| Fan Type | AC Centrifugal Fan, Backward-Curved |
| Motor Model | M2E068-DF |
| Fan Size | 225 mm |
| Phase | 1-Phase |
| Rated Voltage | 230 VAC |
| Frequency | 50/60 Hz |
| Power Input | 135 W at 50 Hz / 200 W at 60 Hz |
| Current Draw | 0.60 A at 50 Hz / 0.88 A at 60 Hz |
| Speed | 2650 RPM at 50 Hz / 2950 RPM at 60 Hz |
| Capacitor | 4 µF / 450 VDB |
| Starting Current | 1.2 A |
| Impeller Material | PA6 Plastic, Glass-Fiber Reinforced |
| Number of Blades | 7 |
| Direction of Rotation | Clockwise, Viewed Toward Rotor |
| Degree of Protection | IP44 |
| Insulation Class | Class F |
| Bearing Type | Ball Bearing |
| Motor Protection | Thermal Overload Protector, Internally Connected |
| Operating Mode | S1 |
| Installation Position | Shaft Horizontal or Rotor on Bottom; Rotor on Top on Request |
| Weight | 2.3 kg |
Key Features
230 VAC Operation
The single-phase motor is rated for 230 VAC operation with manufacturer nominal data for both 50 Hz and 60 Hz.
135/200 W Power Input
The documented power input is 135 W at 50 Hz and 200 W at 60 Hz.
2650/2950 RPM Speed
The documented free-air speed is 2650 RPM at 50 Hz and 2950 RPM at 60 Hz.
PA6 Impeller
The seven-blade impeller is made from glass-fiber reinforced PA6 plastic and rotates clockwise when viewed toward the rotor.
IP44 Protection
The documented configuration specifies IP44 protection, Class F insulation, ball bearings and an internally connected thermal overload protector.
Applications
- Industrial equipment cooling
- Electrical cabinet ventilation
- Control panel thermal management
- Power electronics cooling
- HVAC equipment
- Industrial ventilation systems
- Machinery air circulation
- Centrifugal fan system maintenance
Purchase Information
We support online purchase of the Ebmpapst R2E225-BD92-19 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst R2E225-BD92-19?
It is a single-phase AC centrifugal fan with a 225 mm backward-curved impeller.
What voltage does R2E225-BD92-19 use?
The manufacturer nominal data specifies 230 VAC.
What frequency does R2E225-BD92-19 support?
The manufacturer provides nominal ratings for 50 Hz and 60 Hz.
What is the power input?
The documented power input is 135 W at 50 Hz and 200 W at 60 Hz.
What is the current draw?
The documented current draw is 0.60 A at 50 Hz and 0.88 A at 60 Hz.
What is the fan speed?
The documented free-air speed is 2650 RPM at 50 Hz and 2950 RPM at 60 Hz.
What is the fan size?
The manufacturer technical description specifies a fan size of 225 mm.
What capacitor is specified?
The manufacturer specifies a 4 µF capacitor rated at 450 VDB.
What is the protection rating?
The documented protection rating is IP44 with Class F insulation.
What material is the impeller?
The seven-blade impeller is made from glass-fiber reinforced PA6 plastic.
What motor is used?
The manufacturer datasheet identifies the motor as M2E068-DF.
What should be checked before ordering R2E225-BD92-19?
Check the complete model number, 230 VAC single-phase supply, 50/60 Hz frequency, 225 mm fan size, electrical ratings, capacitor, airflow requirements and mounting arrangement before purchasing.
Need help confirming a model?
Send us your part number and technical requirements.
