230 VAC Centrifugal Fan
Operates from a 230 VAC supply for industrial AC-powered centrifugal fan applications.
1 / 3
Ebmpapst

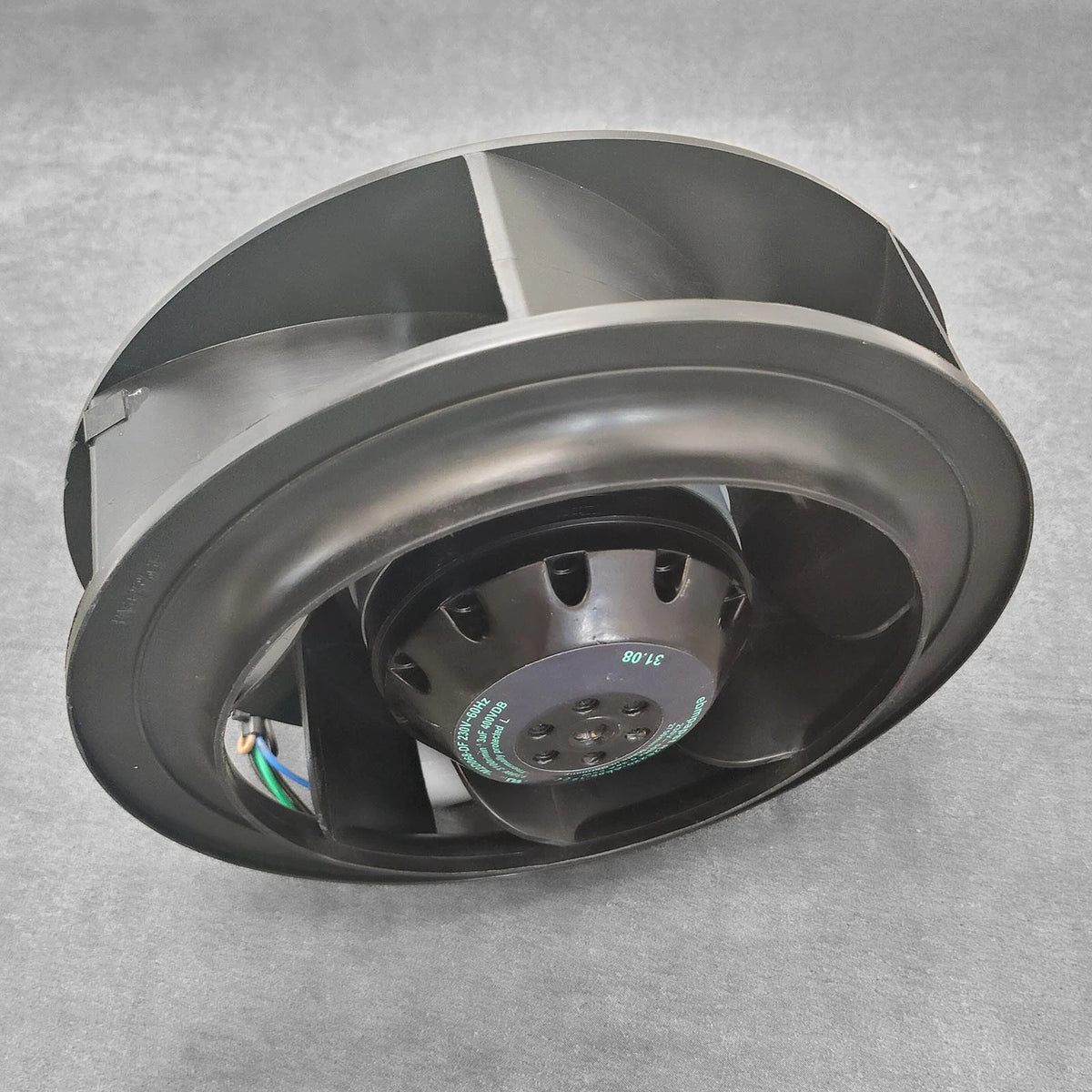

Ebmpapst R2E220-AE86-12 Centrifugal Fan 230V 220mm 95W
PRODUCT PRICE
USD
$281.78
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | R2E220-AE86-12 |
| Product Category | Centrifugal Fan |
| Fan Type | AC Centrifugal Fan, Single Inlet |
| Nominal Voltage | 230 VAC |
| Power Consumption | 107 W |
| Air Flow | 990 m³/h |
| Speed | 3050 rpm |
| Impeller Diameter | 220 mm |
| Dimensions | 220 x 71 mm |
| Bearing Type | Ball Bearing |
Key Features
990 m³/h Air Flow
Published data identifies 990 m³/h air flow for the R2E220-AE86-12 configuration.
3050 rpm Speed
The fan is documented with a speed of 3050 rpm.
220 mm Impeller
Uses a 220 mm impeller in a 220 x 71 mm overall fan format.
Ball Bearing Construction
Equipped with ball bearings for the intended mounting position and continuous operation.
Single-Inlet Centrifugal Design
Single-inlet centrifugal configuration for directed air movement in equipment ventilation.
Applications
- Industrial ventilation and air handling
- Equipment cooling in control cabinets
- HVAC centrifugal blower applications
- Heat exchangers and thermal management systems
- Process equipment requiring high air flow
- Panel and enclosure climate control
- General industrial centrifugal fan duties
- Air circulation in machinery with 230 VAC supply
Purchase Information
We support online purchase of the Ebmpapst R2E220-AE86-12 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst R2E220-AE86-12? It is an AC centrifugal fan from the R2E220 series with a 220 mm impeller.
What is the nominal voltage of the R2E220-AE86-12? The nominal voltage is 230 VAC.
What is the air flow of the R2E220-AE86-12? Published data identifies 990 m³/h air flow.
What is the fan speed? The documented speed is 3050 rpm.
What is the power consumption? Published data identifies 107 W power consumption for this configuration.
What is the impeller diameter and overall size? The impeller diameter is 220 mm, with overall dimensions of 220 x 71 mm.
What bearing type does the R2E220-AE86-12 use? The fan uses ball bearings.
Can the R2E220-AE86-12 be used in equipment cooling? Its 990 m³/h air flow and 220 mm centrifugal impeller make it suitable for equipment cooling when the air performance, 230 VAC supply and installation dimensions are verified for the specific application.
What should be checked before ordering the R2E220-AE86-12? Check the complete catalog number, 230 VAC supply, required air flow and static pressure, 220 x 71 mm installation space, and the intended operating point against the fan curve.
Need help confirming a model?
Send us your part number and technical requirements.
