220 mm Centrifugal Fan
The R2E220-AD19-11 is an Ebmpapst AC centrifugal fan with a 220 mm backward-curved, single-inlet impeller configuration.

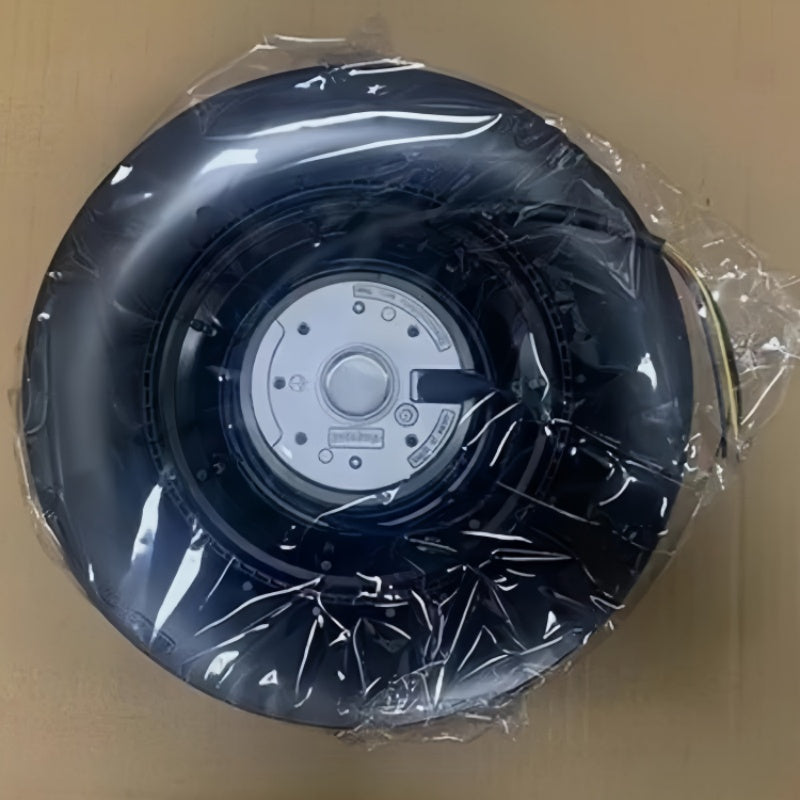

Ebmpapst R2E220-AD19-11 Fan 415 VAC 100 W 2750 RPM
Available in stock (200)
Regular price
$184.26
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | R2E220-AD19-11 |
| Product Category | Centrifugal Fan |
| Series | R2E220 |
| Fan Type | AC Centrifugal Fan |
| Impeller Design | Backward-Curved, Single Inlet |
| Motor Model | M2E068-CA |
| Fan Size | 220 mm |
| Nominal Voltage | 415 VAC |
| Frequency | 50/60 Hz |
| Power Input | 88 W at 50 Hz / 100 W at 60 Hz |
| Current Draw | 0.22 A at 50 Hz / 0.25 A at 60 Hz |
| Speed | 2570 RPM at 50 Hz / 2750 RPM at 60 Hz |
| Motor Capacitor | 0.68 µF |
| Capacitor Voltage | 700 VDB |
| Degree of Protection | IP44 |
| Insulation Class | Class F |
| Impeller Material | PA6 Plastic, Fiberglass-Reinforced |
| Number of Blades | 11 |
| Motor Bearing | Ball Bearing |
| Motor Protection | Thermal Overload Protector |
| Direction of Rotation | Clockwise, Viewed Toward Rotor |
| Weight | 1.6 kg |
Key Features
415 VAC Operation
The documented nominal supply voltage is 415 VAC, with operating data provided for both 50 Hz and 60 Hz.
Dual-Frequency Ratings
Documented input power is 88 W at 50 Hz and 100 W at 60 Hz, with current draw of 0.22 A and 0.25 A respectively.
2570/2750 RPM Speed
The documented rotational speed is 2570 RPM at 50 Hz and 2750 RPM at 60 Hz.
IP44 Protection
The fan is documented with IP44 protection, Class F insulation and an internally wired thermal overload protector.
Reinforced PA6 Impeller
The 11-blade backward-curved impeller is manufactured from fiberglass-reinforced PA6 plastic and uses a ball-bearing motor configuration.
Applications
- Industrial equipment cooling
- Electrical cabinet ventilation
- Control panel thermal management
- Power electronics cooling
- Industrial machinery ventilation
- HVAC equipment
- Industrial air circulation
- Centrifugal fan system maintenance
Purchase Information
We support online purchase of the Ebmpapst R2E220-AD19-11 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst R2E220-AD19-11?
It is an AC centrifugal fan with a backward-curved, single-inlet impeller configuration.
What voltage does R2E220-AD19-11 use?
The documented nominal supply voltage is 415 VAC.
Does R2E220-AD19-11 support 50 Hz and 60 Hz?
Yes. The technical data provides operating ratings for both 50 Hz and 60 Hz.
What is the power input?
The documented power input is 88 W at 50 Hz and 100 W at 60 Hz.
What is the current draw?
The documented current draw is 0.22 A at 50 Hz and 0.25 A at 60 Hz.
What is the fan speed?
The documented speed is 2570 RPM at 50 Hz and 2750 RPM at 60 Hz.
What is the fan size?
The documented nominal size is 220 mm.
What motor is used?
The exact-model technical data identifies the motor as M2E068-CA.
What is the protection rating?
The R2E220-AD19-11 is documented with an IP44 degree of protection.
What material is the impeller?
The impeller is documented as fiberglass-reinforced PA6 plastic and has 11 blades.
What is the operating ambient temperature?
The documented ambient temperature range is -25°C to +55°C.
What should be checked before ordering R2E220-AD19-11?
Check the complete model number, 415 VAC supply, 50/60 Hz frequency, 220 mm size, electrical ratings, mounting position and equipment requirements before purchasing.
