High Airflow Backward-Curved Design
The R2E220-AA40-A8 delivers 895 m³/h airflow at 2700 rpm with an 11-blade backward-curved impeller, combining airflow capacity with pressure development up to 220 Pa.
1 / 2
Ebmpapst

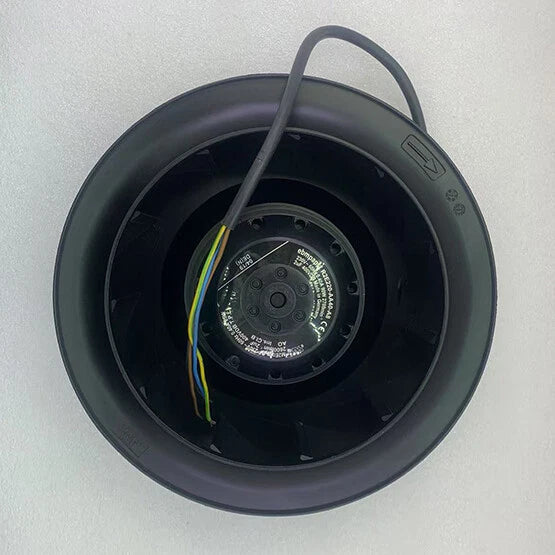

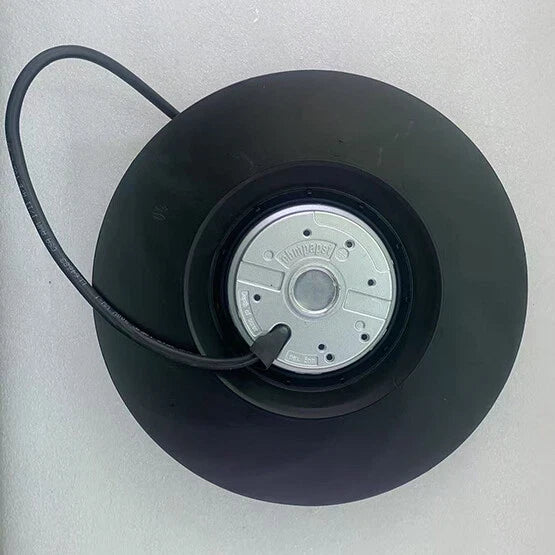

Ebmpapst R2E220-AA40-A8 Centrifugal Fan 230V 220mm 85W
PRODUCT PRICE
USD
$208.00
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | R2E220-AA40-A8 |
| Product Category | Centrifugal Fan |
| Product Type | Backward Curved Fan |
| Motor Type | AC |
| Nominal Voltage | 230 VAC |
| Frequency | 50/60 Hz |
| Power Consumption | 90 W |
| Current Draw | 0.4 A |
| Starting Current | 0.52 A |
| Speed | 2700 rpm |
| Fan Diameter | 220 mm |
| Air Flow | 895 m³/h |
| Static Pressure | 220 Pa |
| Bearing Type | Ball bearing |
| Number of Blades | 11 |
| Protection Rating | IP44 |
| Insulation Class | F |
| Min. Ambient Temperature | -25 °C |
| Max. Ambient Temperature | 55 °C |
Key Features
90 W AC Motor
A 230 VAC motor draws 90 W at 0.4 A nominal current, with a starting current of 0.52 A documented for the operating condition.
IP44 Protection
The fan is rated IP44, providing protection against solid objects larger than 1 mm and water splashing from any direction, suitable for many industrial enclosure applications.
Ball Bearing Construction
Ball bearings are specified for the R2E220-AA40-A8, supporting the 2700 rpm operating speed within the documented ambient range.
Class F Insulation
The motor uses Class F insulation, and the fan is rated for ambient temperatures from -25 °C to 55 °C.
Applications
- Industrial ventilation systems
- Heat exchanger airflow
- Control panel cooling
- Air conditioning equipment
- Process cooling assemblies
- OEM centrifugal fan replacement
- HVAC air movement
Purchase Information
We support online purchase of the Ebmpapst R2E220-AA40-A8 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst R2E220-AA40-A8? It is a backward-curved centrifugal fan with a 220 mm fan diameter, operating on 230 VAC.
What is the airflow of the R2E220-AA40-A8? The fan delivers 895 m³/h at its rated operating point.
What static pressure can the R2E220-AA40-A8 develop? Documented static pressure is 220 Pa.
What power does the R2E220-AA40-A8 consume? Electrical power consumption is 90 W.
What is the current draw of the R2E220-AA40-A8? Nominal current draw is 0.4 A, with a starting current of 0.52 A.
What is the speed of the R2E220-AA40-A8? Rated speed is 2700 rpm at 230 V / 60 Hz.
What is the protection rating of the R2E220-AA40-A8? The fan is rated IP44.
What bearing type does the R2E220-AA40-A8 use? Ball bearings are specified.
What is the ambient temperature range of the R2E220-AA40-A8? The documented range is -25 °C to 55 °C.
What should be verified before ordering the R2E220-AA40-A8? Check the complete model number, 230 VAC supply, required airflow and static pressure against the system curve, IP44 suitability, and ambient temperature limits.
