190 mm Centrifugal Fan

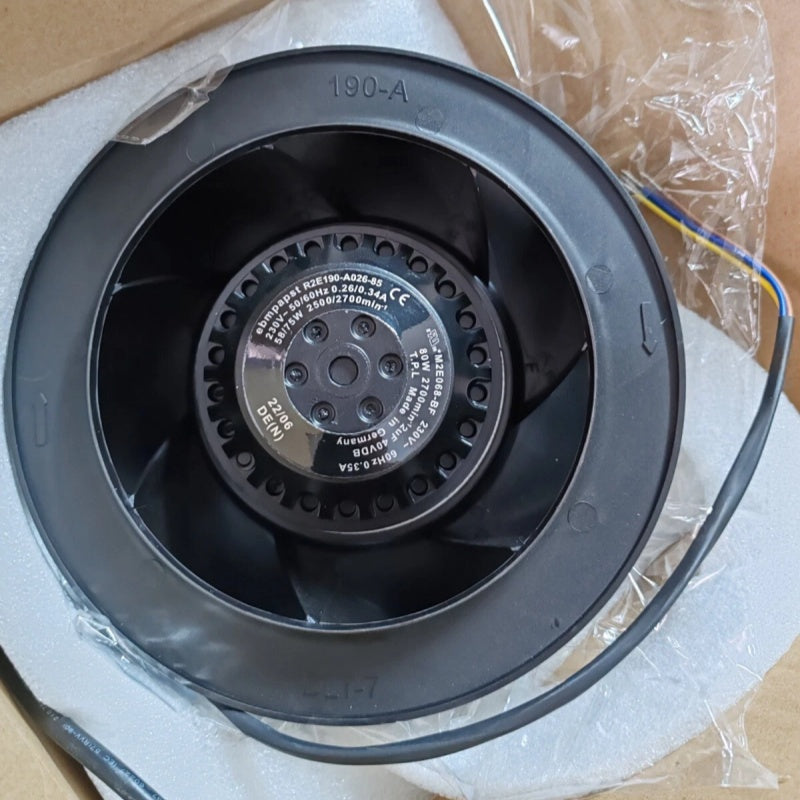

The R2E190-AO26-85 is an Ebmpapst AC centrifugal fan with a 190 mm backward-curved motorized impeller.
Ebmpapst R2E190-AO26-85 Fan 230 V 50/60 Hz 190 mm
Available in stock (200)
Regular price
$110.38
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | R2E190-AO26-85 |
| Product Category | Centrifugal Fan |
| Fan Type | AC Centrifugal Fan |
| Impeller Design | Backward-Curved Motorized Impeller |
| Motor Model | M2E068-BF |
| Fan Size | 190 mm |
| Power Supply | 1-Phase |
| Nominal Voltage | 230 VAC |
| Frequency | 50/60 Hz |
| Power Input | 58 W at 50 Hz / 75 W at 60 Hz |
| Rated Current | 0.26 A at 50 Hz / 0.34 A at 60 Hz |
| Speed | 2500 RPM at 50 Hz / 2700 RPM at 60 Hz |
| Maximum Pressure | 300 Pa |
| Capacitor | 2.0 µF / 400 VDB |
| Bearing Type | Ball Bearing |
| Degree of Protection | IP44 |
| Insulation Class | Class B |
| Number of Blades | 7 |
| Direction of Rotation | Clockwise, Viewed Toward Rotor |
Key Features
230 VAC Operation
The documented configuration uses a single-phase 230 VAC supply and supports operation at both 50 Hz and 60 Hz.
Dual-Frequency Ratings
Power input is documented at 58 W for 50 Hz and 75 W for 60 Hz, with corresponding current values of 0.26 A and 0.34 A.
2500/2700 RPM Speed
The documented rotational speed is 2500 RPM at 50 Hz and 2700 RPM at 60 Hz.
Air Performance
Published exact-model data lists maximum airflow of 620 m³/h and maximum pressure of 300 Pa.
M2E068-BF Motor
The exact configuration is documented with an M2E068-BF motor, ball bearings and a 2.0 µF / 400 VDB capacitor.
Applications
- Control panel cooling
- Electrical cabinet ventilation
- Industrial equipment cooling
- Power electronics cooling
- Industrial machinery ventilation
- HVAC equipment
- Industrial air circulation
- Centrifugal fan system maintenance
Purchase Information
We support online purchase of the Ebmpapst R2E190-AO26-85 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst R2E190-AO26-85?
It is a single-phase AC centrifugal fan with a backward-curved motorized impeller.
What voltage does R2E190-AO26-85 use?
The documented nominal voltage is 230 VAC.
Does R2E190-AO26-85 support 50 Hz and 60 Hz?
Yes. Technical data specifies operation at both 50 Hz and 60 Hz.
What is the power input?
The documented power input is 58 W at 50 Hz and 75 W at 60 Hz.
What is the rated current?
The documented current is 0.26 A at 50 Hz and 0.34 A at 60 Hz.
What is the fan speed?
The documented speed is 2500 RPM at 50 Hz and 2700 RPM at 60 Hz.
What is the fan size?
Published exact-model data identifies a nominal fan size of 190 mm.
What is the maximum airflow?
Published exact-model data lists a maximum airflow of 620 m³/h.
What is the maximum pressure?
Published exact-model data lists a maximum pressure of 300 Pa.
What is the protection rating?
Technical data identifies an IP44 degree of protection.
What motor is used?
The documented motor designation is M2E068-BF.
What should be checked before ordering R2E190-AO26-85?
Check the complete model number, 230 VAC supply, 50/60 Hz frequency, 190 mm fan size, electrical ratings, airflow requirements and mounting arrangement before purchasing.
