230 VAC Centrifugal Blower
AC centrifugal fan rated for 230 VAC operation with a 170 mm frame and 72 mm depth.
1 / 1
Ebmpapst

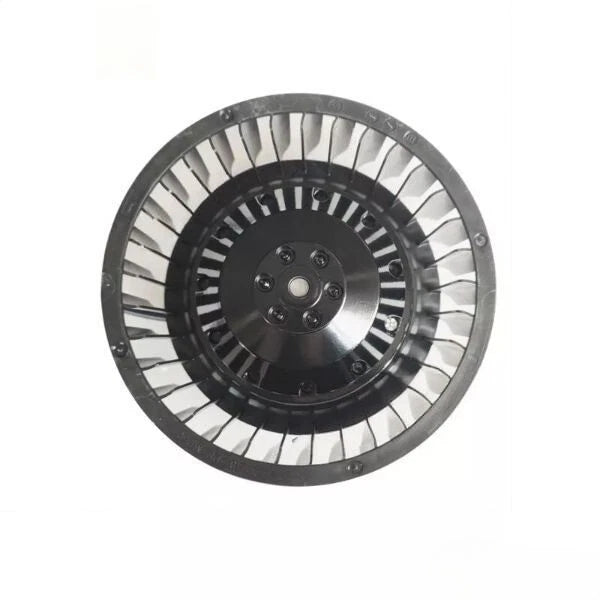

Ebmpapst R2E140-AS77-05 Centrifugal Fan 230V 140mm
PRODUCT PRICE
USD
$280.80
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | R2E140-AS77-05 |
| Product Category | Centrifugal Fan |
| Blower Type | Centrifugal |
| Supply Voltage | 230 VAC |
| Voltage Type | AC |
| Fan Frame Size | 170 mm |
| External Depth | 72 mm |
| Air Flow | 365.28 m³/h (215 CFM) |
| Power Rating | 110 W |
| Speed | 1400 RPM |
| Bearing Type | Ball Bearing |
| Power Connection Type | 4 Lead Wires |
| IP Rating | IP44 |
| Impeller Material | PP-TV40 Plastic |
| Motor Protection | Thermal Overload Protector (TOP) |
| Insulation Class | Class B |
| Permissible Ambient Motor Temperature | -40 °C to +80 °C |
Key Features
110 W Power Rating
Documented power rating of 110 W at 1400 RPM.
365.28 m³/h Airflow
Delivers 365.28 m³/h (215 CFM) airflow.
IP44 Protection
Rated IP44 for protection against limited dust ingress and water splashes.
Thermal Overload Protector
Includes an internally wired thermal overload protector (TOP) for motor protection.
Ball Bearing and 4 Lead Wires
Ball bearing construction with 4 lead wires for electrical connection.
Applications
- HVAC air handling systems
- Control cabinet ventilation
- Industrial cooling applications
- Air circulation in equipment enclosures
- Process cooling
- Centrifugal blower installations
- Thermal management of electrical panels
- AC fan replacement projects
Purchase Information
We support online purchase of the Ebmpapst R2E140-AS77-05 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst R2E140-AS77-05? It is an AC centrifugal fan with a forward curved impeller.
What is the supply voltage? The supply voltage is 230 VAC.
What is the power rating? The documented power rating is 110 W.
What airflow does it provide? The airflow is 365.28 m³/h (215 CFM).
What is the speed? The documented speed is 1400 RPM.
What is the IP rating? The IP rating is IP44.
What bearing type does it use? It uses a ball bearing.
How is it connected? It is connected via 4 lead wires.
Does it have motor protection? Yes, it includes a thermal overload protector (TOP) wired internally.
What is the permissible ambient motor temperature range? The documented range is -40 °C to +80 °C.
Need help confirming a model?
Send us your part number and technical requirements.
