120 mm Centrifugal Design
The R2E120-AO16-09 is an AC centrifugal fan with a 120 mm backward-curved, single-inlet impeller configuration.
1 / 7
Ebmpapst

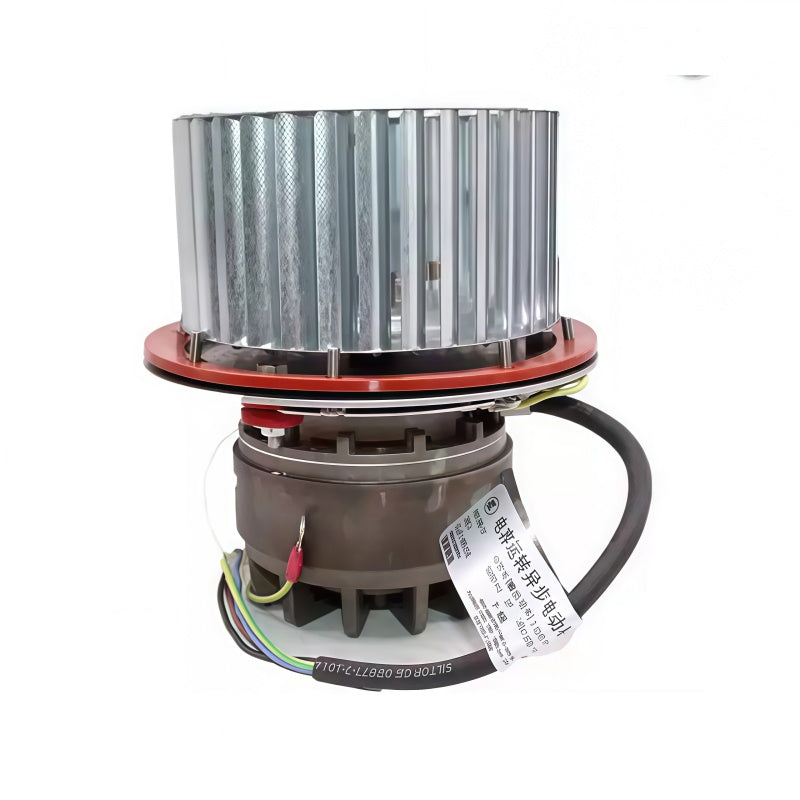

Ebmpapst R2E120-AO16-09 Centrifugal Fan 230VAC 120mm 87/112W
PRODUCT PRICE
USD
$368.14
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | R2E120-AO16-09 |
| Product Category | Centrifugal Fan |
| Series | R2E120 |
| Fan Type | AC Centrifugal Fan, Backward-Curved, Single-Inlet |
| Fan Size | 120 mm |
| Phase | 1-Phase |
| Rated Voltage | 230 VAC |
| Frequency | 50/60 Hz |
| Power Input | 28 W at 50 Hz / 34 W at 60 Hz |
| Speed | 2550 RPM at 50 Hz / 2800 RPM at 60 Hz |
| Impeller Design | Backward-Curved |
| Air Intake | Single Inlet |
| Bearing Type | Ball Bearing |
Key Features
230 VAC Operation
The documented electrical configuration uses a single-phase 230 VAC supply with ratings for 50 Hz and 60 Hz operation.
28/34 W Power Input
Published product data specifies 28 W power input at 50 Hz and 34 W at 60 Hz.
2550/2800 RPM Speed
The documented rotational speed is 2550 RPM at 50 Hz and 2800 RPM at 60 Hz.
Backward-Curved Impeller
The centrifugal configuration uses a backward-curved impeller to move air through compatible cooling and ventilation systems.
Ball Bearing Motor
The documented fan configuration uses ball bearings for the motorized impeller assembly.
Applications
- Industrial equipment cooling
- Electrical cabinet ventilation
- Control panel thermal management
- Power electronics cooling
- Industrial machinery ventilation
- HVAC equipment
- Equipment air circulation
- Centrifugal fan system maintenance
Purchase Information
We support online purchase of the Ebmpapst R2E120-AO16-09 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst R2E120-AO16-09?
It is a single-phase AC centrifugal fan with a backward-curved, single-inlet impeller.
What voltage does R2E120-AO16-09 use?
Published product data specifies 230 VAC.
What frequency does R2E120-AO16-09 support?
The documented operating frequencies are 50 Hz and 60 Hz.
What is the power input?
The documented power input is 28 W at 50 Hz and 34 W at 60 Hz.
What is the fan speed?
Published product data specifies 2550 RPM at 50 Hz and 2800 RPM at 60 Hz.
What is the fan size?
The documented nominal fan size is 120 mm.
What type of fan is R2E120-AO16-09?
It is an AC centrifugal fan with a backward-curved, single-inlet impeller configuration.
What bearing type is used?
The documented fan configuration uses ball bearings.
Where can R2E120-AO16-09 be used?
Typical applications include industrial equipment, electrical enclosures, power electronics and machinery requiring centrifugal forced-air cooling.
What should be checked before ordering R2E120-AO16-09?
Check the complete model number, 230 VAC single-phase supply, 50/60 Hz frequency, 120 mm fan size, electrical ratings, airflow requirements, electrical connection and mounting arrangement before purchasing.
