400 VAC Three-Phase
Operates on 400 VAC three-phase supply at 50 Hz for industrial centrifugal fan installations.
1 / 2
Ebmpapst

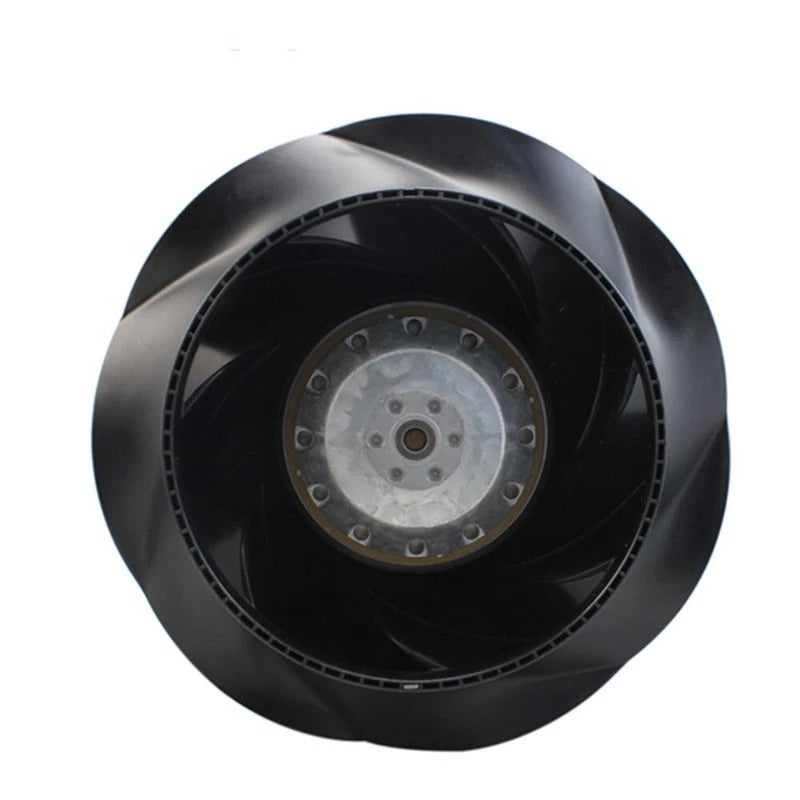

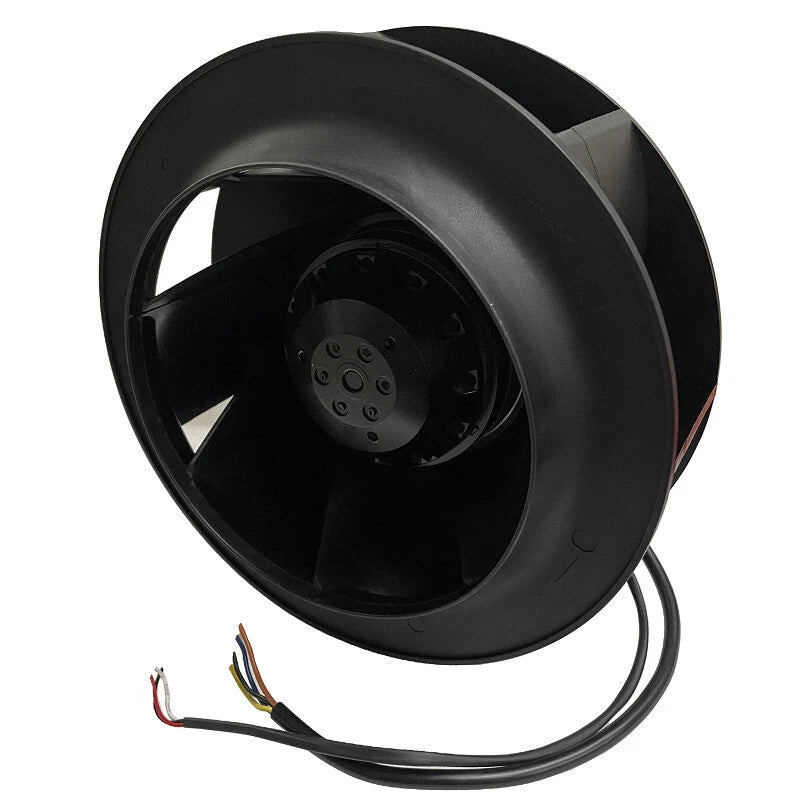

Ebmpapst R2D225-RA26-01 Centrifugal Fan 400VAC 225mm 125W
PRODUCT PRICE
USD
$564.60
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | R2D225-RA26-01 |
| Product Category | Centrifugal Fan |
| Fan Type | AC Centrifugal Fan |
| Rated Voltage | 400 VAC |
| Phase | 3~ |
| Frequency | 50 Hz |
| Power Consumption | 150 W |
| Current Draw | 0.27 A |
| Speed | 2530 RPM |
| Impeller Diameter | 225 mm |
| Airflow | 705 m³/h |
| Protection Rating | IP44 |
| Bearing Type | Ball Bearing |
| Operating Temperature | -25 to +80 °C |
Key Features
225 mm Impeller
Backward-curved 225 mm impeller delivers 705 m³/h airflow.
IP44 Protection
IP44 protection rating for increased resistance to dust and water ingress in industrial environments.
2530 RPM Speed
Rated speed of 2530 RPM with 150 W power consumption and 0.27 A current draw.
Wide Temperature Range
Operating temperature range of -25 to +80 °C supports use in varied thermal conditions.
Applications
- Inverter and drive cooling
- Industrial ventilation
- Control cabinet air movement
- Heat exchanger cooling
- HVAC centrifugal air handling
- Power electronics thermal management
- Filtered air-path systems
Purchase Information
We support online purchase of the Ebmpapst R2D225-RA26-01 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst R2D225-RA26-01? It is a three-phase AC centrifugal fan with a 225 mm impeller and 400 VAC rated voltage.
What is the airflow of the R2D225-RA26-01? The airflow is 705 m³/h at 2530 RPM.
What is the power consumption? The power consumption is 150 W at 0.27 A.
What is the protection rating? The protection rating is IP44.
What is the operating temperature range? The range is -25 to +80 °C.
Need help confirming a model?
Send us your part number and technical requirements.
