400/480 VAC Operation
The R2D225-AT26-15 operates on a 400 VAC or 480 VAC AC supply.
1 / 1
Ebmpapst

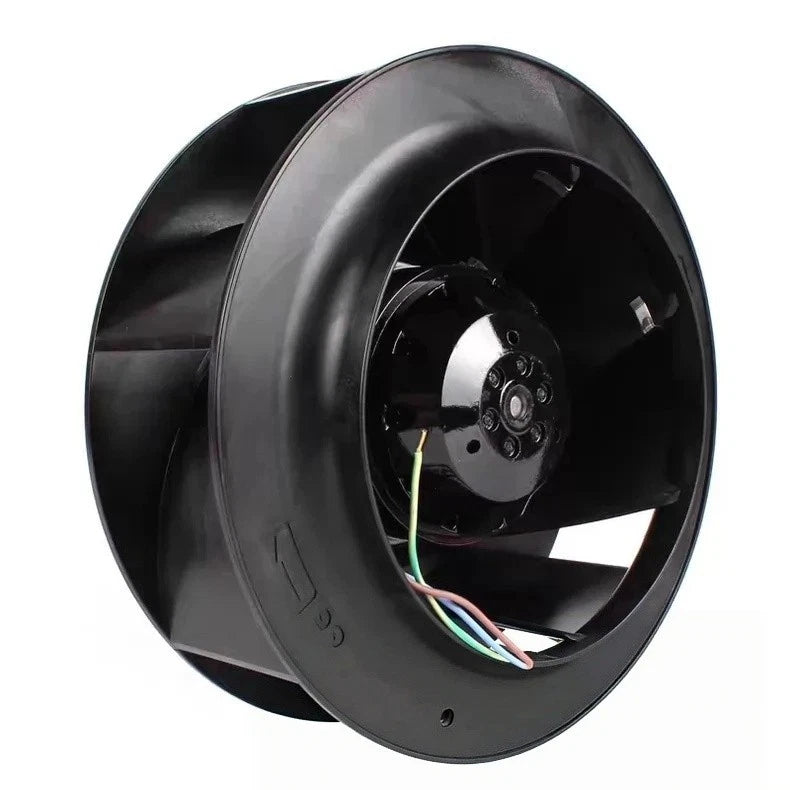

Ebmpapst R2D225-AT26-15 Centrifugal Fan 400V 225mm
PRODUCT PRICE
USD
$251.55
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | R2D225-AT26-15 |
| Product Category | Centrifugal Fan |
| Series | R2D225 |
| Supply Voltage | 400 / 480 VAC |
| AC or DC Operation | AC |
| Airflow | 705 m³/h |
| Fan Speed | 2900 RPM |
| Maximum Current | 0.33 A |
| Bearing Type | Ball Bearing |
| Terminal Type | Wire |
| IP Rating | IP44 |
| Standards | IEC 60990, ISO 5801, EN 60335-1, ISO 13347, CE |
Key Features
705 m³/h Airflow
Documented airflow of 705 m³/h at a fan speed of 2900 RPM.
IP44 Protection
Rated IP44 for protection against limited dust ingress and water splashes.
Ball Bearing
Equipped with a ball bearing construction as documented in the specifications.
Wire Termination
Electrical connection via wire terminals.
Maximum Current 0.33 A
The documented maximum current rating is 0.33 A.
Applications
- Control cabinet cooling
- Industrial enclosure ventilation
- HVAC air handling
- Drive and inverter cooling
- Equipment thermal management
- Process air circulation
- Electrical panel thermal protection
- AC centrifugal blower applications
Purchase Information
We support online purchase of the Ebmpapst R2D225-AT26-15 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst R2D225-AT26-15? It is an AC centrifugal fan from the R2D225 series.
What is the supply voltage? The documented supply voltage is 400 VAC or 480 VAC.
What is the airflow? The documented airflow is 705 m³/h.
What is the fan speed? The documented fan speed is 2900 RPM.
What is the maximum current? The maximum current is 0.33 A.
What is the IP rating? The IP rating is IP44.
What bearing type does it use? It uses a ball bearing.
How is it terminated? The fan is terminated with wire connections.
What standards does it reference? Referenced standards include IEC 60990, ISO 5801, EN 60335-1, ISO 13347 and CE.
