48 VDC Backward-Curved Impeller
Motorized impeller centrifugal fan operating from 48 VDC.
1 / 4
Ebmpapst

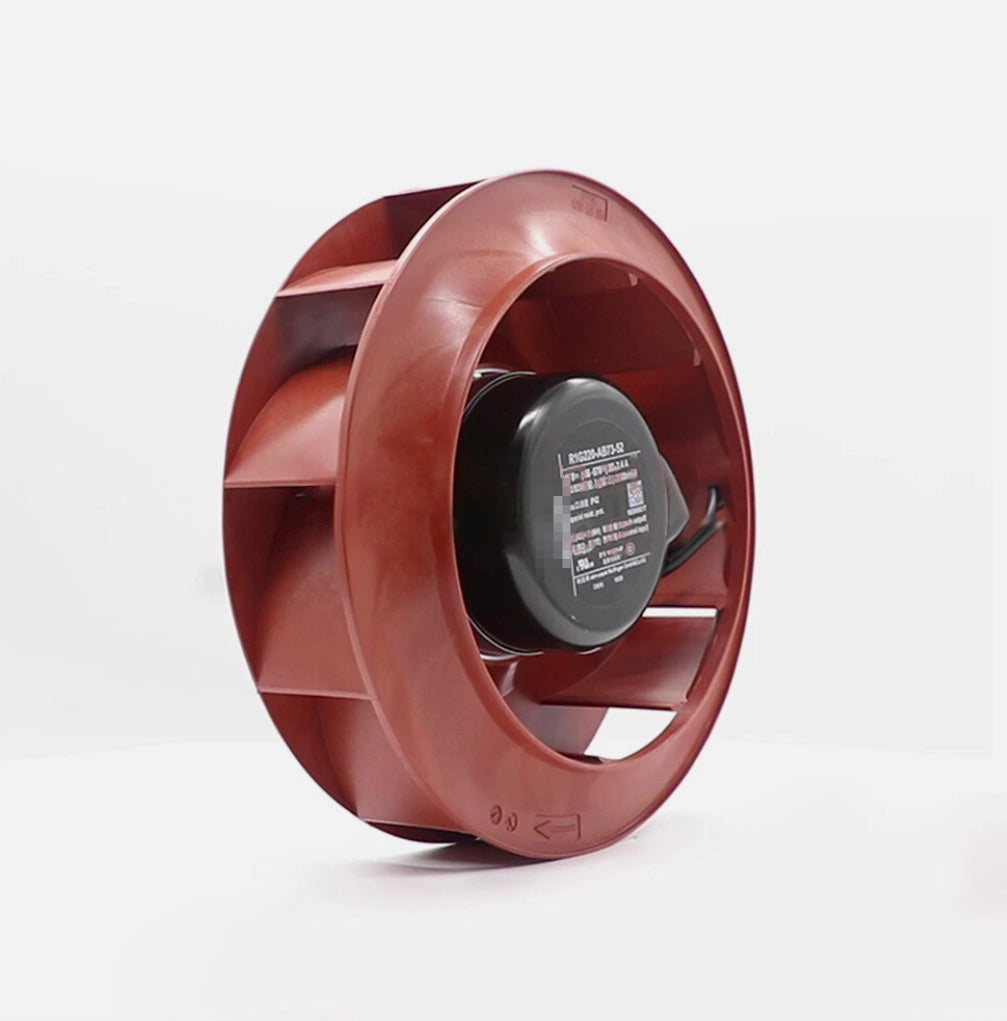

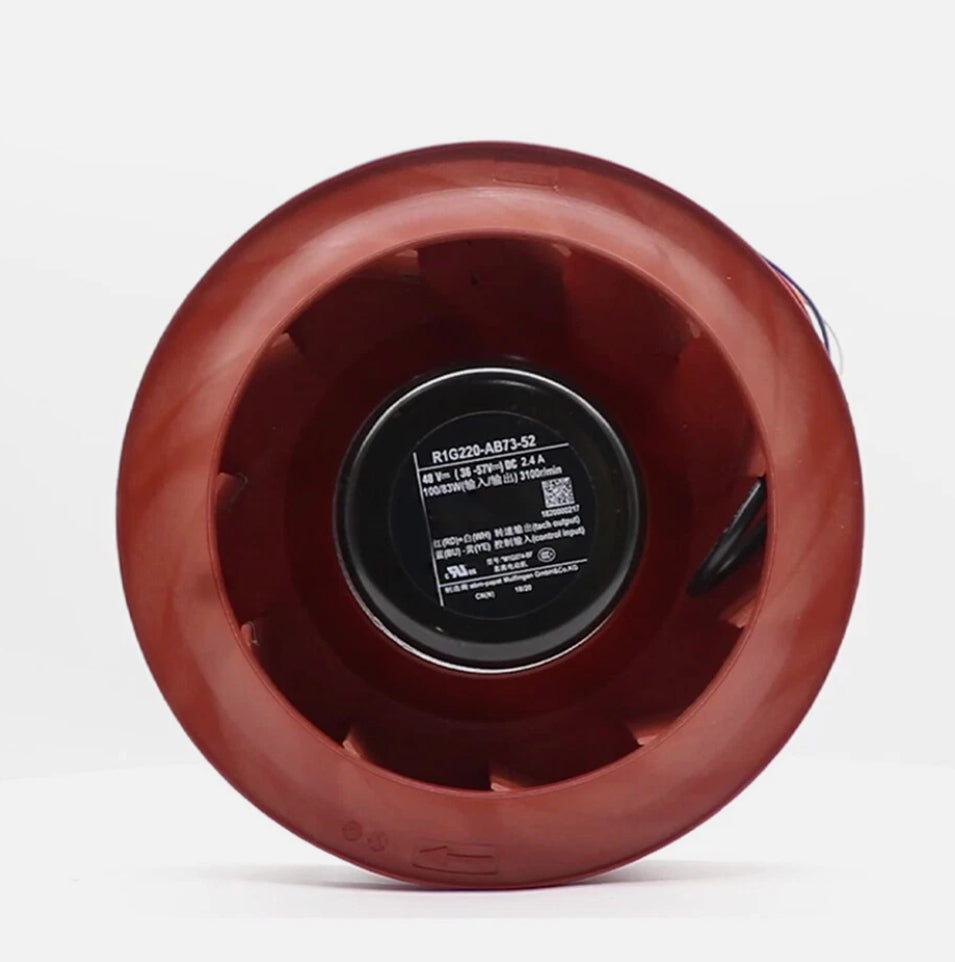

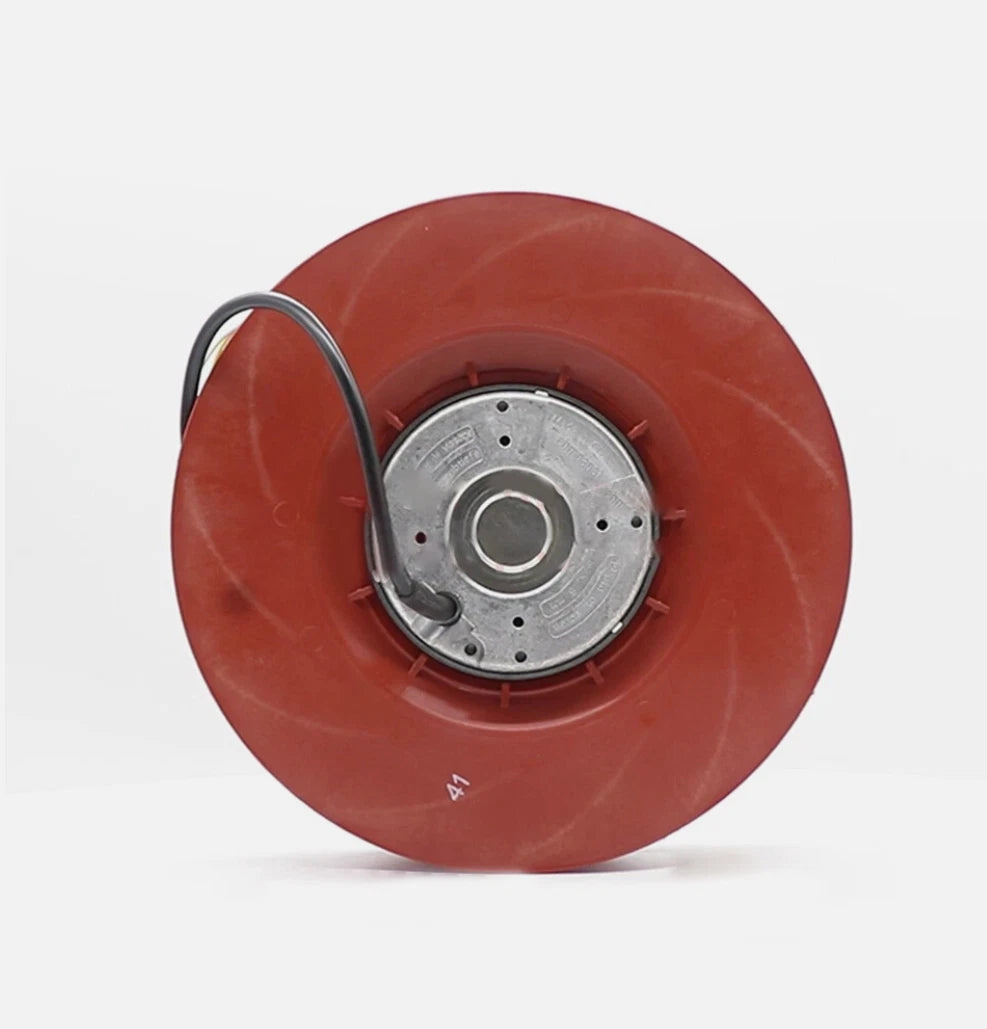

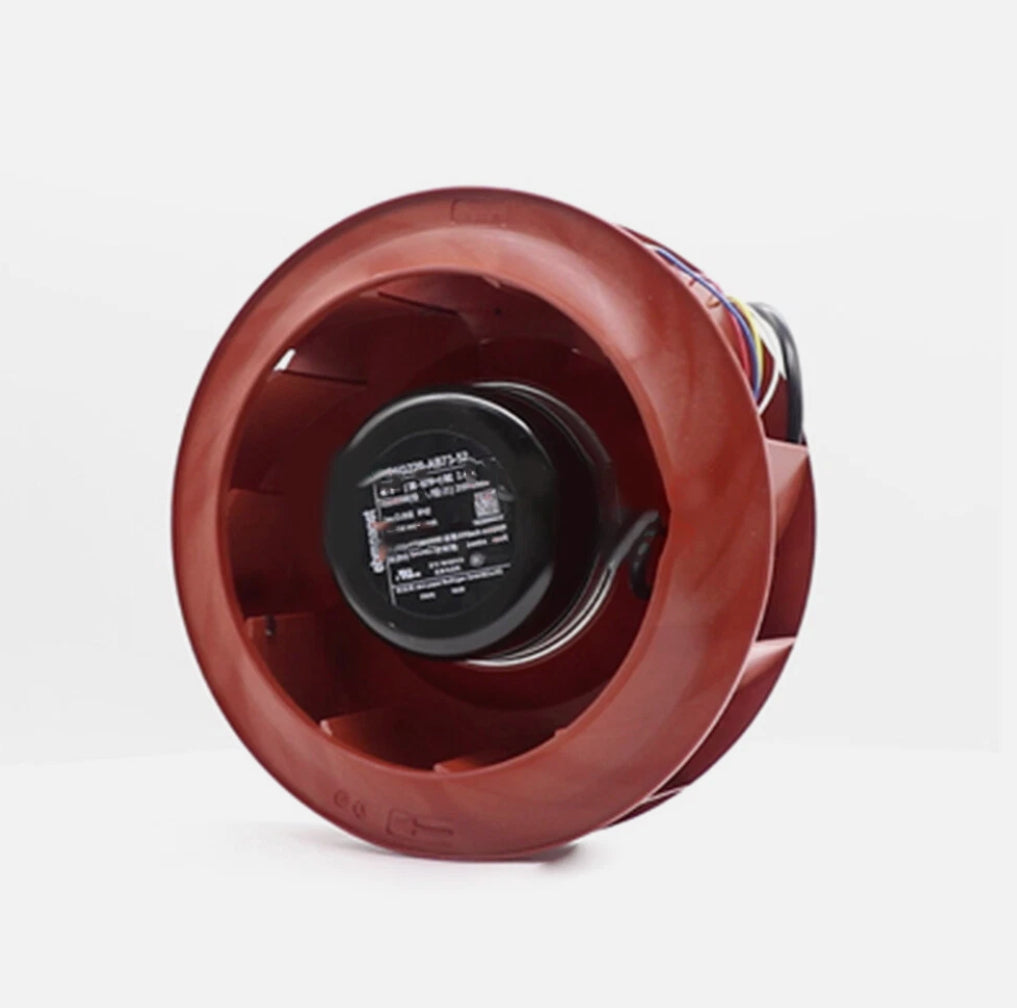

Ebmpapst R1G220-AB73-52 Centrifugal Fan 48VDC 220mm
PRODUCT PRICE
USD
$205.00
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | R1G220-AB73-52 |
| Product Category | Centrifugal Fan |
| Nominal Voltage | 48 VDC |
| Fan Diameter | 220 mm |
| Power Consumption | 100 W |
| Speed | 3150 rpm |
| Air Flow | 597.4 CFM (16.9 m³/min) |
| Noise Level | 73 dB |
| Bearing Type | Ball bearing |
| IP Rating | IP42 |
| External Depth | 71 mm |
| Termination | 4 lead wires |
Key Features
220 mm Diameter
Backward-curved centrifugal fan with a 220 mm fan diameter.
597.4 CFM Air Flow
Delivers 597.4 CFM at 3150 rpm.
100 W Power Consumption
Rated power consumption is 100 W.
IP42 Protection
IP42 protection rating for the fan assembly.
Ball Bearing
Equipped with a ball bearing.
Applications
- Ventilation equipment
- Air conditioning systems
- Heat pump units
- Industrial air handling
- Condenser cooling
- Refrigeration systems
- Ducted air circulation
Purchase Information
We support online purchase of the Ebmpapst R1G220-AB73-52 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst R1G220-AB73-52? The R1G220-AB73-52 is a 48 VDC centrifugal fan with a 220 mm fan diameter.
What is the nominal voltage? The nominal voltage is 48 VDC.
What is the air flow? The air flow is 597.4 CFM (16.9 m³/min) at 3150 rpm.
What is the power consumption? The power consumption is 100 W.
What is the noise level? The noise level is 73 dB.
What is the IP rating? The IP rating is IP42.
What type of bearing does the fan use? It uses a ball bearing.
What is the external depth? The external depth is 71 mm.
Need help confirming a model?
Send us your part number and technical requirements.
