230 VAC Single-Phase Motor
Operates on 1~230 VAC at 50 Hz, suitable for AC power environments where a fan motor is specified without an external DC supply.
1 / 1
Ebmpapst

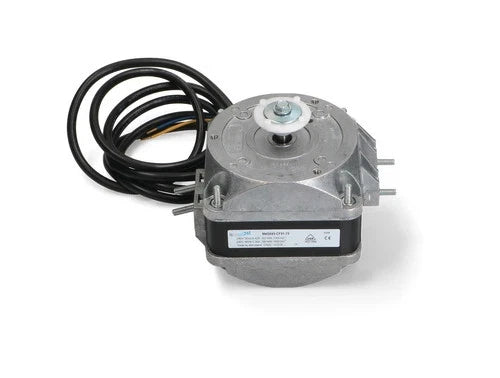

Ebmpapst M4Q045-CF01-75 Axial Fan 230V 450mm
PRODUCT PRICE
USD
$78.79
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | M4Q045-CF01-75 |
| Product Category | Axial Fan |
| Product Type | Q-Motor Multi-Function Design |
| Voltage | 1~230 VAC |
| Frequency | 50 Hz (60 Hz with note) |
| Power Consumption | 60 W |
| Nominal Output Power | 16.0 W |
| Rated Current | 0.42 A |
| Speed | 1300 rpm |
| Impeller Diameter | 254 mm |
| Operating Temperature | -30°C to +40°C |
| Protection Rating | IP42 |
| Insulation Class | B |
| Bearing Type | Sleeve Bearing |
| Motor Protection | Integrated locked-rotor protection |
| Electrical Connection | 1500 mm cable length |
| Weight | 1.3 kg |
Key Features
Multi-Function Q-Motor Design
The Q-motor platform is designed for multiple mounting possibilities, with axial fan blades available separately in aluminum for configuration flexibility.
1300 rpm Operating Speed
Runs at 1300 rpm for moderate airflow generation, with a nominal output power of 16.0 W and total power consumption of 60 W.
Integrated Locked-Rotor Protection
Includes integrated protection against locked rotor, supporting continuous-duty operation in ventilation and heat-exchange equipment.
IP42 Protection
Rated IP42 for protection against solid objects and dripping water, appropriate for indoor industrial and HVAC installations.
Applications
- HVAC air movement and ventilation
- Heat exchanger and condenser fan assemblies
- Industrial ventilation systems
- Refrigeration and cooling equipment
- Air-cooled condensing units
- Custom axial fan assemblies requiring a separate motor
- General AC-powered air circulation
Purchase Information
We support online purchase of the Ebmpapst M4Q045-CF01-75 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst M4Q045-CF01-75? The M4Q045-CF01-75 is a Q-motor multi-function design AC fan motor intended for use with separately ordered axial fan blades.
What voltage does the M4Q045-CF01-75 use? It operates on 1~230 VAC at 50 Hz, with a note for 60 Hz operation.
What is the power consumption? Total power consumption is 60 W, with a nominal output power of 16.0 W.
What is the rated current? The published rated current is 0.42 A.
What is the speed? The motor speed is 1300 rpm.
What is the impeller diameter? The published impeller diameter is 254 mm; axial fan blades are ordered separately.
What is the operating temperature range? The specified ambient temperature range is -30°C to +40°C.
What is the protection rating? The motor is rated IP42.
What bearing type is used? The M4Q045-CF01-75 uses a sleeve bearing.
What motor protection is included? Integrated protection against locked rotor is included.
What should be checked before ordering? Confirm the required fan blade part number and airflow direction, 230 VAC single-phase supply, 50/60 Hz frequency, ambient temperature, IP42 suitability and cable length against the installation requirements.
