230 VAC Shaded Pole Motor
Operates from a 1-phase 230 VAC supply at 50 Hz, with 60 Hz operation also documented.
1 / 2
Ebmpapst

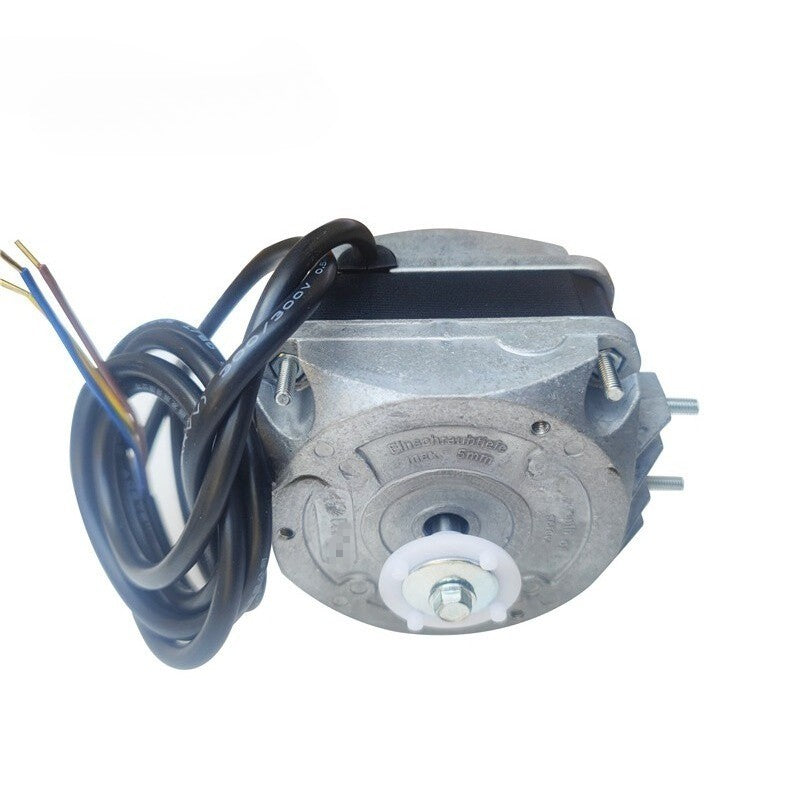

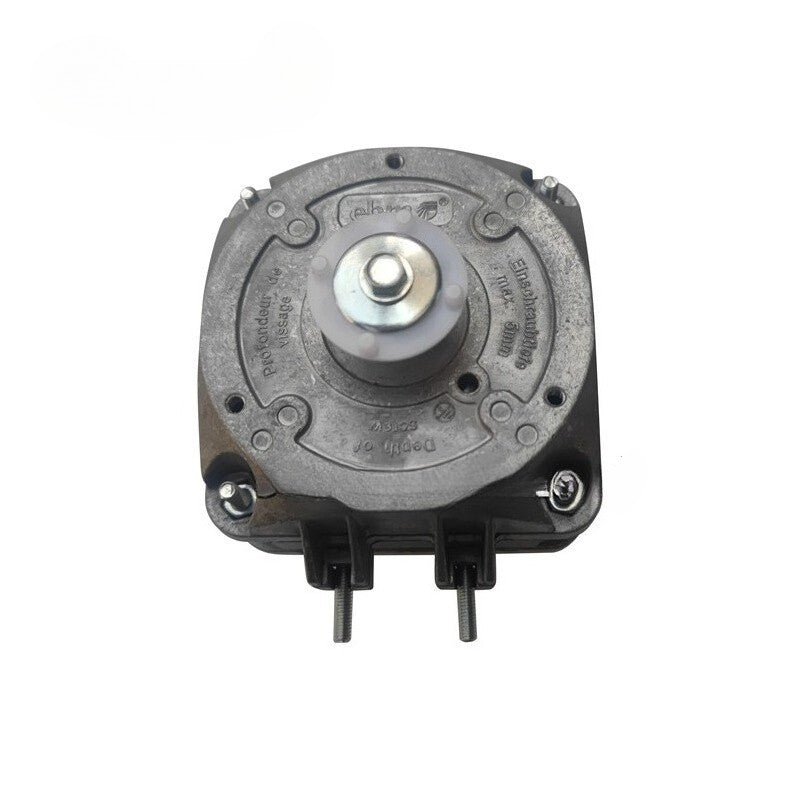

Ebmpapst M4Q045-CA01-75 Fan Motor 230V 50Hz 0.45A
PRODUCT PRICE
USD
$74.91
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | M4Q045-CA01-75 |
| Product Category | Fan Motor |
| Motor Type | Shaded Pole Motor |
| Nominal Voltage | 1~230 VAC |
| Frequency | 50 Hz (60 Hz) |
| Input Power | 31 W |
| Shaft Power | 7 W |
| Nominal Current | 0.20 A |
| Speed | 1300 rpm |
| Operating Temperature | -30°C to +40°C |
| Direction of Rotation | Counterclockwise (viewed from drive shaft) |
| Protection Rating | IP42 |
| Insulation Class | B |
| Bearing Type | Sleeve Bearing |
| Weight | 1.1 kg |
Key Features
31 W Input / 7 W Shaft Power
Published ratings identify 31 W input power and 7 W shaft power at nominal conditions.
1300 rpm Nominal Speed
The motor runs at a nominal speed of 1300 rpm for fan and heat exchanger drive applications.
Sleeve Bearing Construction
Uses sleeve bearings for the intended continuous operation and mounting position.
IP42 Protection
Documented with IP42 protection for the motor enclosure in the specified environment.
Wide Temperature Range
Rated for operation from -30°C to +40°C according to published data.
Applications
- Refrigeration and cold-room fan drives
- Heat exchanger fan motors
- Axial fan assemblies requiring a separate motor
- Ventilation equipment with 230 VAC single-phase supply
- General-purpose fan motor replacement in compatible equipment
- HVAC and cooling equipment motor drives
- Industrial fan motor applications with 7 W shaft output
- Equipment requiring a compact shaded pole motor
Purchase Information
We support online purchase of the Ebmpapst M4Q045-CA01-75 Fan Motor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst M4Q045-CA01-75? It is a 1-phase shaded pole fan motor intended for fan and heat exchanger drive applications.
What is the supply voltage and frequency? The nominal supply is 1~230 VAC at 50 Hz, with 60 Hz also documented.
What are the input and shaft power ratings? Published data identifies 31 W input power and 7 W shaft power.
What is the nominal speed of the M4Q045-CA01-75? The nominal speed is 1300 rpm.
What is the nominal current? The nominal current is 0.20 A.
What protection rating does the motor have? The motor is documented with IP42 protection.
What bearing type is used? The motor uses sleeve bearings.
What is the operating temperature range? The documented operating temperature range is -30°C to +40°C.
In which direction does the motor rotate? The direction of rotation is counterclockwise when viewed from the drive shaft.
Can this motor be used with separate axial impellers? The motor is designed as a fan motor; the matching impeller and accessories must be selected separately according to the equipment requirements and verified for mechanical and electrical compatibility.
