230VAC Operation
Published technical data lists 230 VAC operation for the K2S165-AA17-05.
1 / 7
Ebmpapst

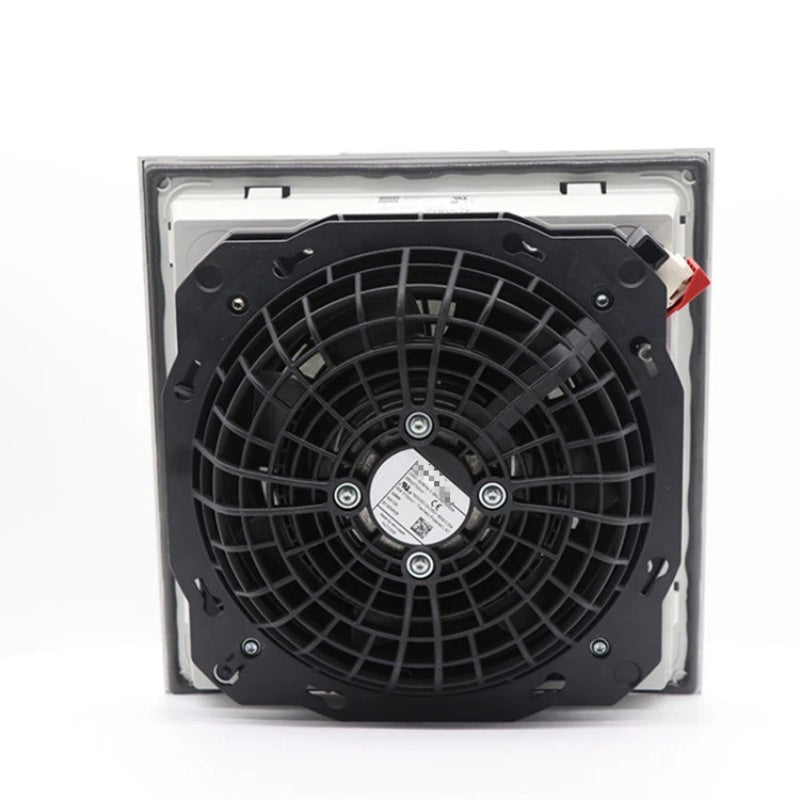

Ebmpapst K2S165-AA17-05 Fan 230VAC 40/42W 2650/2700RPM
PRODUCT PRICE
USD
$298.15
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | K2S165-AA17-05 |
| Product Category | Fan |
| Motor | M2S052-CA |
| Phase | 1~ |
| Rated Voltage | 230 VAC |
| Frequency | 50/60 Hz |
| Power Input | 40/42 W |
| Current Draw | 0.26/0.24 A |
| Speed | 2650/2700 RPM |
Key Features
50/60Hz Frequency
The fan is documented for operation at both 50 Hz and 60 Hz.
40/42W Power Input
Power input is specified as 40 W at 50 Hz and 42 W at 60 Hz.
2650/2700 RPM Speed
Published nominal data lists 2650 RPM at 50 Hz and 2700 RPM at 60 Hz.
0.26/0.24A Current Draw
Current draw is specified as 0.26 A at 50 Hz and 0.24 A at 60 Hz.
M2S052-CA Motor
Technical data identifies the motor designation as M2S052-CA.
Applications
- Electrical cabinet ventilation
- Industrial equipment cooling
- Control cabinet air circulation
- HVAC equipment ventilation
- Industrial machinery ventilation
- Electrical enclosure cooling
- Automation equipment thermal management
- Industrial air circulation
Purchase Information
We support online purchase of the Ebmpapst K2S165-AA17-05 Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst K2S165-AA17-05?
Ebmpapst K2S165-AA17-05 is a fan identified for industrial ventilation and cooling applications.
What voltage does K2S165-AA17-05 use?
Published technical data specifies a rated voltage of 230 VAC.
What frequency does K2S165-AA17-05 support?
Published nominal data specifies 50/60 Hz operation.
What is the power input of K2S165-AA17-05?
Power input is specified as 40 W at 50 Hz and 42 W at 60 Hz.
What is the current draw of K2S165-AA17-05?
Published nominal data lists 0.26 A at 50 Hz and 0.24 A at 60 Hz.
What is the speed of K2S165-AA17-05?
Published nominal data lists 2650 RPM at 50 Hz and 2700 RPM at 60 Hz.
What motor designation is listed for K2S165-AA17-05?
Technical data identifies the motor as M2S052-CA.
What operating temperature range is specified?
Published technical data lists an operating temperature range from -30°C to +55°C.
What applications can K2S165-AA17-05 be considered for?
It can be considered for industrial ventilation, electrical enclosure cooling and equipment air circulation after system requirements are checked.
What should be checked before ordering K2S165-AA17-05?
Check the complete model number, 230 VAC supply, 50/60 Hz frequency, electrical ratings, mechanical dimensions and installation requirements against the intended system.
Can K2S165-AA17-05 be used in an existing system?
It can be considered after the electrical, mechanical and installation requirements have been checked against the existing system requirements.
Need help confirming a model?
Send us your part number and technical requirements.
