115VAC Operation
The documented nominal voltage is 115 VAC for the listed 50 Hz and 60 Hz operating data.

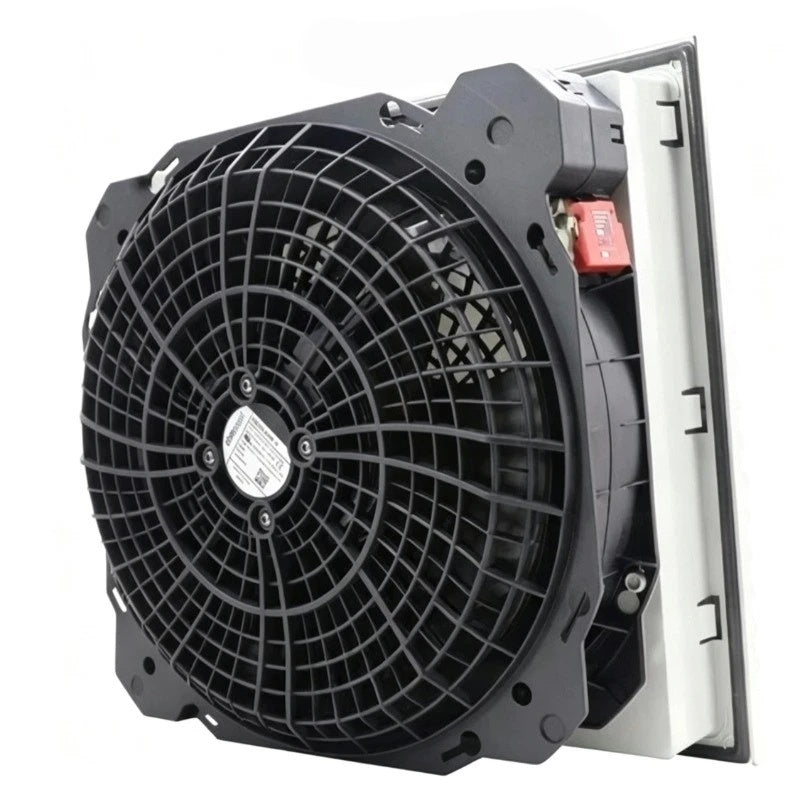

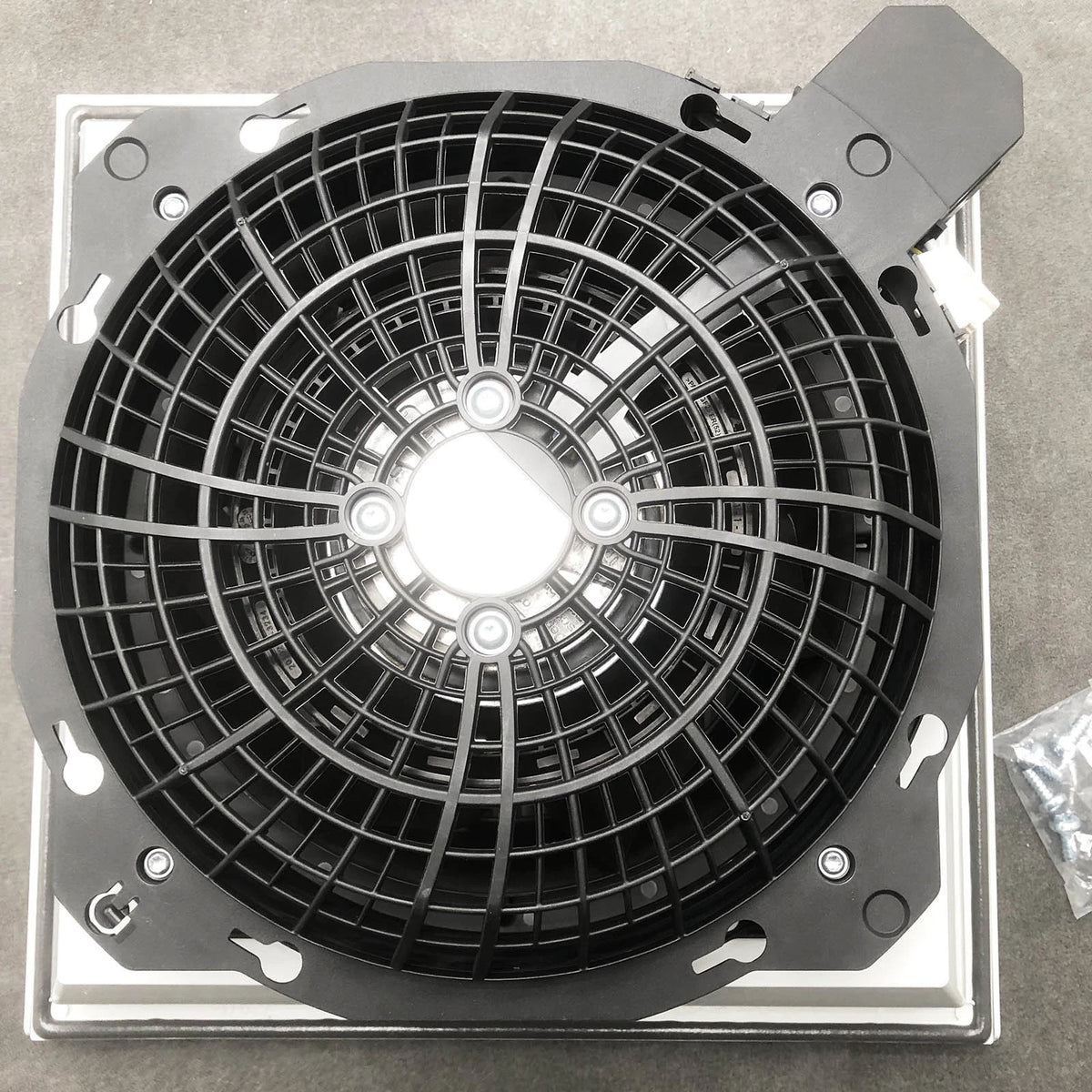

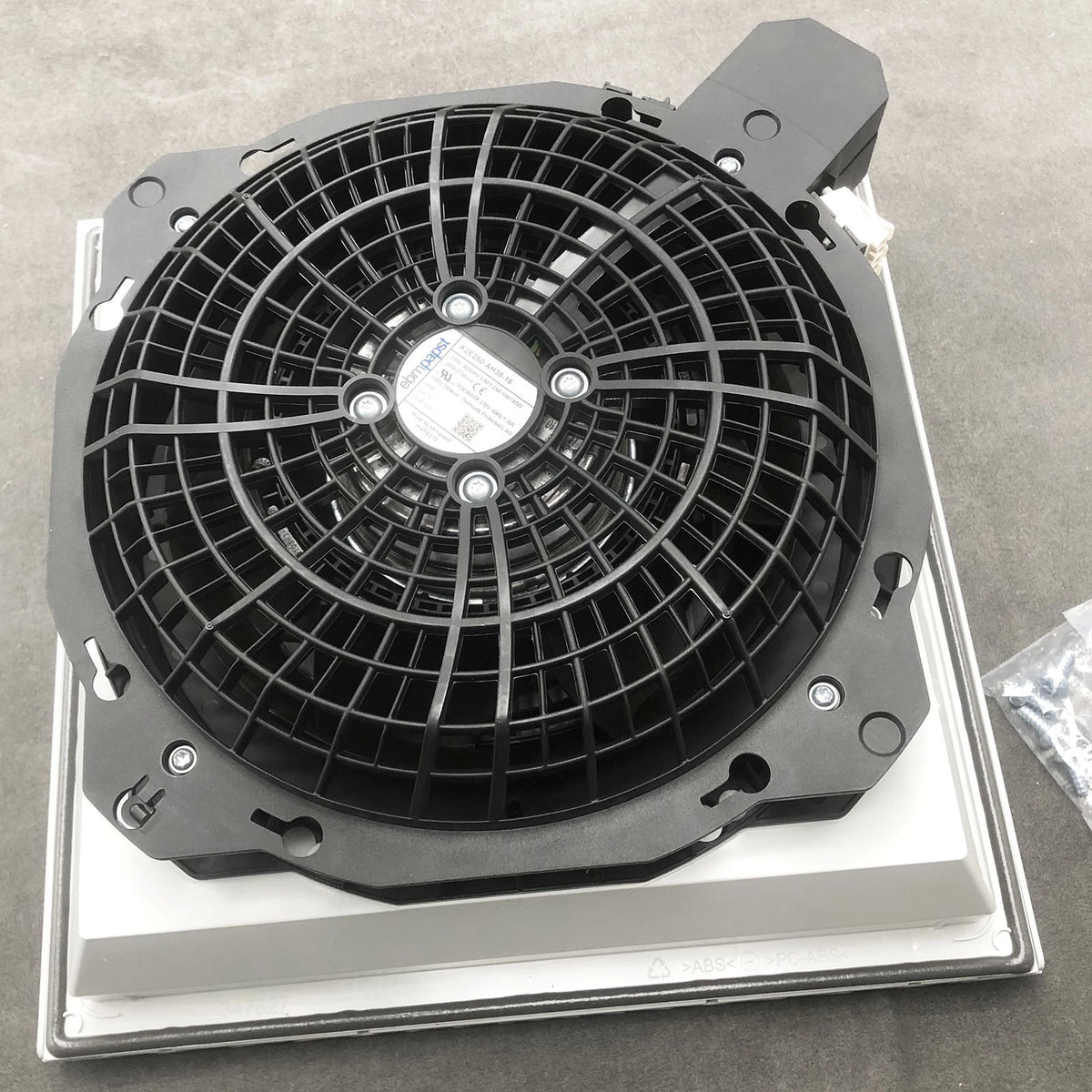

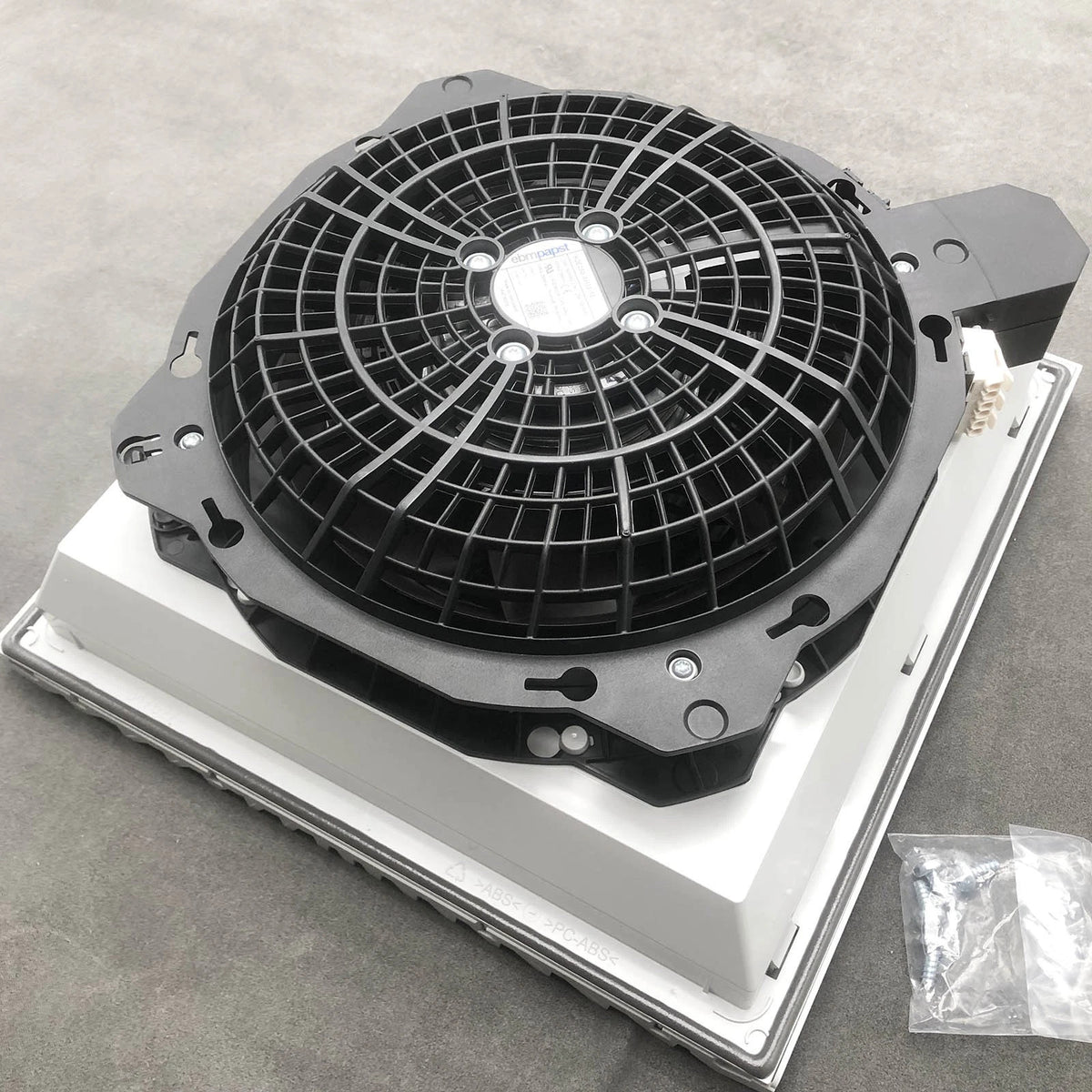

Ebmpapst K2E250-AH38-16 Fan 115VAC 100/145/155W 2600/2750/2800RPM
Available in stock (200)
Regular price
$312.37
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | K2E250-AH38-16 |
| Product Category | Fan |
| Motor | M2E068-DF |
| Phase | 1~ |
| Nominal Voltage | 115 VAC |
| Frequency | 50/60 Hz |
| Speed | 2600 / 2750 / 2800 rpm |
| Power Consumption | 100 / 145 / 155 W |
| Current Draw | 0.9 / 1.25 / 1.30 A |
| Capacitor | 8 µF |
| Size | 250 mm |
| Weight | 3.1 kg |
| Number of Blades | 5 |
| Impeller Material | PA Plastic |
| Housing Material | PP Plastic |
| Degree of Protection | IP44, installation- and position-dependent |
| Insulation Class | B |
| Motor Bearing | Ball Bearing |
| Installation Position | Any |
| Electrical Hookup | Via terminals, capacitor connected |
Key Features
50/60 Hz Frequency
Published nominal data includes operation at 50 Hz and 60 Hz.
Multiple Rated Speeds
Documented speed values are 2600 rpm at 50 Hz and 2750 or 2800 rpm at 60 Hz, depending on the applicable data set.
250 mm Size
The technical description identifies a 250 mm size and a five-blade impeller.
Ball Bearing Motor
The technical description specifies a ball bearing motor and S1 operating mode.
IP44 Protection
The technical description specifies IP44 protection, with the degree of protection dependent on installation and position.
Applications
- Industrial equipment air conveying
- Electrical enclosure ventilation
- Control cabinet cooling
- Industrial machinery ventilation
- HVAC air-moving applications
- Equipment thermal management
- Built-in ventilation assemblies
- Industrial air circulation
Purchase Information
We support online purchase of the Ebmpapst K2E250-AH38-16 Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst K2E250-AH38-16?
Ebmpapst K2E250-AH38-16 is a built-in fan designed for conveying air according to its documented technical data.
What nominal voltage does K2E250-AH38-16 use?
The documented nominal voltage is 115 VAC.
What frequencies are specified for K2E250-AH38-16?
The nominal data lists 50 Hz and 60 Hz operation.
What speeds are documented for K2E250-AH38-16?
The published nominal data lists 2600 rpm at 50 Hz and 2750 or 2800 rpm at 60 Hz, depending on the applicable data set.
What power consumption values are specified?
The documented power consumption values are 100 W, 145 W and 155 W across the listed nominal operating data.
What current draw values are specified?
The documented current draw values are 0.9 A, 1.25 A and 1.30 A across the listed nominal operating data.
What size is K2E250-AH38-16?
The technical description identifies the fan size as 250 mm.
What degree of protection is specified?
The technical description specifies IP44, with the degree of protection dependent on installation and position.
What bearing type is used?
The technical description specifies a ball bearing motor.
What operating ambient temperature range is documented?
The nominal data lists a minimum ambient temperature of -30°C and a maximum ambient temperature of +55°C.
What applications can K2E250-AH38-16 be considered for?
It can be considered for built-in industrial air-conveying and ventilation applications after the electrical, mechanical and installation requirements have been checked.
What should be checked before ordering?
Check the complete K2E250-AH38-16 model number, 115 VAC supply, frequency, current, power, speed, dimensions, installation requirements and connection data against the intended system.
