250 mm Centrifugal Design
The K2E250-AH34-06 is an AC centrifugal motorized impeller with a documented nominal fan size of 250 mm.

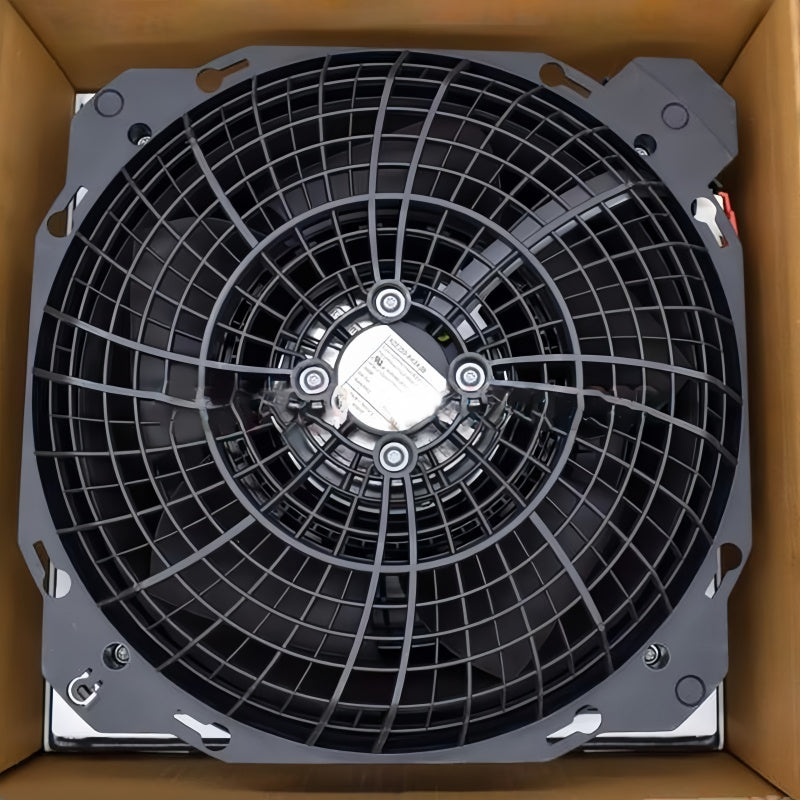

Ebmpapst K2E250-AH34-06 Centrifugal Fan 230VAC 250mm 95W 2550RPM
Available in stock (200)
Regular price
$302.56
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | K2E250-AH34-06 |
| Product Category | Centrifugal Fan |
| Fan Type | AC Centrifugal Fan / Motorized Impeller |
| Motor Model | M2E068-DF |
| Fan Size | 250 mm |
| Phase | 1-Phase |
| Rated Voltage | 230 VAC |
| Frequency | 50/60 Hz |
| Rated Current | 0.43 A at 50 Hz / 0.60 A at 60 Hz |
| Power Input | 95 W at 50 Hz / 135 W at 60 Hz |
| Speed | 2550 RPM at 50 Hz / 2600 RPM at 60 Hz |
| Motor Capacitor | 2 µF |
| Capacitor Voltage | 400 VDB |
| Bearing Type | Ball Bearing |
| Motor Protection | Thermal Protection |
Key Features
230 VAC Operation
The single-phase motor is rated for 230 VAC operation with documented electrical ratings for both 50 Hz and 60 Hz.
95/135 W Power Input
Exact-model nameplate data specifies 95 W at 50 Hz and 135 W at 60 Hz.
2550/2600 RPM Speed
Published exact-model data specifies 2550 RPM at 50 Hz and 2600 RPM at 60 Hz.
M2E068-DF Motor
Published exact-model identification associates the K2E250-AH34-06 with the M2E068-DF AC motor.
Ball Bearing Design
The documented configuration uses ball bearings, thermal motor protection and a 2 µF capacitor rated at 400 VDB.
Applications
- Industrial cabinet cooling
- Electrical enclosure ventilation
- Control panel thermal management
- Power electronics cooling
- Industrial machinery cooling
- HVAC equipment
- Equipment air circulation
- Centrifugal fan system maintenance
Purchase Information
We support online purchase of the Ebmpapst K2E250-AH34-06 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst K2E250-AH34-06?
It is a single-phase AC centrifugal fan and motorized impeller with a nominal size of 250 mm.
What voltage does K2E250-AH34-06 use?
Exact-model product data specifies 230 VAC.
What frequency does K2E250-AH34-06 support?
The documented electrical ratings cover 50 Hz and 60 Hz operation.
What is the rated current?
Exact-model nameplate data specifies 0.43 A at 50 Hz and 0.60 A at 60 Hz.
What is the power input?
Exact-model nameplate data specifies 95 W at 50 Hz and 135 W at 60 Hz.
What is the fan speed?
Published exact-model data specifies 2550 RPM at 50 Hz and 2600 RPM at 60 Hz.
What is the fan size?
Published product information identifies a nominal fan size of 250 mm.
What capacitor is specified?
Exact-model nameplate data specifies a 2 µF capacitor rated at 400 VDB.
What bearing type is used?
Published exact-model specifications identify ball bearings.
What motor is associated with this model?
Published exact-model identification associates the fan with motor model M2E068-DF.
Where can K2E250-AH34-06 be used?
Typical applications include industrial cabinet cooling, electrical enclosure ventilation, power electronics cooling and industrial equipment thermal management.
What should be checked before ordering K2E250-AH34-06?
Check the complete model number, 230 VAC single-phase supply, 50/60 Hz frequency, 250 mm fan size, current and power ratings, capacitor specification, electrical connection and mounting requirements before purchasing.
