225 mm Centrifugal Fan
The K2E225-AB92-09 is an Ebmpapst AC centrifugal fan with a 225 mm fan size and backward-curved impeller configuration.

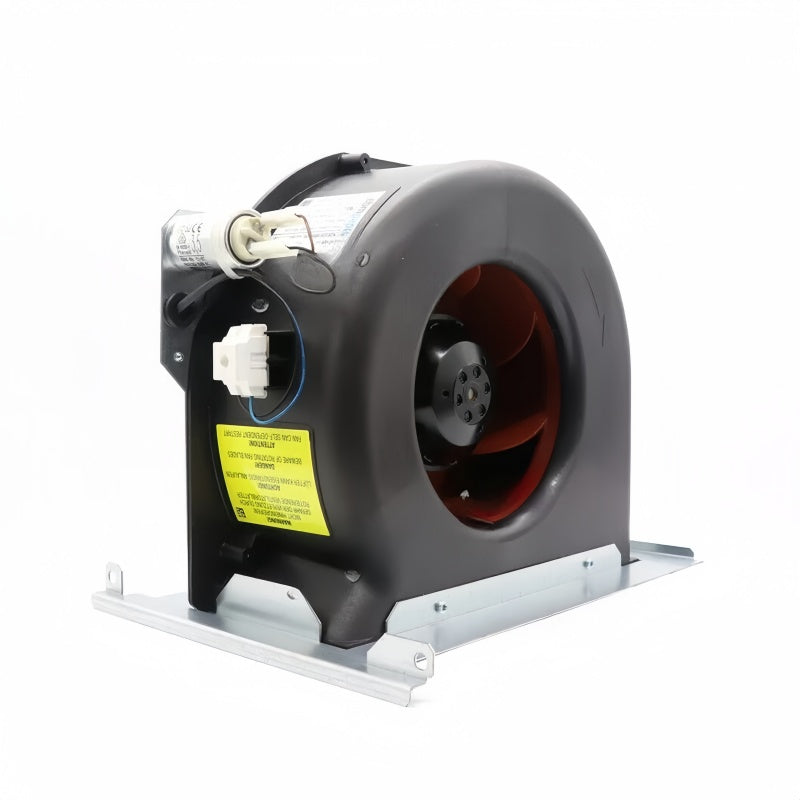

Ebmpapst K2E225-AB92-09 Centrifugal Fan 230VAC 155/220W 50/60Hz
Available in stock (200)
Regular price
$381.62
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | K2E225-AB92-09 |
| Product Category | Centrifugal Fan |
| Fan Type | AC Centrifugal Fan |
| Impeller Design | Backward-Curved |
| Motor Model | M2E068-DF |
| Fan Size | 225 mm |
| Power Supply | 1-Phase |
| Nominal Voltage | 230 VAC |
| Frequency | 50/60 Hz |
| Power Input | 155 W at 50 Hz / 235 W at 60 Hz |
| Rated Current | 0.68 A at 50 Hz / 0.97 A at 60 Hz |
| Speed | 2600 RPM at 50 Hz / 2750 RPM at 60 Hz |
| Capacitor | 4 µF |
| Capacitor Voltage | 450 VDB |
Key Features
230 VAC Operation
The documented electrical configuration uses a single-phase 230 VAC supply and supports 50 Hz and 60 Hz operation.
Dual-Frequency Ratings
Documented input power is 155 W at 50 Hz and 235 W at 60 Hz, with current ratings of 0.68 A and 0.97 A respectively.
2600/2750 RPM Speed
The documented rotational speed is 2600 RPM at 50 Hz and 2750 RPM at 60 Hz.
M2E068-DF Motor
The K2E225-AB92-09 configuration is documented with the Ebmpapst M2E068-DF AC motor.
Drive Cooling Application
The model is documented in industrial drive cooling applications and is associated with Siemens fan assembly reference 6SL3362-0AF00-0AA1.
Applications
- Variable frequency drive cooling
- Industrial inverter cooling
- Electrical cabinet ventilation
- Power electronics cooling
- Control panel thermal management
- Industrial machinery cooling
- Industrial ventilation equipment
- Centrifugal fan system maintenance
Purchase Information
We support online purchase of the Ebmpapst K2E225-AB92-09 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst K2E225-AB92-09?
It is a single-phase AC centrifugal fan with a backward-curved impeller configuration.
What voltage does K2E225-AB92-09 use?
The documented nominal voltage is 230 VAC.
Does K2E225-AB92-09 support 50 Hz and 60 Hz?
Yes. Published technical data specifies operation at both 50 Hz and 60 Hz.
What is the power input?
The documented power input is 155 W at 50 Hz and 235 W at 60 Hz.
What is the rated current?
The documented current is 0.68 A at 50 Hz and 0.97 A at 60 Hz.
What is the fan speed?
The documented speed is 2600 RPM at 50 Hz and 2750 RPM at 60 Hz.
What is the fan size?
Published exact-model data identifies the fan size as 225 mm.
What motor is used?
Exact-model technical data identifies the motor as M2E068-DF.
What capacitor is specified?
The documented capacitor specification is 4 µF with a 450 VDB rating.
What Siemens reference is associated with this fan?
Industrial references associate K2E225-AB92-09 with Siemens fan assembly 6SL3362-0AF00-0AA1.
Where can K2E225-AB92-09 be used?
Typical documented applications include inverter cooling, variable frequency drive cooling, electrical cabinet ventilation and power electronics cooling.
What should be checked before ordering K2E225-AB92-09?
Check the complete model number, 230 VAC supply, 50/60 Hz frequency, 225 mm size, electrical ratings, capacitor specification and mounting requirements before purchasing.
