AC Centrifugal Design
The K2E200-AH08-15 is an AC centrifugal fan with a backward-curved impeller configuration for cabinet and equipment ventilation.
Ebmpapst K2E200-AH08-15 Centrifugal Fan 115VAC 75/90W 50/60Hz
Available in stock (200)
Regular price
$327.61
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | K2E200-AH08-15 |
| Product Category | Centrifugal Fan |
| Fan Type | AC Centrifugal Fan |
| Impeller Design | Backward-Curved |

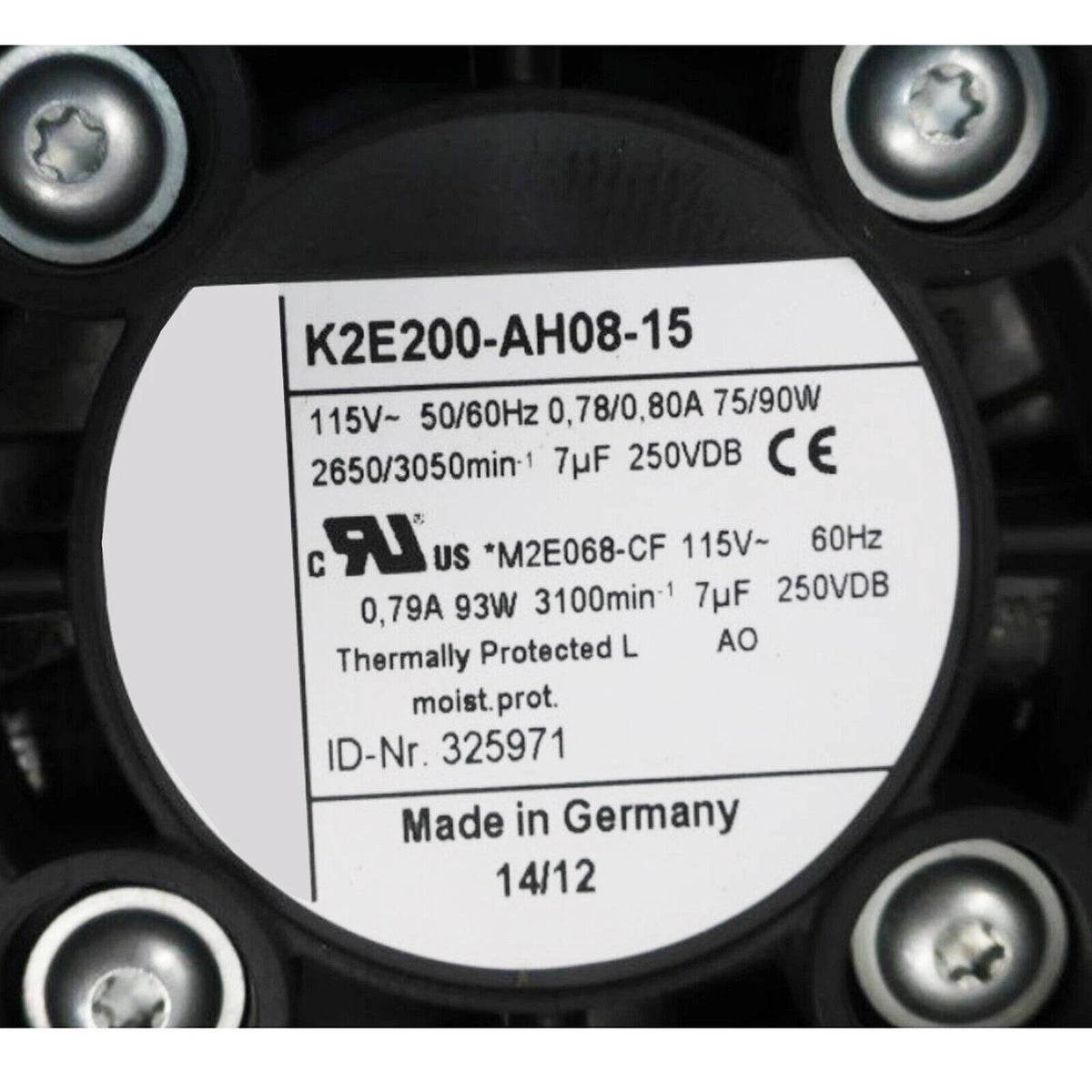

| Motor Number | M2E068-CF |
| Power Supply | 1-Phase |
| Nominal Voltage | 115 VAC |
| Frequency | 50/60 Hz |
| Power Input | 75/90 W |
| Rated Current | 0.78/0.80 A |
| Speed | 2550/3050 RPM |
| Air Flow | 540 m³/h at 50 Hz / 590 m³/h at 60 Hz |
| Bearing Type | Ball Bearing |
| Impeller Material | PA Plastic |
| Typical Cabinet Reference | Rittal 3243.110 / SK3243.110 |
Key Features
115 VAC Operation
The documented electrical configuration uses a single-phase 115 VAC supply and supports 50 Hz and 60 Hz operation.
Dual-Frequency Ratings
Documented ratings are 75 W and 0.78 A at 50 Hz, with 90 W and 0.80 A at 60 Hz.
2550/3050 RPM Speed
The documented rotational speed is 2550 RPM at 50 Hz and 3050 RPM at 60 Hz.
Cabinet Cooling Application
The K2E200-AH08-15 is documented for use with Rittal 3243.110 and SK3243.110 cabinet thermal-management equipment.
Ball Bearing Motor
The fan configuration uses a ball-bearing motor and PA plastic impeller for industrial air-moving applications.
Applications
- Electrical cabinet ventilation
- Control panel cooling
- Industrial enclosure cooling
- Automation cabinet thermal management
- Electrical equipment ventilation
- Industrial machinery cooling
- Rittal cabinet ventilation systems
- Centrifugal fan system maintenance
Purchase Information
We support online purchase of the Ebmpapst K2E200-AH08-15 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst K2E200-AH08-15?
It is a 115 VAC AC centrifugal fan with a backward-curved impeller for cabinet and industrial equipment ventilation.
What voltage does K2E200-AH08-15 use?
The documented nominal voltage is 115 VAC single-phase.
What frequency does the fan support?
The documented electrical data covers both 50 Hz and 60 Hz operation.
What is the power input?
The documented power ratings are 75 W at 50 Hz and 90 W at 60 Hz.
What is the rated current?
The documented current ratings are 0.78 A at 50 Hz and 0.80 A at 60 Hz.
What is the fan speed?
The documented speed is 2550 RPM at 50 Hz and 3050 RPM at 60 Hz.
What airflow does K2E200-AH08-15 provide?
Published application data lists free-air values of approximately 540 m³/h at 50 Hz and 590 m³/h at 60 Hz.
What type of fan is K2E200-AH08-15?
It is identified as an AC centrifugal fan with a backward-curved impeller configuration.
What bearing type is used?
Published technical data identifies a ball-bearing configuration.
Which cabinet system is associated with this fan?
The K2E200-AH08-15 is documented for Rittal 3243.110 and SK3243.110 cabinet applications.
Where is this fan typically used?
Typical applications include control panels, electrical cabinets, industrial enclosures and equipment ventilation systems.
What should be checked before ordering K2E200-AH08-15?
Check the complete model number, 115 VAC supply, 50/60 Hz frequency, electrical ratings, airflow requirements, mounting arrangement and equipment requirements before purchasing.
