EC Centrifugal Design

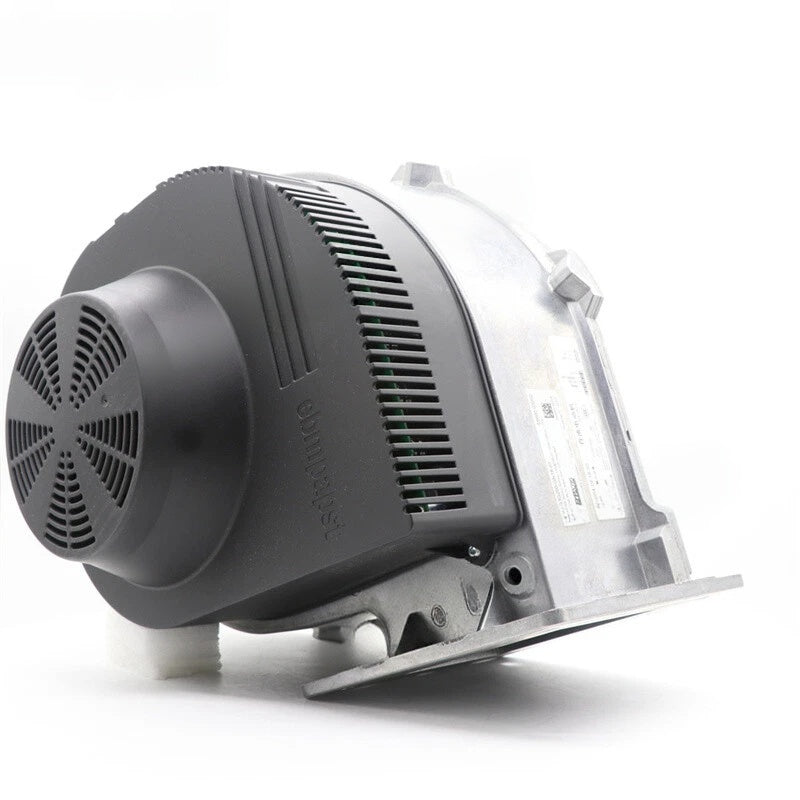

The G3G200-GN18-01 is an EC centrifugal fan with a backward-curved, single-inlet configuration and integrated housing flange.
Ebmpapst G3G200-GN18-01 EC Centrifugal Fan 230VAC 750W 5700RPM
Available in stock (200)
Regular price
$1,984.31
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | G3G200-GN18-01 |
| Product Category | EC Centrifugal Fan |
| Series | G3G200 |
| Fan Type | EC Centrifugal Fan, Backward Curved, Single Inlet |
| Design | With Housing Flange |
| Application Design | Gas Blower for Gas-Condensing Heating |
| Motor Model | M3G084-DF |
| Phase | 1-Phase |
| Nominal Voltage | 230 VAC |
| Nominal Voltage Range | 208-240 VAC |
| Frequency | 50/60 Hz |
| Power Input | 750 W |
| Current Draw | 3.6 A at 208 VAC |
| Speed | 5700 RPM |
| Air Flow at Optimum Efficiency | 485 m³/h |
| Static Pressure Increase at Optimum Efficiency | 2219 Pa |
| Degree of Protection | IP20 |
| Weight | 9.2 kg |
Key Features
208-240 VAC Supply Range
The documented nominal voltage is 230 VAC with an operating voltage range of 208 to 240 VAC and 50/60 Hz frequency.
750 W Power Input
The manufacturer nominal data specifies a maximum-load power input of 750 W for the G3G200-GN18-01.
5700 RPM Speed
The documented maximum-load rotational speed is 5700 RPM with the M3G084-DF EC motor.
Gas Blower Configuration
The manufacturer identifies this model as a gas blower for gas-condensing heating applications.
Defined Operating Temperatures
The documented ambient operating range is -20°C to +60°C, while the permitted flow-medium temperature is 0°C to +60°C.
Applications
- Gas-condensing heating equipment
- Gas boiler air systems
- Combustion air management
- Heating equipment air movement
- Industrial heating systems
- Gas blower assemblies
- Heating system maintenance
- Centrifugal blower servicing
Purchase Information
We support online purchase of the Ebmpapst G3G200-GN18-01 EC Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst G3G200-GN18-01?
It is an EC centrifugal fan with a backward-curved, single-inlet design and housing flange, specified as a gas blower for gas-condensing heating.
What voltage does G3G200-GN18-01 use?
The nominal voltage is 230 VAC with a documented voltage range of 208 to 240 VAC.
What frequency does G3G200-GN18-01 support?
The manufacturer specifies 50/60 Hz operation.
What is the power input?
The documented maximum-load power input is 750 W.
What is the current draw?
The manufacturer nominal data specifies 3.6 A at 208 VAC.
What is the fan speed?
The documented maximum-load speed is 5700 RPM.
What motor is used?
The manufacturer datasheet identifies the motor as M3G084-DF.
What airflow is documented?
The manufacturer ErP data specifies 485 m³/h at the optimum-efficiency operating point.
What pressure is documented?
The manufacturer ErP data specifies a static pressure increase of 2219 Pa at the optimum-efficiency operating point.
What is the protection rating?
Published product data identifies the G3G200-GN18-01 with an IP20 rating.
What is the ambient temperature range?
The documented ambient operating temperature range is -20°C to +60°C.
What should be checked before ordering G3G200-GN18-01?
Check the complete model number, 208-240 VAC supply range, 50/60 Hz frequency, electrical ratings, mechanical configuration, connections and application requirements before purchasing.
