230 VAC Operation
Designed for standard 230 VAC industrial power supplies with 50/60 Hz frequency support.
1 / 7
Ebmpapst

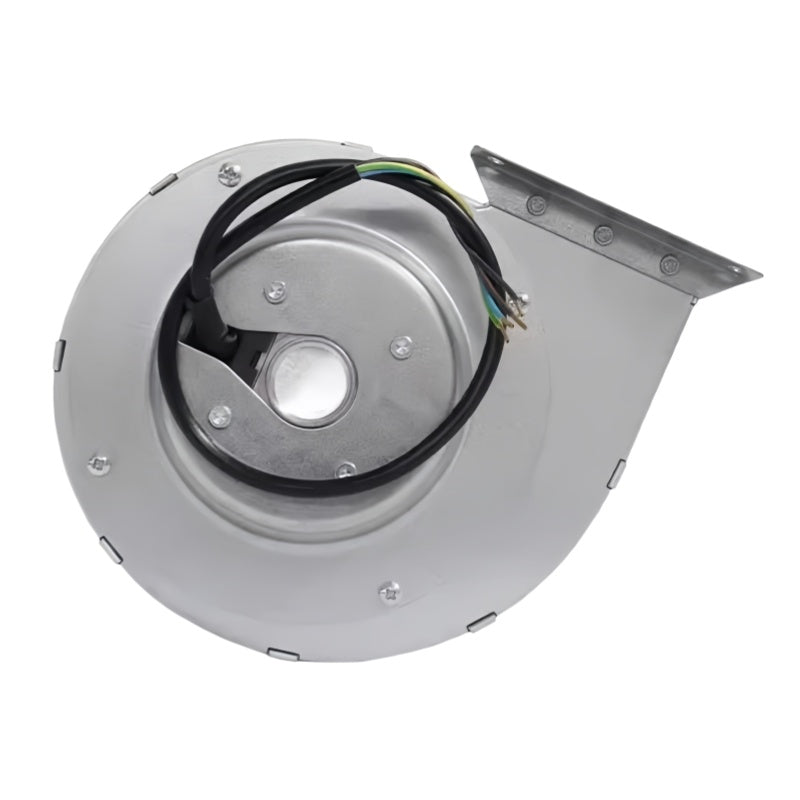

Ebmpapst G2E120-CR21-01 Centrifugal Fan 230VAC 160W
PRODUCT PRICE
USD
$327.41
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | G2E120-CR21-01 |
| Product Category | Centrifugal Fan |
| Rated Voltage | 230 VAC |
| Rated Frequency | 50/60 Hz |
| Power Input | 160 W |
| Speed | 2750 RPM |
| Air Flow | 385 m³/h |
| Diameter | 120 mm |
| Protection Rating | IP44 |
Key Features
160 W Power Input
Rated at 160 W power input for consistent centrifugal fan operation across the specified voltage range.
2750 RPM Speed
Provides 2750 RPM rotational speed for effective air movement in industrial equipment and enclosure cooling.
385 m³/h Air Flow
Delivers 385 m³/h air flow capacity suitable for ventilation and cooling applications requiring moderate to high airflow.
120 mm Diameter
Compact 120 mm diameter format designed for space-constrained industrial mounting locations.
IP44 Protection
IP44 protection rating provides resistance against solid objects larger than 1 mm and water splashes from any direction.
Applications
- Industrial equipment cooling
- Electrical cabinet ventilation
- HVAC system air circulation
- Control cabinet thermal management
- Industrial machinery ventilation
- Enclosure pressurization and cooling
- Heat exchanger air movement
- Industrial automation system cooling
Purchase Information
We support online purchase of the Ebmpapst G2E120-CR21-01 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst G2E120-CR21-01?
Ebmpapst G2E120-CR21-01 is a 230 VAC centrifugal fan with 160 W power input and 120 mm diameter designed for industrial cooling and ventilation applications.
What voltage does G2E120-CR21-01 use?
The G2E120-CR21-01 is specified for 230 VAC operation at 50/60 Hz.
What is the power consumption of G2E120-CR21-01?
The G2E120-CR21-01 has a rated power input of 160 W.
What is the speed of G2E120-CR21-01?
The G2E120-CR21-01 operates at 2750 RPM.
What is the air flow of G2E120-CR21-01?
The G2E120-CR21-01 provides 385 m³/h air flow.
What diameter is G2E120-CR21-01?
The G2E120-CR21-01 has a 120 mm diameter.
What is the protection rating of G2E120-CR21-01?
The G2E120-CR21-01 has an IP44 protection rating.
What applications can G2E120-CR21-01 be considered for?
G2E120-CR21-01 can be considered for industrial equipment cooling, electrical cabinet ventilation, HVAC systems, control cabinet thermal management, and industrial machinery ventilation after electrical and mechanical requirements have been verified.
What should be checked before ordering G2E120-CR21-01?
Before ordering, check the complete G2E120-CR21-01 catalog number, voltage and frequency requirements, power supply capacity, mounting dimensions, airflow requirements, and IP protection needs against the existing installation.
What should be verified before using G2E120-CR21-01 in an existing system?
Electrical supply, mounting compatibility, mechanical clearances, and environmental conditions should be verified against the existing system specifications before installation.
