High-Pressure Centrifugal Fan
Forward-curved centrifugal fan with 2500 Pa static pressure capability for high-impedance air paths.
1 / 4
Ebmpapst

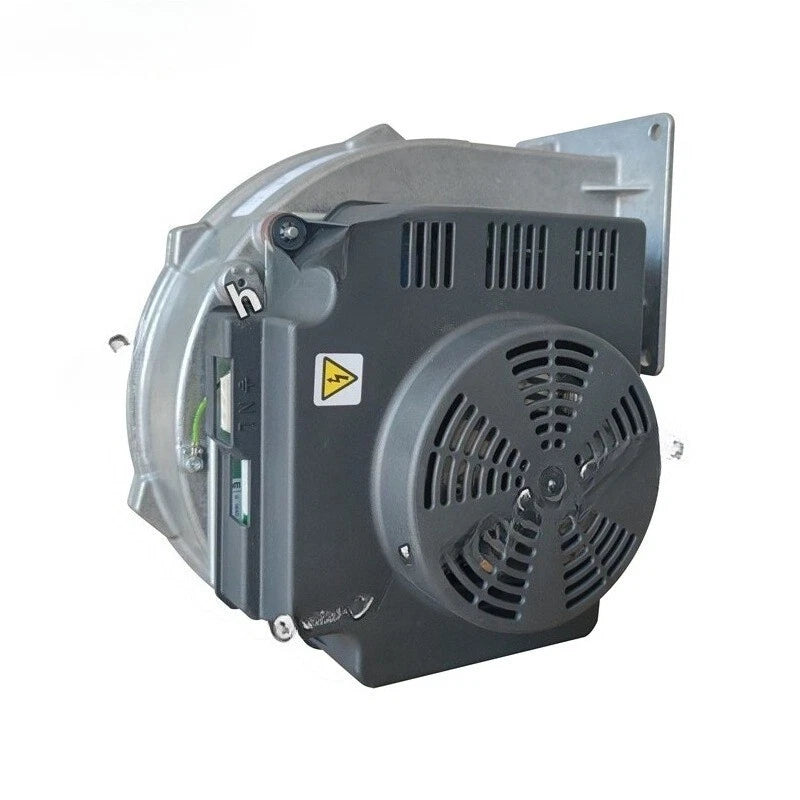

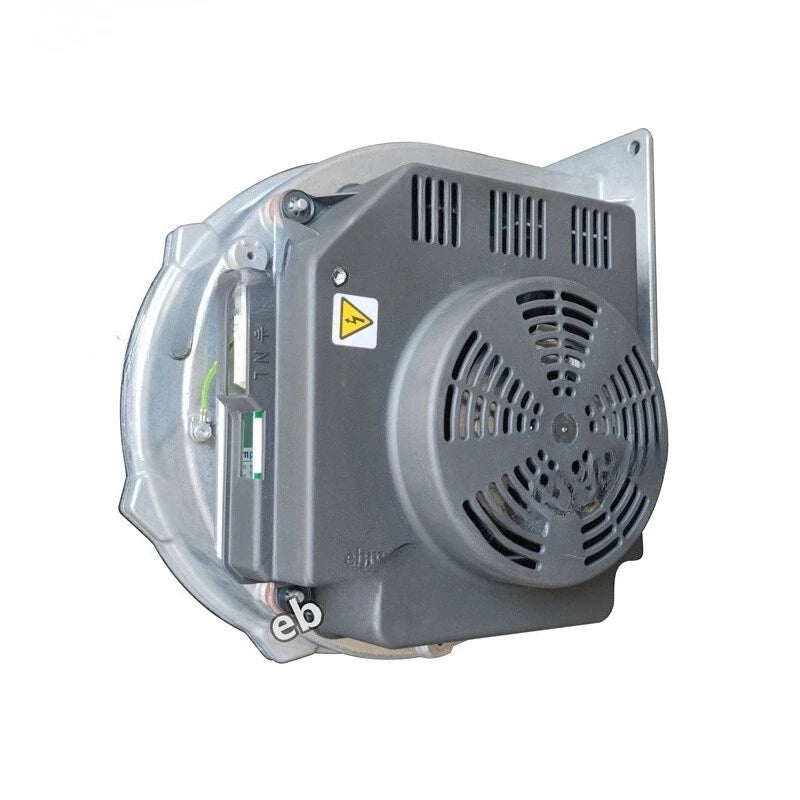

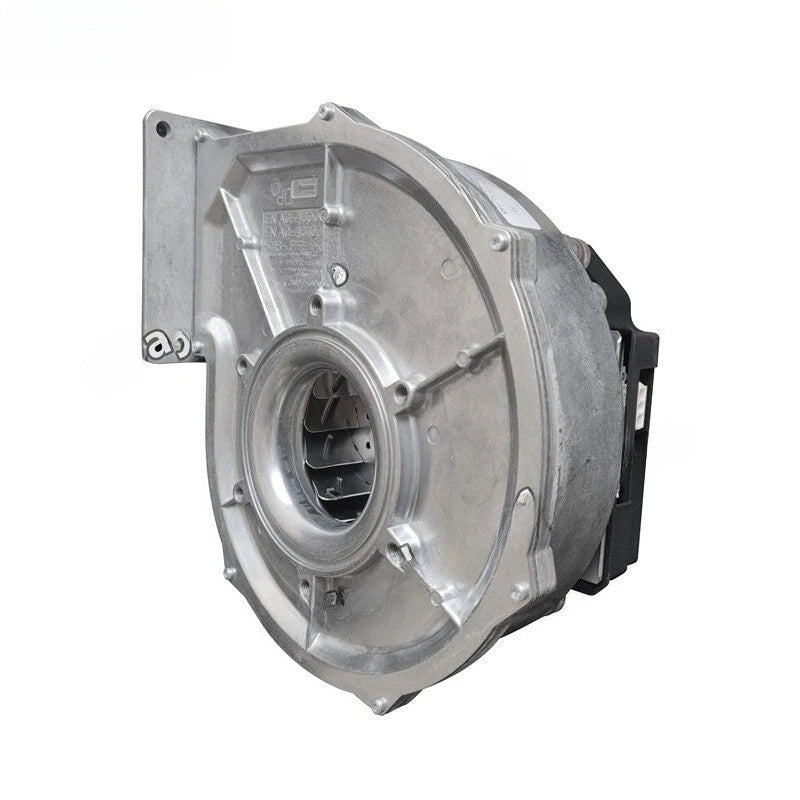

Ebmpapst G1G170-AB53-80 Centrifugal Fan 230V 170mm 80W
PRODUCT PRICE
USD
$1,280.50
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | G1G170-AB53-80 |
| Product Category | Centrifugal Fan |
| Fan Type | Centrifugal Fan (Forward Curved) |
| Rated Voltage | 230 V |
| Input Power | 360 W |
| Current | 1.6 A (reference) |
| Speed | 5830 RPM |
| Air Flow | 645 m³/h |
| Static Pressure | 2500 Pa |
| Impeller Diameter | 170 mm (fan dimension) |
| Motor Type | DC (EC) motor |
| Impeller Type | Forward Curved |
| Insulation Class | F (EN60335-1) |
Key Features
360 W EC Motor
Electronically commutated motor rated at 360 W, operating from a 230 V supply.
645 m³/h Air Flow
Delivers 645 m³/h at 5830 RPM for combustion air or process cooling applications requiring pressure.
Compact 170mm Design
170 mm impeller/fan dimension for integration into appliance and HVAC equipment.
Insulation Class F
Motor insulation class F per EN60335-1 for thermal endurance in appliance applications.
Applications
- Gas and condensing boiler combustion air supply
- High-static-pressure ventilation
- Industrial process air movement
- HVAC equipment fans
- Appliance blower applications
- Ducted air systems requiring pressure
Purchase Information
We support online purchase of the Ebmpapst G1G170-AB53-80 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst G1G170-AB53-80? It is a 230 V centrifugal fan with a forward-curved impeller, designed for high-static-pressure air movement in boiler and HVAC applications.
What is the voltage of the G1G170-AB53-80? The fan operates on a 230 V supply.
What is the power consumption of the G1G170-AB53-80? Input power is rated at 360 W, with a reference current of 1.6 A.
What is the air flow of the G1G170-AB53-80? Air flow is 645 m³/h.
What static pressure can the G1G170-AB53-80 generate? The published static pressure is 2500 Pa.
What is the speed of the G1G170-AB53-80? The rated speed is 5830 RPM.
What motor type does the G1G170-AB53-80 use? It uses an electronically commutated (EC/DC) motor.
What is the insulation class of the G1G170-AB53-80? The motor insulation class is F per EN60335-1.
What is the impeller type of the G1G170-AB53-80? It uses a forward-curved impeller.
What should be checked before ordering the G1G170-AB53-80? Verify the 230 V supply, the 360 W power availability, the 170 mm installation envelope, the high-static-pressure duct connection, and the insulation class F requirement for the application.
