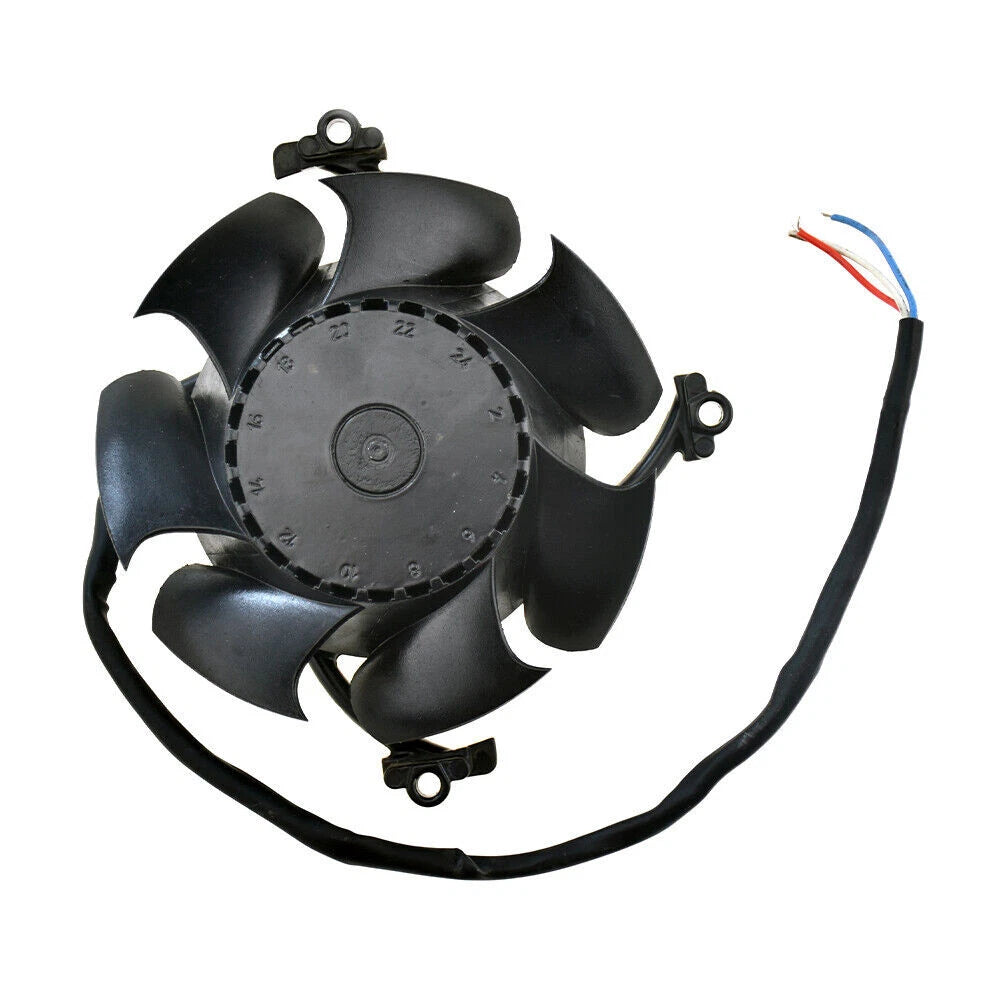

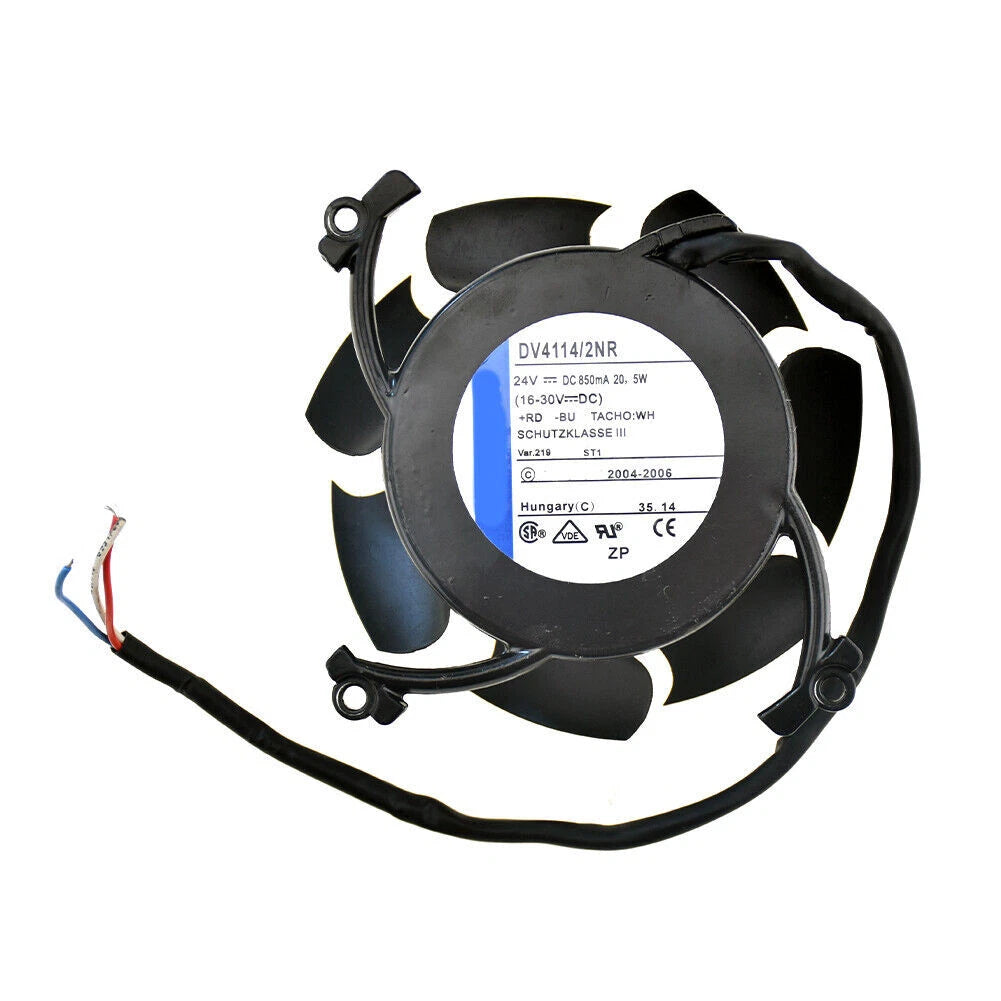

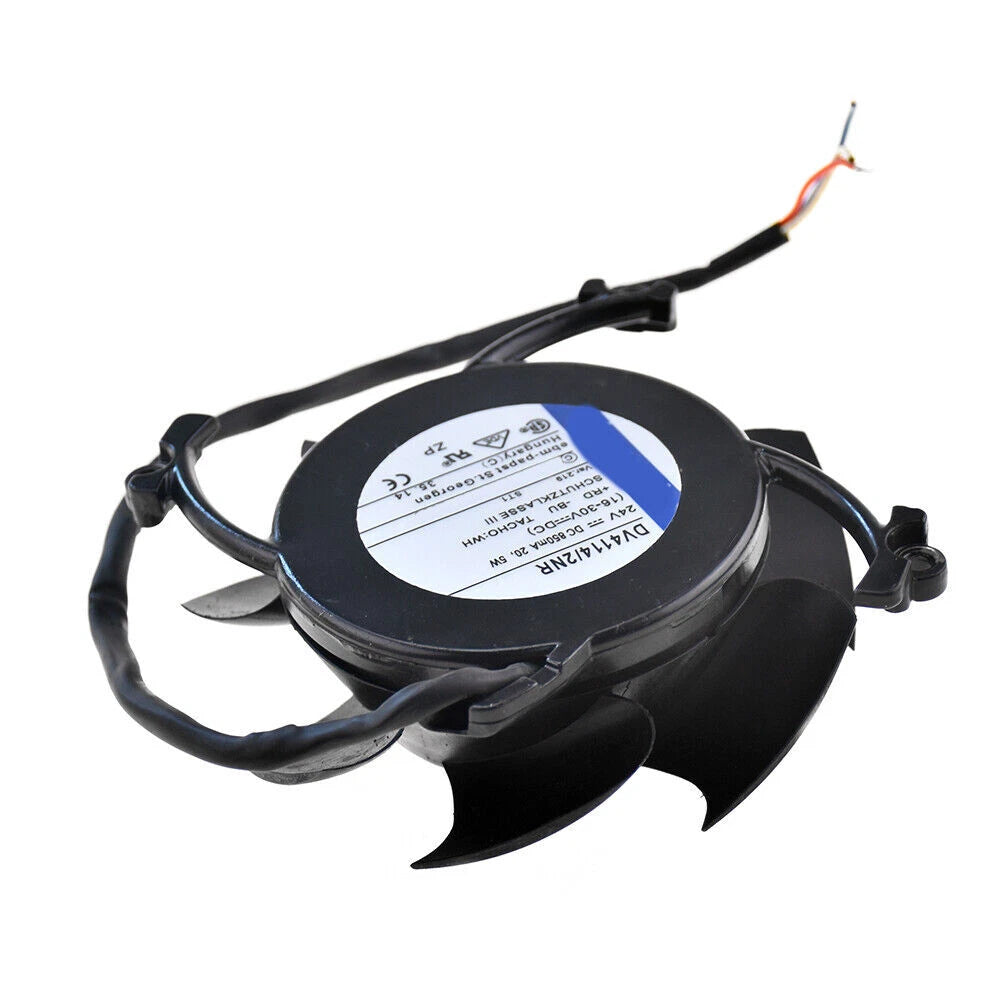

24 VDC Diagonal Fan
119 x 119 x 38 mm diagonal fan designed for 24 VDC operation across a 16 to 30 VDC range.
1 / 3
Ebmpapst
Ebmpapst DV4114/2NR Axial Fan 24VDC 119x119x38mm 6.5W
PRODUCT PRICE
USD
$53.57
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | DV4114/2NR |
| Product Category | Axial Fan |
| Fan Type | DC Axial Fan (Diagonal Fan) |
| Nominal Voltage | 24 VDC |
| Voltage Range | 16 to 30 VDC |
| Power Consumption | 20.5 W |
| Current Rating | 850 mA max |
| Speed | 6000 RPM |
| Air Flow | 280 m³/h (approx. 165 CFM) |
| Noise Level | 61 dBA |
| Frame Dimensions | 119 x 119 x 38 mm |
| Bearing Type | Ball Bearing |
| Impeller Material | Plastic |
| Termination | 3 Leads (with speed sensor) |
| Additional Function | Speed sensor |
Key Features
280 m³/h Air Flow
Delivers approximately 280 m³/h at 6000 RPM for higher-static-pressure cooling applications.
20.5 W Power
Power consumption of 20.5 W with a maximum current draw of 850 mA.
Speed Sensor Output
Includes a speed sensor and 3-lead connection for monitoring fan operation.
Ball Bearing Construction
Ball bearing assembly supports continuous operation within the published speed and power ratings.
Applications
- High-impedance electronic cooling
- Power supply and inverter ventilation
- Control cabinet thermal management
- Telecom and networking equipment airflow
- Industrial DC cooling with speed feedback
- Densely packed enclosure ventilation
Purchase Information
We support online purchase of the Ebmpapst DV4114/2NR Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst DV4114/2NR? The DV4114/2NR is a 24 VDC diagonal fan with a 119 x 119 x 38 mm frame and a built-in speed sensor, used for cooling in industrial electronics.
What is the voltage range of the DV4114/2NR? It operates from 16 to 30 VDC with a nominal 24 VDC supply.
What is the air flow of the DV4114/2NR? Air flow is rated at 280 m³/h.
What is the power consumption of the DV4114/2NR? Power consumption is 20.5 W, with a maximum current of 850 mA.
What is the speed of the DV4114/2NR? The rated speed is 6000 RPM.
What is the noise level of the DV4114/2NR? The published noise level is 61 dBA.
Does the DV4114/2NR have speed feedback? Yes, it includes a speed sensor and a 3-lead connection for tach output.
What bearing type does the DV4114/2NR use? It uses ball bearings.
What is the frame size of the DV4114/2NR? The frame dimensions are 119 x 119 x 38 mm.
What should be checked before ordering the DV4114/2NR? Verify the 24 VDC supply (within 16-30 VDC), the 119 mm square mounting opening, the 3-lead speed-sensor connection, and the ambient temperature at the installation point.
