225 mm Dual-Inlet Design

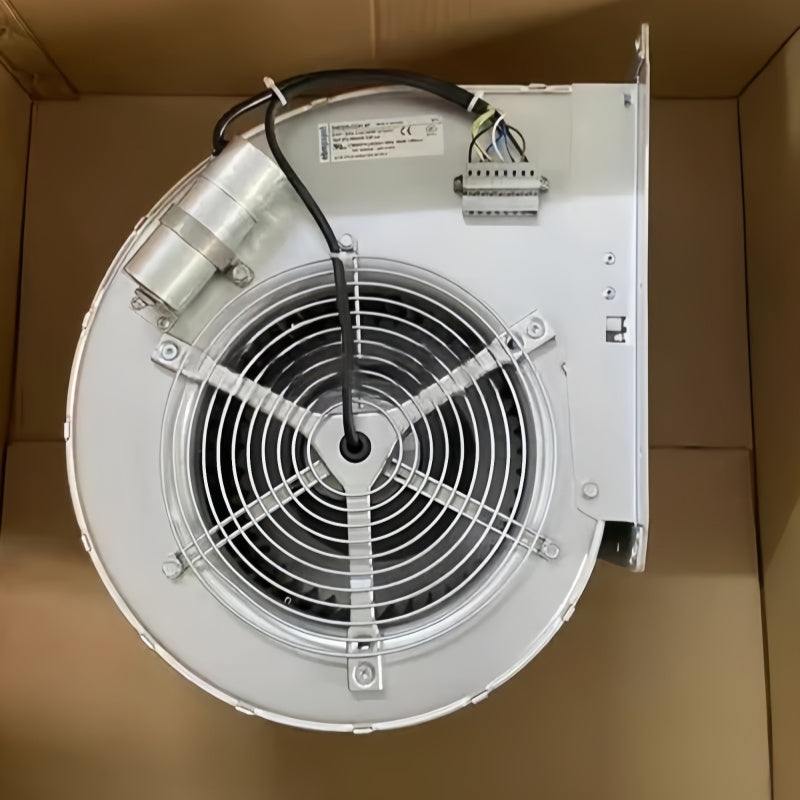

The D4E225-CC01-39 is a forward-curved AC centrifugal fan with dual air inlets and a housing with large flange.
Ebmpapst D4E225-CC01-39 Centrifugal Fan 230VAC 225mm 540/625W
Available in stock (200)
Regular price
$544.72
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | D4E225-CC01-39 |
| Product Category | Centrifugal Fan |
| Fan Type | AC Centrifugal Fan, Forward-Curved, Dual-Inlet, with Housing |
| Motor Model | M4E074-LA |
| Fan Size | 225 mm |
| Phase | 1-Phase |
| Rated Voltage | 230 VAC |
| Frequency | 50/60 Hz |
| Power Input | 540 W at 50 Hz / 625 W at 60 Hz |
| Current Draw | 2.4 A at 50 Hz / 2.75 A at 60 Hz |
| Speed | 1210 RPM at 50 Hz / 1300 RPM at 60 Hz |
| Motor Capacitor | 16 µF |
| Capacitor Voltage | 400 VDB |
| Minimum Back Pressure | 250 Pa at 50 Hz / 300 Pa at 60 Hz |
| Air Flow at Optimum Efficiency | 1965 m³/h |
| Pressure at Optimum Efficiency | 361 Pa |
| Impeller Material | Galvanized Sheet Steel |
| Housing Material | Galvanized Sheet Steel |
| Direction of Rotation | Counterclockwise, Viewed Toward Rotor |
| Degree of Protection | IP22 |
| Insulation Class | Class B |
| Bearing Type | Ball Bearing |
| Motor Protection | Thermal Overload Protector, Brought Out |
| Operating Mode | S1 |
| Mounting Position | Any |
| Weight | 13.4 kg |
Key Features
230 VAC Operation
The single-phase M4E074-LA motor is rated for 230 VAC operation at both 50 Hz and 60 Hz.
540/625 W Power Input
The documented maximum-load power input is 540 W at 50 Hz and 625 W at 60 Hz.
1210/1300 RPM Speed
The documented maximum-load rotational speed is 1210 RPM at 50 Hz and 1300 RPM at 60 Hz.
Galvanized Steel Construction
The impeller and housing are manufactured from galvanized sheet steel, with the motor mounted using anti-vibration suspension on both sides.
IP22 Protection
The documented configuration specifies IP22 protection, Class B insulation, ball bearings and a brought-out thermal overload protector.
Applications
- Industrial inverter cooling
- Variable frequency drive cooling
- Power electronics cooling
- Electrical cabinet ventilation
- Industrial equipment cooling
- Air handling systems
- Industrial machinery ventilation
- Centrifugal blower system maintenance
Purchase Information
We support online purchase of the Ebmpapst D4E225-CC01-39 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst D4E225-CC01-39?
It is a single-phase AC centrifugal fan with a forward-curved, dual-inlet impeller and housing.
What voltage does D4E225-CC01-39 use?
The manufacturer nominal data specifies 230 VAC.
What frequency does D4E225-CC01-39 support?
The documented nominal ratings cover 50 Hz and 60 Hz operation.
What is the power input?
The documented maximum-load power input is 540 W at 50 Hz and 625 W at 60 Hz.
What is the current draw?
The documented current draw is 2.4 A at 50 Hz and 2.75 A at 60 Hz.
What is the fan speed?
The documented speed is 1210 RPM at 50 Hz and 1300 RPM at 60 Hz.
What is the fan size?
The manufacturer technical data specifies a fan size of 225 mm.
What airflow is documented?
Manufacturer ErP data specifies 1965 m³/h at the optimum-efficiency operating point with a pressure increase of 361 Pa.
What capacitor is specified?
The manufacturer specifies a 16 µF motor capacitor rated at 400 VDB.
What is the protection rating?
The documented protection rating is IP22 with Class B insulation.
What materials are used for the impeller and housing?
Both the impeller and housing are manufactured from galvanized sheet steel.
What should be checked before ordering D4E225-CC01-39?
Check the complete model number, 230 VAC single-phase supply, 50/60 Hz frequency, 225 mm fan size, electrical ratings, capacitor, airflow and pressure requirements, connector configuration and mounting arrangement before purchasing.
