Double Inlet Centrifugal Blower
230 VAC double-inlet blower with a 146 mm impeller for high-volume air movement in compact equipment.
1 / 1
Ebmpapst

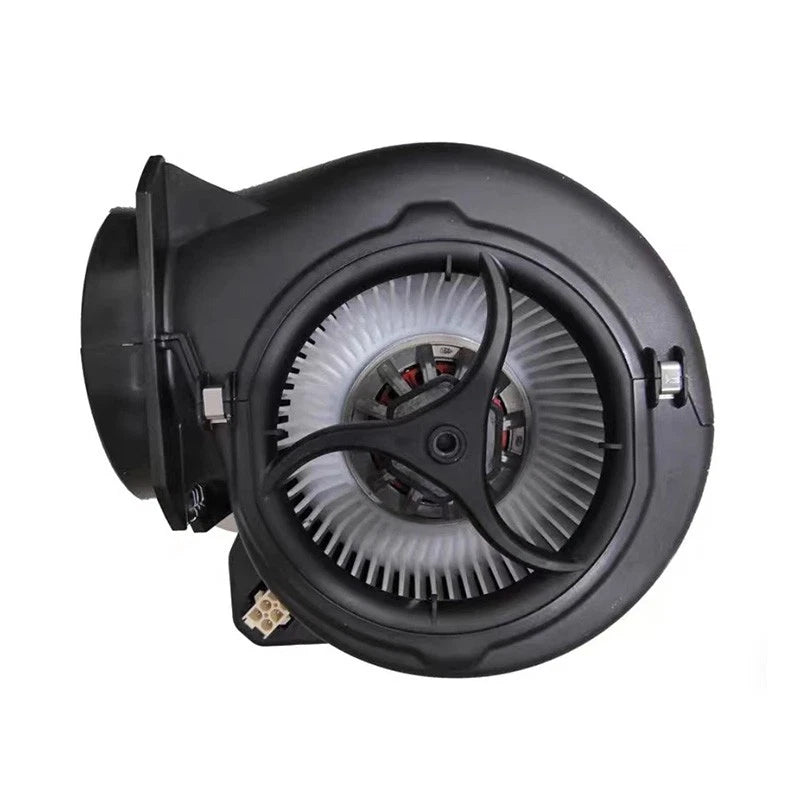

Ebmpapst D2E146-HT67-02 Centrifugal Fan 230V 146mm 55W
PRODUCT PRICE
USD
$446.67
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | D2E146-HT67-02 |
| Product Category | Centrifugal Fan |
| Fan Type | Double Inlet Centrifugal Blower |
| Nominal Voltage | 230 VAC |
| Frequency | 50 / 60 Hz |
| Power Consumption | 355 W |
| Current Rating | 1.55 A (reference); 1.75 A cited in some sources |
| Speed | 1850 RPM (approx. 2100 RPM cited) |
| Air Flow | 1000 m³/h (approx. 588 CFM) / 1060 m³/h |
| Impeller Diameter | 146 mm |
| Dimensions (L x H) | 220 x 216 mm (approx.) |
| Bearing Type | Ball Bearing |
| Termination | 6 Position Rectangular Connector |
Key Features
355 W Power
Rated at approximately 355 W with a current draw around 1.55 A (1.75 A cited in some distributor data).
1000 m³/h Air Flow
Delivers approximately 1000 m³/h, with some sources citing 1060 m³/h, at a speed near 1850 RPM.
6-Position Connector
Equipped with a 6-position rectangular connector for electrical termination.
Ball Bearing Assembly
Ball bearing construction for continuous-duty operation within the published electrical and airflow ratings.
Applications
- Medical equipment blower and cooling
- Industrial air handling and ventilation
- HVAC fan arrays
- Process cooling with centrifugal airflow
- Equipment requiring double-inlet blower configuration
- Compact high-volume air movement
Purchase Information
We support online purchase of the Ebmpapst D2E146-HT67-02 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst D2E146-HT67-02? It is a 230 VAC double-inlet centrifugal blower with a 146 mm impeller, used for high-volume air movement in medical, industrial, and HVAC equipment.
What is the voltage and frequency of the D2E146-HT67-02? The blower operates on 230 VAC at 50/60 Hz.
What is the power consumption of the D2E146-HT67-02? Power consumption is approximately 355 W, with a current draw around 1.55 A (some sources cite 1.75 A).
What is the air flow of the D2E146-HT67-02? Air flow is approximately 1000 m³/h, with some references citing 1060 m³/h.
What is the speed of the D2E146-HT67-02? The speed is approximately 1850 RPM, although 2100 RPM is also cited in distributor data.
What bearing type does the D2E146-HT67-02 use? It uses ball bearings.
How is the D2E146-HT67-02 connected? It uses a 6-position rectangular connector.
What is the impeller diameter of the D2E146-HT67-02? The impeller diameter is 146 mm.
What are the approximate dimensions of the D2E146-HT67-02? The blower dimensions are approximately 220 x 216 mm.
What should be checked before ordering the D2E146-HT67-02? Verify the 230 VAC 50/60 Hz supply, the 355 W power availability, the 6-position connector wiring, the blower mounting orientation, and the air path static pressure requirements.
