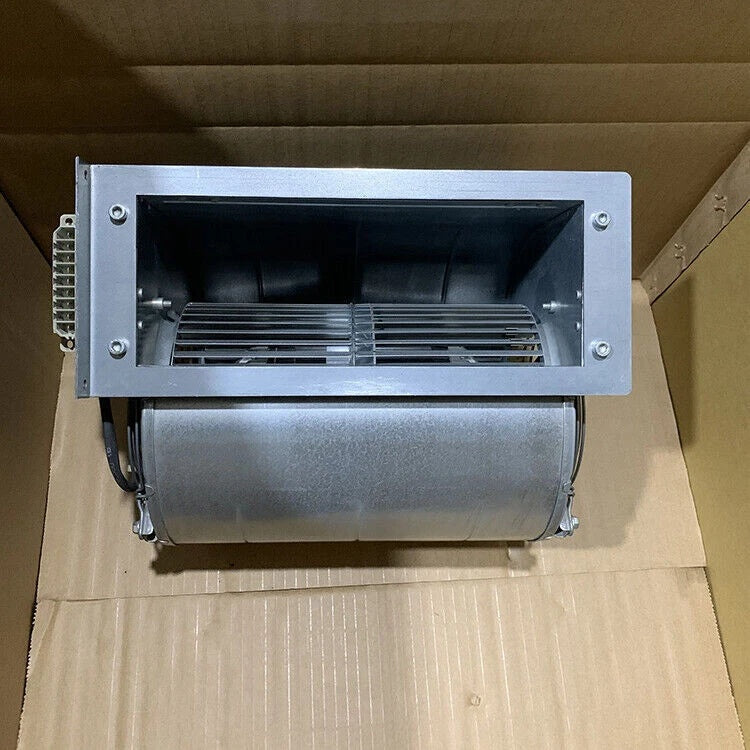

160 mm Dual-Inlet Design

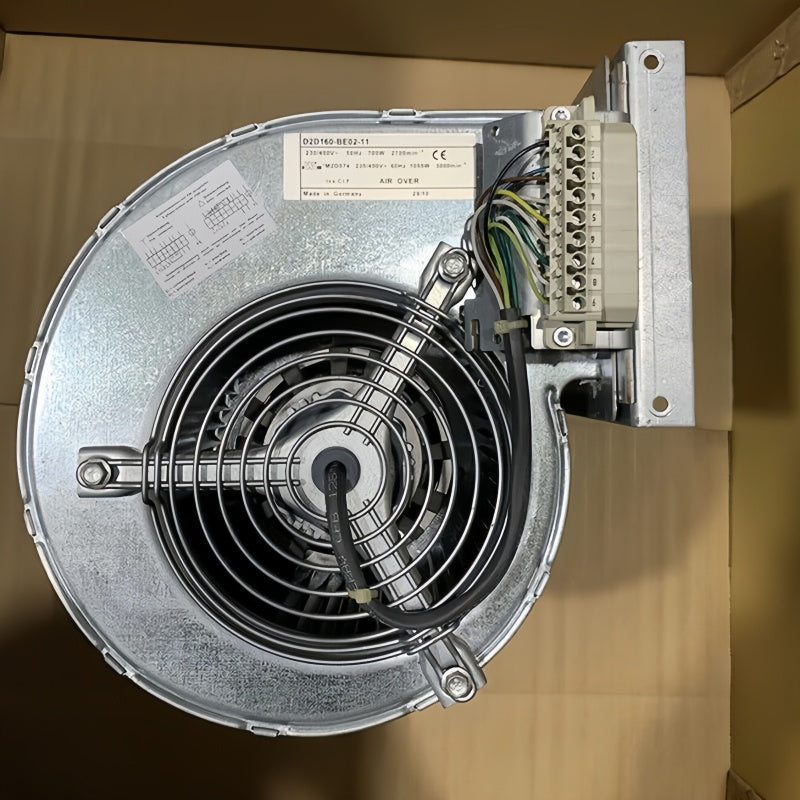

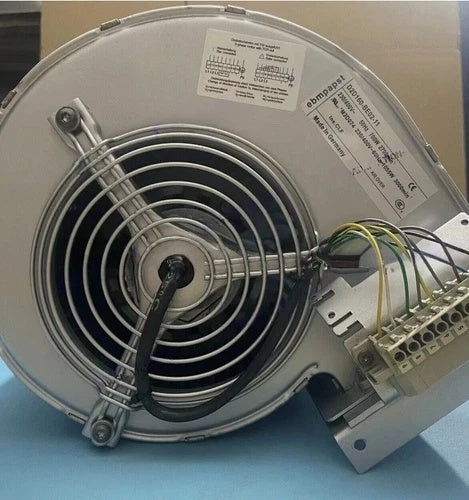

The D2D160-BE02-11 is a three-phase AC centrifugal fan with a 160 mm forward-curved, dual-inlet configuration.

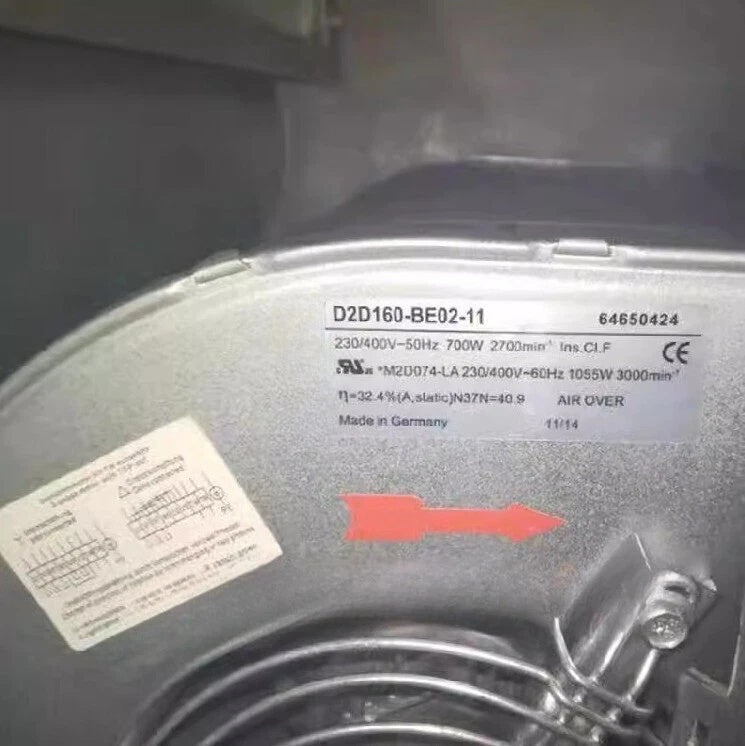

Ebmpapst D2D160-BE02-11 Centrifugal Fan 230/400VAC 160mm 700/1055W
Available in stock (200)
Regular price
$367.49
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | D2D160-BE02-11 |
| Product Category | Centrifugal Fan |
| Fan Type | AC Centrifugal Fan, Forward-Curved, Dual-Inlet |
| Motor Model | M2D074-LA |
| Fan Size | 160 mm |
| Phase | 3-Phase |
| Rated Voltage | 230 VAC Delta / 400 VAC Star |
| Frequency | 50/60 Hz |
| Power Input | 700 W at 50 Hz / 1055 W at 60 Hz |
| Current Draw at 230 VAC | 2.2 A at 50 Hz / 3.0 A at 60 Hz |
| Current Draw at 400 VAC | 1.28 A at 50 Hz / 1.7 A at 60 Hz |
| Speed | 2700 RPM at 50 Hz / 3000 RPM at 60 Hz |
| Minimum Back Pressure | 400 Pa at 50 Hz / 500 Pa at 60 Hz |
| Impeller Material | Galvanized Sheet Steel |
| Housing Material | Galvanized Sheet Steel |
| Direction of Rotation | Counterclockwise, Viewed Toward Rotor |
| Insulation Class | Class F |
| Bearing Type | Ball Bearing |
| Motor Protection | Thermal Overload Protector, Internally Connected |
| Operating Mode | S1 |
Key Features
230/400 VAC Configuration

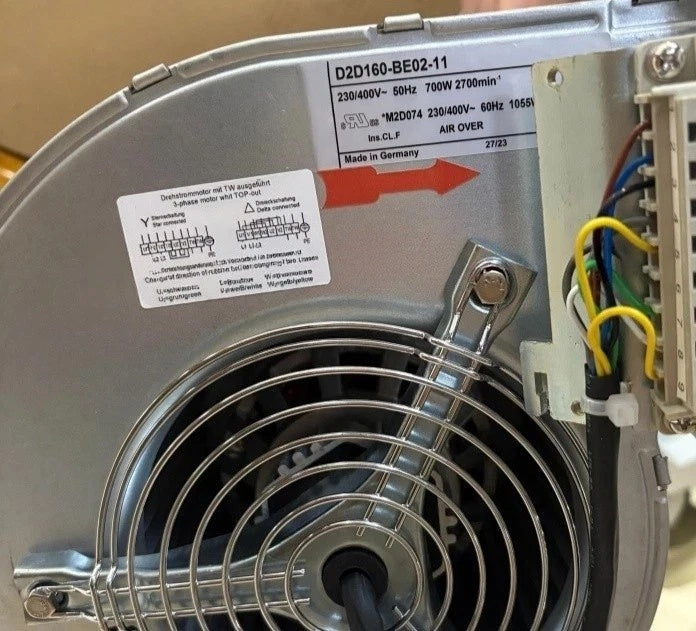

Manufacturer nominal data specifies 230 VAC delta and 400 VAC star wiring configurations for the three-phase motor.
700/1055 W Power Input
The documented power input is 700 W at 50 Hz and 1055 W at 60 Hz.
2700/3000 RPM Speed
The documented rotational speed is 2700 RPM at 50 Hz and 3000 RPM at 60 Hz.
Galvanized Steel Construction
The documented impeller and housing are manufactured from galvanized sheet steel.
M2D074-LA Motor
The fan uses the M2D074-LA three-phase motor with ball bearings and an internally connected thermal overload protector.
Applications
- Industrial inverter cooling
- Variable frequency drive cooling
- Power electronics cooling
- Electrical cabinet ventilation
- Industrial equipment cooling
- Air handling systems
- Industrial machinery ventilation
- Centrifugal blower system maintenance
Purchase Information
We support online purchase of the Ebmpapst D2D160-BE02-11 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst D2D160-BE02-11?
It is a three-phase AC centrifugal fan with a forward-curved, dual-inlet configuration.
What voltage does D2D160-BE02-11 use?
Manufacturer nominal data specifies 230 VAC with delta wiring and 400 VAC with star wiring.
What frequency does D2D160-BE02-11 support?
The documented nominal ratings cover 50 Hz and 60 Hz operation.
What is the power input?
The documented power input is 700 W at 50 Hz and 1055 W at 60 Hz.
What is the current draw at 400 VAC?
The documented current draw is 1.28 A at 50 Hz and 1.7 A at 60 Hz with star wiring.
What is the fan speed?
The documented speed is 2700 RPM at 50 Hz and 3000 RPM at 60 Hz.
What is the fan size?
The documented nominal fan size is 160 mm.
What minimum back pressure is specified?
Manufacturer nominal data specifies 400 Pa at 50 Hz and 500 Pa at 60 Hz.
What materials are used?
The documented impeller and housing are manufactured from galvanized sheet steel.
What bearing type is used?
The documented motor configuration uses ball bearings.
What motor is used?
The manufacturer operating instructions identify the motor as M2D074-LA.
What should be checked before ordering D2D160-BE02-11?
Check the complete model number, three-phase supply voltage, delta or star wiring, 50/60 Hz frequency, 160 mm fan size, power and current ratings, electrical connection, airflow requirements and mounting arrangement before purchasing.
