230 VAC Operation
The fan is rated for 230 VAC supply voltage, suitable for standard industrial AC power systems.
1 / 7
Ebmpapst

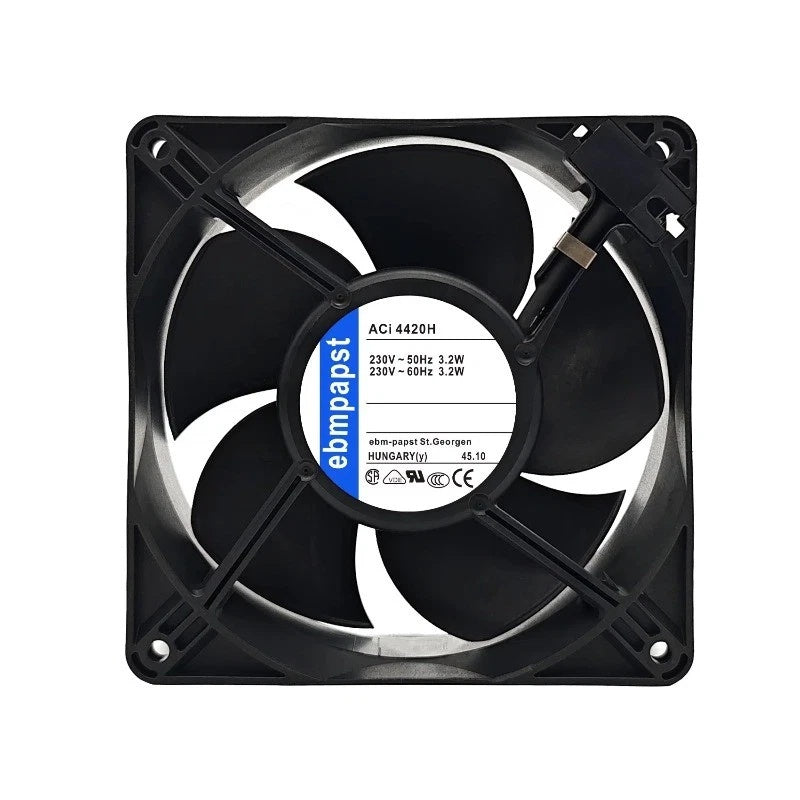

Ebmpapst ACi 4420H Tubeaxial Fan 230VAC 50/60Hz 130mA
PRODUCT PRICE
USD
$38.59
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | ACi 4420H |
| Product Category | Tubeaxial Fan |
| Rated Voltage | 230 VAC |
| Rated Frequency | 50/60 Hz |
| Rated Current | 130 mA |
| Power Input | 27 W / 30 W |
| Speed | 2750 RPM / 3250 RPM |
| Dimensions | 119 x 119 x 38 mm |
| Air Flow | 95 CFM / 110 CFM |
| Sound Level | 45 dB(A) / 50 dB(A) |
| Bearing Type | Ball Bearing |
Key Features
50/60 Hz Frequency
Supports both 50 Hz and 60 Hz line frequencies, providing flexibility for different regional power grids.
Ball Bearing Design
Equipped with ball bearings, designed for reliable operation in industrial environments.
High Airflow Output
Delivers up to 110 CFM airflow, suitable for demanding cooling and ventilation applications.
Variable Speed Range
Offers speed options from 2750 RPM to 3250 RPM, allowing performance adjustment based on application needs.
Compact Frame Dimensions
Features a 119 x 119 x 38 mm footprint for installation in space-constrained equipment.
Applications
- Industrial equipment cooling
- Electrical enclosure ventilation
- HVAC system airflow
- Control cabinet cooling
- Power supply unit ventilation
- Industrial machinery thermal management
- Instrumentation panel cooling
- Air circulation in industrial systems
Purchase Information
We support online purchase of the Ebmpapst ACi 4420H Tubeaxial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst ACi 4420H?
The Ebmpapst ACi 4420H is a tubeaxial AC fan designed for industrial cooling and ventilation applications.
What voltage does the ACi 4420H operate on?
The fan is rated for 230 VAC operation as specified in the product documentation.
What frequency does the ACi 4420H support?
The fan supports both 50 Hz and 60 Hz line frequencies.
What is the power consumption of ACi 4420H?
The power input is specified as 27 W at 50 Hz and 30 W at 60 Hz.
What is the airflow rating of ACi 4420H?
The airflow is rated at 95 CFM at 50 Hz and 110 CFM at 60 Hz.
What bearing type does ACi 4420H use?
The fan uses ball bearings as indicated in the product specifications.
What are the dimensions of ACi 4420H?
The fan has a 119 x 119 x 38 mm frame size.
What applications can ACi 4420H be considered for?
It can be used for equipment cooling, cabinet ventilation, HVAC systems, and general industrial air circulation.
What should be checked before ordering ACi 4420H?
The voltage rating, frequency, dimensions, airflow requirements, and mounting configuration should be verified against the specific application.
What should be verified before using ACi 4420H in an existing system?
Electrical supply characteristics, mechanical mounting compatibility, and airflow requirements should be checked against the existing installation.
