910 mm HyBlade Axial Design

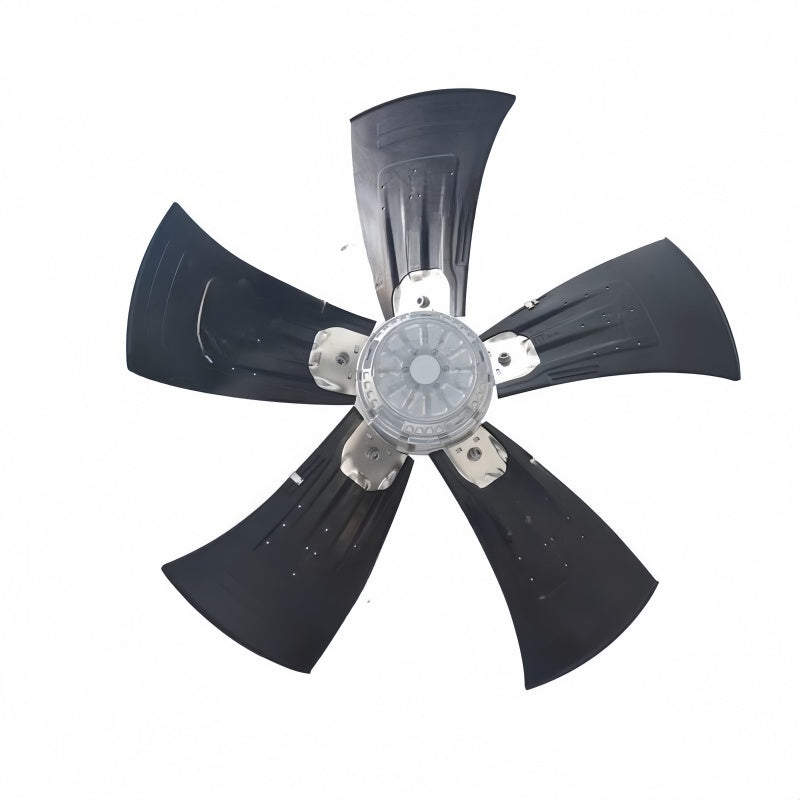

The A6D910-AA01-01 is a three-phase AC axial fan with a 910 mm HyBlade impeller and five sickle-shaped blades.
Ebmpapst A6D910-AA01-01 Axial Fan 400VAC 910mm 2480W 885RPM
Available in stock (200)
Regular price
$1,748.21
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | A6D910-AA01-01 |
| Product Category | Axial Fan |
| Fan Type | AC Axial Fan, HyBlade, Sickle-Shaped Blades |
| Motor Model | M6D138-NA |
| Fan Size | 910 mm |
| Phase | 3-Phase |
| Rated Voltage | 400 VAC |
| Frequency | 50 Hz |
| Power Input | 2480 W Delta / 1570 W Star |
| Current Draw | 5.15 A Delta / 2.9 A Star |
| Speed | 885 RPM Delta / 685 RPM Star |
| Maximum Back Pressure | 150 Pa Delta / 90 Pa Star |
| Pressure at Optimum Efficiency | 142 Pa |
| Number of Blades | 5 |
| Blade Material | Sheet Aluminum Insert with PP Plastic Coating |
| Airflow Direction | V, Exhaust Over Struts |
| Direction of Rotation | Clockwise, Viewed Toward Rotor |
| Degree of Protection | IP54 |
| Insulation Class | Class F |
| Bearing Type | Ball Bearing |
| Electrical Connection | Terminal Box |
| Weight | 27.8 kg |
Key Features
400 VAC Three-Phase Supply
The manufacturer nominal data specifies 400 VAC and 50 Hz operation with delta and star connection configurations.
2.48/1.57 kW Power Input
At maximum load, the documented power input is 2480 W with delta connection and 1570 W with star connection.
885/685 RPM Speed
The documented maximum-load speed is 885 RPM with delta connection and 685 RPM with star connection.
HyBlade Impeller Construction
The five-blade impeller uses sheet aluminum inserts with PP plastic coating and a documented clockwise direction of rotation when viewed toward the rotor.
IP54 Protection
The documented configuration specifies IP54 protection, Class F insulation, ball bearings and a terminal-box electrical connection.
Applications
- Industrial refrigeration equipment
- Condenser cooling systems
- HVAC equipment
- Heat exchanger airflow
- Industrial ventilation systems
- Large equipment cooling
- Machinery air circulation
- Axial fan system maintenance
Purchase Information
We support online purchase of the Ebmpapst A6D910-AA01-01 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst A6D910-AA01-01?
It is a three-phase AC axial fan with a 910 mm HyBlade impeller and five sickle-shaped blades.
What voltage does A6D910-AA01-01 use?
The manufacturer nominal data specifies 400 VAC.
What frequency does A6D910-AA01-01 use?
The documented nominal frequency is 50 Hz.
What connection configurations are specified?
The manufacturer provides nominal data for both delta and star connections at 400 VAC.
What is the power input?
Maximum-load power input is 2480 W with delta connection and 1570 W with star connection.
What is the current draw?
The documented current draw is 5.15 A with delta connection and 2.9 A with star connection.
What is the fan speed?
The documented speed is 885 RPM with delta connection and 685 RPM with star connection.
What is the fan size?
The nominal fan size is approximately 910 mm.
What airflow is documented?
Manufacturer ErP data specifies 21770 m³/h at the optimum-efficiency operating point with a static pressure increase of 142 Pa.
What is the protection rating?
The documented protection rating is IP54 with Class F insulation.
What motor is used?
The manufacturer datasheet identifies the motor as M6D138-NA.
What should be checked before ordering A6D910-AA01-01?
Check the complete model number, 400 VAC three-phase supply, 50 Hz frequency, delta or star connection, 910 mm fan size, electrical ratings, airflow requirements and mounting arrangement before purchasing.
