800 mm HyBlade Axial Design

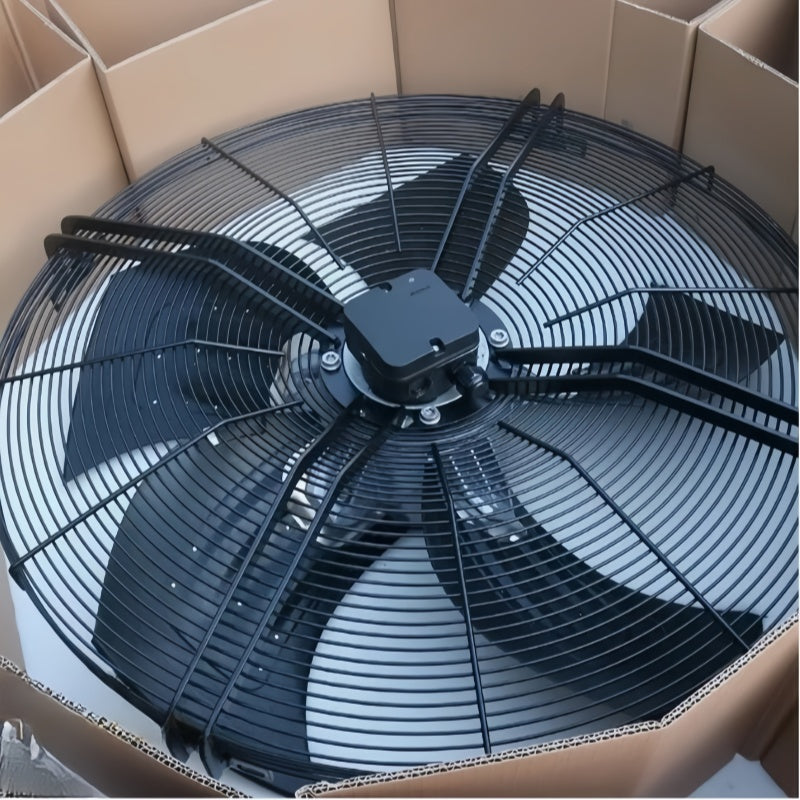

The A6D800-AD01-01 is a three-phase AC axial fan with an 800 mm HyBlade impeller and five sickle-shaped blades.
Ebmpapst A6D800-AD01-01 Axial Fan 400VAC 800mm 1940/1210W
Available in stock (200)
Regular price
$939.65
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | A6D800-AD01-01 |
| Product Category | Axial Fan |
| Series | A6D800 |
| Fan Type | AC Axial Fan, HyBlade, Sickle-Shaped Blades |
| Motor Model | M6D138-LA |
| Fan Size | 800 mm |
| Phase | 3-Phase |
| Rated Voltage | 400 VAC |
| Connection | Delta / Star |
| Frequency | 50 Hz |
| Power Input | 1940 W Delta / 1210 W Star |
| Current Draw | 3.9 A Delta / 2.23 A Star |
| Speed | 880 RPM Delta / 670 RPM Star |
| Maximum Back Pressure | 160 Pa Delta / 92 Pa Star |
| Air Flow at Optimum Efficiency | 17215 m³/h |
| Static Pressure at Optimum Efficiency | 124 Pa |
| Number of Blades | 5 |
| Blade Material | Sheet Aluminum Insert with PP Plastic Coating |
| Airflow Direction | V |
| Direction of Rotation | Clockwise, Viewed Toward Rotor |
| Degree of Protection | IP54 |
| Insulation Class | Class F |
| Bearing Type | Ball Bearing |
| Electrical Connection | Terminal Box |
| Motor Protection | Thermal Overload Protector |
| Operating Mode | S1 |
| Installation Position | Any |
| Weight | Approx. 24 kg |
Key Features
400 VAC Three-Phase Supply
Manufacturer nominal data specifies 400 VAC and 50 Hz operation with both delta and star connection configurations.
1940/1210 W Power Input
The documented maximum-load power input is 1940 W with delta connection and 1210 W with star connection.
880/670 RPM Speed
The documented maximum-load speed is 880 RPM with delta connection and 670 RPM with star connection.
HyBlade Impeller
The five-blade impeller uses sheet aluminum inserts with PP plastic coating and has clockwise rotation when viewed toward the rotor.
IP54 Protection
The documented configuration specifies IP54 protection, Class F insulation, ball bearings and thermal overload protection.
Applications
- Industrial refrigeration equipment
- Condenser cooling systems
- HVAC equipment
- Heat exchanger airflow
- Industrial ventilation systems
- Large equipment cooling
- Machinery air circulation
- Axial fan system maintenance
Purchase Information
We support online purchase of the Ebmpapst A6D800-AD01-01 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst A6D800-AD01-01?
It is a three-phase AC axial fan with an 800 mm HyBlade impeller and sickle-shaped blades.
What voltage does A6D800-AD01-01 use?
The manufacturer nominal data specifies 400 VAC.
What frequency does A6D800-AD01-01 use?
The documented nominal frequency is 50 Hz.
What connection configurations are specified?
The manufacturer provides nominal data for delta and star connections at 400 VAC.
What is the power input?
The documented maximum-load power input is 1940 W with delta connection and 1210 W with star connection.
What is the current draw?
The documented current draw is 3.9 A with delta connection and 2.23 A with star connection.
What is the fan speed?
The documented speed is 880 RPM with delta connection and 670 RPM with star connection.
What is the fan size?
The documented nominal fan size is 800 mm.
What airflow is documented?
Manufacturer ErP data specifies 17215 m³/h at the optimum-efficiency operating point with a static pressure increase of 124 Pa.
What is the protection rating?
The documented protection rating is IP54 with Class F insulation.
What motor is used?
The manufacturer data identifies the motor as M6D138-LA.
What should be checked before ordering A6D800-AD01-01?
Check the complete model number, 400 VAC three-phase supply, 50 Hz frequency, delta or star connection, 800 mm fan size, electrical ratings, airflow requirements and mounting arrangement before purchasing.
