300mm AC Axial Fan
Large-diameter axial fan with a 300 x 100 mm frame for high-volume air movement from a 230 VAC supply.
1 / 1
Ebmpapst

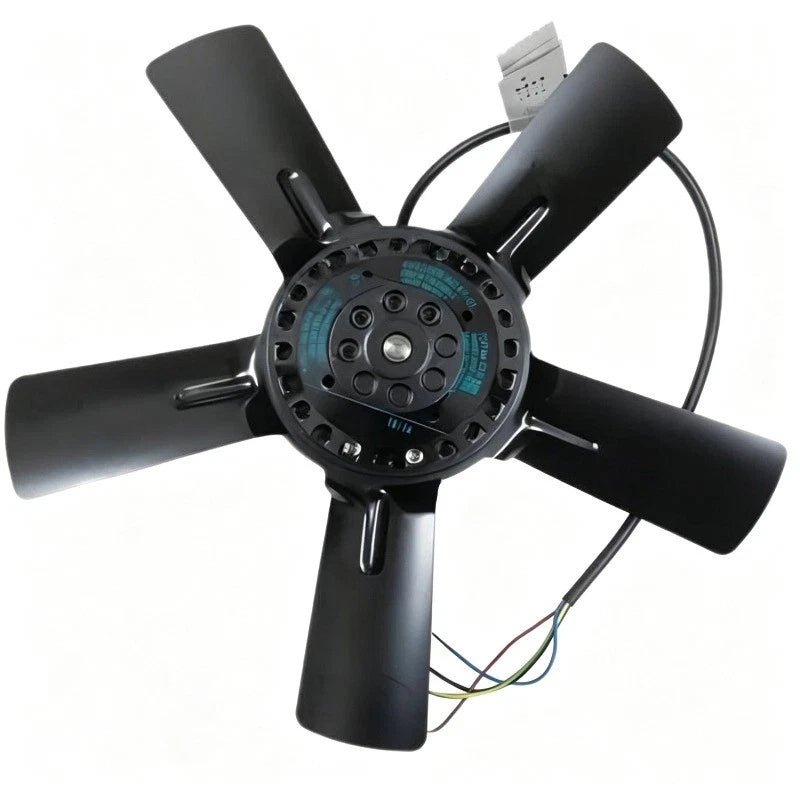

Ebmpapst A2E300-AC47-01 Axial Fan 230V 300mm 160W
PRODUCT PRICE
USD
$382.42
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | A2E300-AC47-01 |
| Product Category | Axial Fan |
| Fan Type | AC Axial Fan |
| Nominal Voltage | 230 VAC |
| Frequency | 50 / 60 Hz |
| Power Consumption | 140 W |
| Current Rating | 0.62 A (50 Hz) / 0.83 to 0.88 A (60 Hz) |
| Speed | 2650 RPM (50 Hz) / 2900 RPM (60 Hz) |
| Air Flow | 2440 m³/h (1437.2 CFM / 40.24 m³/min) |
| Noise Level | 75 dBA |
| Impeller Diameter | 300 mm |
| Dimensions | Ø300 x 100 mm |
| Bearing Type | Ball Bearing |
| Housing Material | Metal |
| Insulation Class | B |
| IP Rating | IP44 |
| Operating Temperature | -25 to +55 °C |
| Termination | Cable x 4 leads, 0.45 m |
Key Features
2440 m³/h Air Flow
Delivers approximately 2440 m³/h (1437.2 CFM) at the rated operating point for demanding ventilation applications.
Dual Frequency Operation
Rated at 140 W and 2650 RPM at 50 Hz, with higher speed and current at 60 Hz.
IP44 Protection
IP44-rated metal housing for protection against solid objects and splashing water in industrial environments.
Ball Bearing Construction
Ball bearing assembly with a published operating temperature range of -25 to +55 °C.
Applications
- Industrial high-volume ventilation
- Heat exchanger and cooling tower airflow
- Large enclosure and cabinet cooling
- HVAC air movement
- Process cooling and exhaust
- Machinery thermal management
Purchase Information
We support online purchase of the Ebmpapst A2E300-AC47-01 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst A2E300-AC47-01? The A2E300-AC47-01 is a 230 VAC axial fan with a 300 mm impeller and a 100 mm depth, designed for high-volume air movement.
What is the voltage and frequency of the A2E300-AC47-01? It operates on 230 VAC at 50/60 Hz.
What is the air flow of the A2E300-AC47-01? Air flow is rated at 2440 m³/h (1437.2 CFM or 40.24 m³/min).
What is the power consumption of the A2E300-AC47-01? Power consumption is 140 W.
What is the current rating of the A2E300-AC47-01? Current rating is 0.62 A at 50 Hz and 0.83 to 0.88 A at 60 Hz.
What is the speed of the A2E300-AC47-01? Speed is 2650 RPM at 50 Hz and 2900 RPM at 60 Hz.
What is the noise level of the A2E300-AC47-01? The published noise level is 75 dBA.
What is the IP rating of the A2E300-AC47-01? The fan has an IP44 rating.
What is the operating temperature range of the A2E300-AC47-01? The published operating temperature range is -25 to +55 °C.
What should be checked before ordering the A2E300-AC47-01? Verify the 230 VAC 50/60 Hz supply, the 300 mm impeller clearance, the IP44 installation environment, the 4-lead cable connection, and the ambient temperature at the mounting location.
