300 mm Axial Design

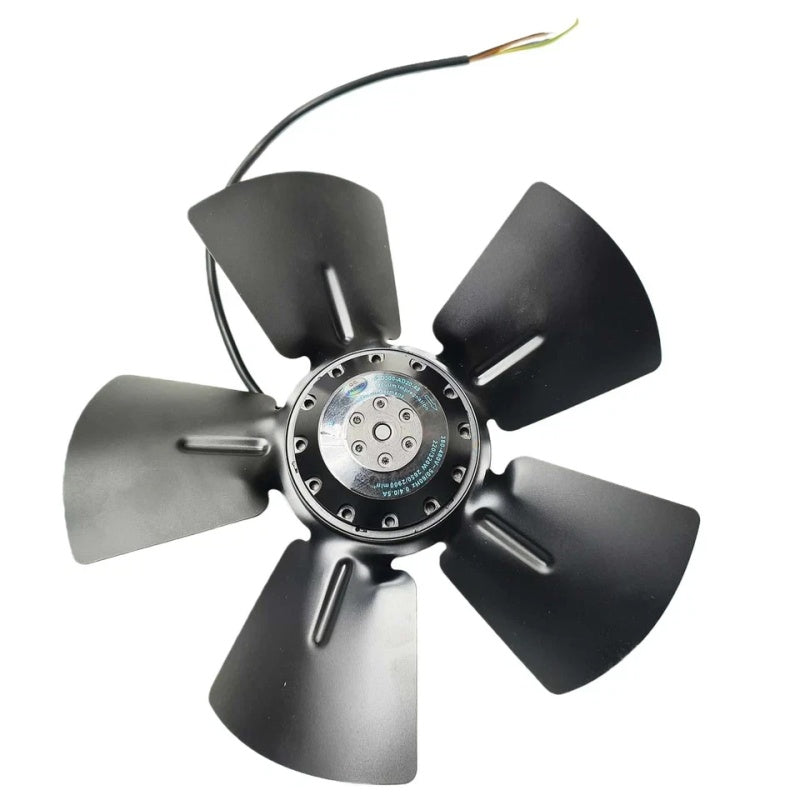

The A2D300-AD20-49 is an Ebmpapst three-phase AC axial fan with a 300 mm fan size for equipment cooling and ventilation applications.
1 / 7
Ebmpapst
Ebmpapst A2D300-AD20-49 Axial Fan 230/400VAC 300mm 220/320W
PRODUCT PRICE
USD
$150.28
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | A2D300-AD20-49 |
| Product Category | Axial Fan |
| Series | A2D300 |
| Fan Type | AC Axial Fan |
| Motor Model | M2D068-CF |
| Fan Size | 300 mm |
| Phase | 3-Phase |
| Rated Voltage | 400 VAC |
| Frequency | 50/60 Hz |
| Power Input | 115 W at 50 Hz / 165 W at 60 Hz |
| Rated Current | 0.26 A at 50 Hz / 0.30 A at 60 Hz |
| Speed | 2300 RPM at 50 Hz / 2600 RPM at 60 Hz |
| Number of Blades | 5 |
| Blade Material | Sheet Steel |
| Degree of Protection | IP44 |
| Insulation Class | Class F |
| Bearing Type | Ball Bearing |
| Motor Protection | Thermal Overload Protector |
| Direction of Rotation | Counterclockwise, Viewed Toward Rotor |
| Weight | Approx. 2.6 kg |
Key Features
400 VAC Three-Phase Supply
The documented electrical configuration uses a three-phase 400 VAC supply with operating ratings for both 50 Hz and 60 Hz.
115/165 W Power Input
The documented power input is 115 W at 50 Hz and 165 W at 60 Hz.
2300/2600 RPM Speed
The documented rotational speed is 2300 RPM at 50 Hz and 2600 RPM at 60 Hz.
IP44 Protection
The fan is specified with IP44 protection and Class F motor insulation for compatible equipment installations.
Ball Bearing Motor
The M2D068-CF motor uses ball bearings and incorporates thermal overload protection.
Applications
- Industrial equipment cooling
- Electrical cabinet ventilation
- Control panel thermal management
- Power electronics cooling
- Refrigeration equipment ventilation
- HVAC equipment
- Industrial machinery cooling
- Axial fan system maintenance
Purchase Information
We support online purchase of the Ebmpapst A2D300-AD20-49 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst A2D300-AD20-49?
It is a three-phase AC axial fan with a 300 mm fan size for industrial cooling and ventilation applications.
What voltage does A2D300-AD20-49 use?
The documented rated voltage is 400 VAC.
What frequency does A2D300-AD20-49 support?
The fan has documented operating ratings for both 50 Hz and 60 Hz.
What is the power input?
The documented power input is 115 W at 50 Hz and 165 W at 60 Hz.
What is the rated current?
The documented current is 0.26 A at 50 Hz and 0.30 A at 60 Hz.
What is the fan speed?
The documented speed is 2300 RPM at 50 Hz and 2600 RPM at 60 Hz.
What is the fan size?
The documented nominal fan size is 300 mm.
What motor is used?
The technical data identifies the motor as M2D068-CF.
What is the protection rating?
The fan is specified with IP44 protection and Class F insulation.
What bearing type is used?
The motor uses ball bearings.
What motor protection is provided?
The documented motor configuration incorporates a thermal overload protector.
What should be checked before ordering A2D300-AD20-49?
Check the complete model number, 400 VAC three-phase supply, 50/60 Hz frequency, 300 mm fan size, electrical ratings, connection arrangement and mounting requirements before purchasing.
Need help confirming a model?
Send us your part number and technical requirements.
