400 VAC Three-Phase Supply
Operates from a 400 VAC supply for higher-power industrial air movement.
1 / 1
Ebmpapst

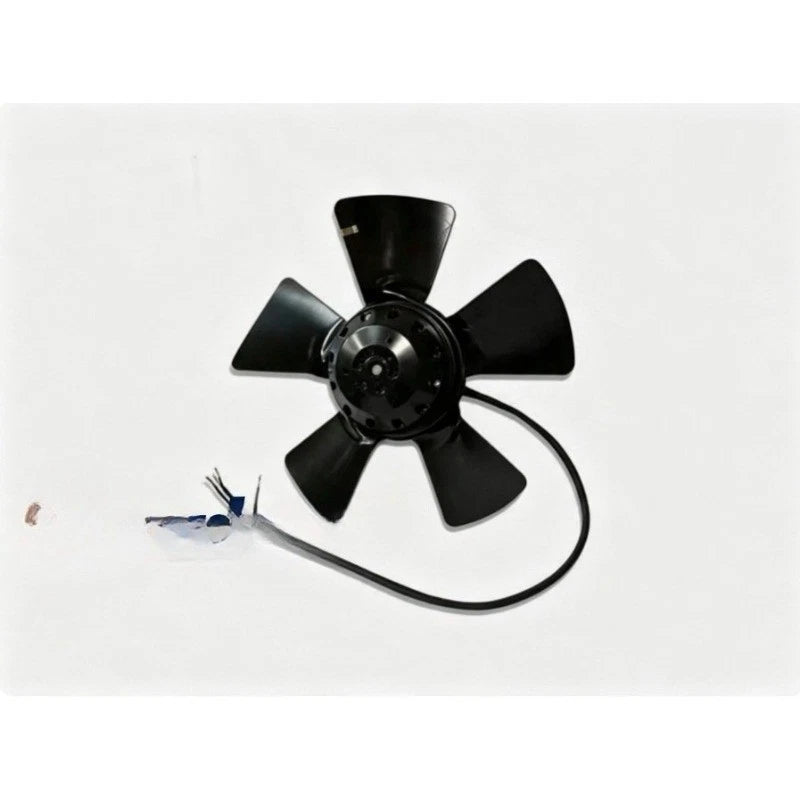

Ebmpapst A2D250-AA06-25 Axial Fan 400VAC 250mm 100W
PRODUCT PRICE
USD
$325.05
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | A2D250-AA06-25 |
| Product Category | Axial Fan |
| Supply Voltage | 400 VAC |
| Fan Diameter | 250 mm |
| Power Consumption | 110 W |
| Maximum Current | 0.22 A |
| Speed | 2650 rpm |
| Air Flow | 1720 m³/h |
| Noise Level | 72 dB |
| Bearing Type | Ball bearing |
| IP Rating | IP44 |
| External Depth | 83 mm |
| Fan Frame Type | Rectangular |
| Direction of Curve | Forward |
Key Features
250 mm Fan Diameter
Large 250 mm diameter impeller for high-volume air flow.
1720 m³/h Air Flow
Delivers 1720 m³/h at 2650 rpm.
110 W Power Consumption
Power consumption is 110 W with a maximum current of 0.22 A.
IP44 Protection
IP44 protection rating for installation- and position-dependent environmental protection.
Ball Bearing
Equipped with a ball bearing for the fan shaft.
Applications
- Industrial ventilation systems
- Condenser and heat exchanger cooling
- Large control cabinet thermal management
- HVAC air handling equipment
- Process cooling in industrial plants
- Transformer and power equipment cooling
- Dust extraction and air circulation
Purchase Information
We support online purchase of the Ebmpapst A2D250-AA06-25 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst A2D250-AA06-25? The A2D250-AA06-25 is a 400 VAC axial fan with a 250 mm fan diameter.
What is the supply voltage? The supply voltage is 400 VAC.
What is the air flow? The air flow is 1720 m³/h at 2650 rpm.
What is the power consumption? The power consumption is 110 W, with a maximum current of 0.22 A.
What is the noise level? The noise level is 72 dB.
What is the IP rating? The IP rating is IP44.
What is the external depth? The external depth is 83 mm.
What type of bearing does the fan use? It uses a ball bearing.
