3-Phase 230/400 VAC Operation
The A2D200-AA02-01 operates on a 3-phase 230/400 VAC supply at 50/60 Hz, supporting use in industrial systems with either voltage configuration.
1 / 3
Ebmpapst

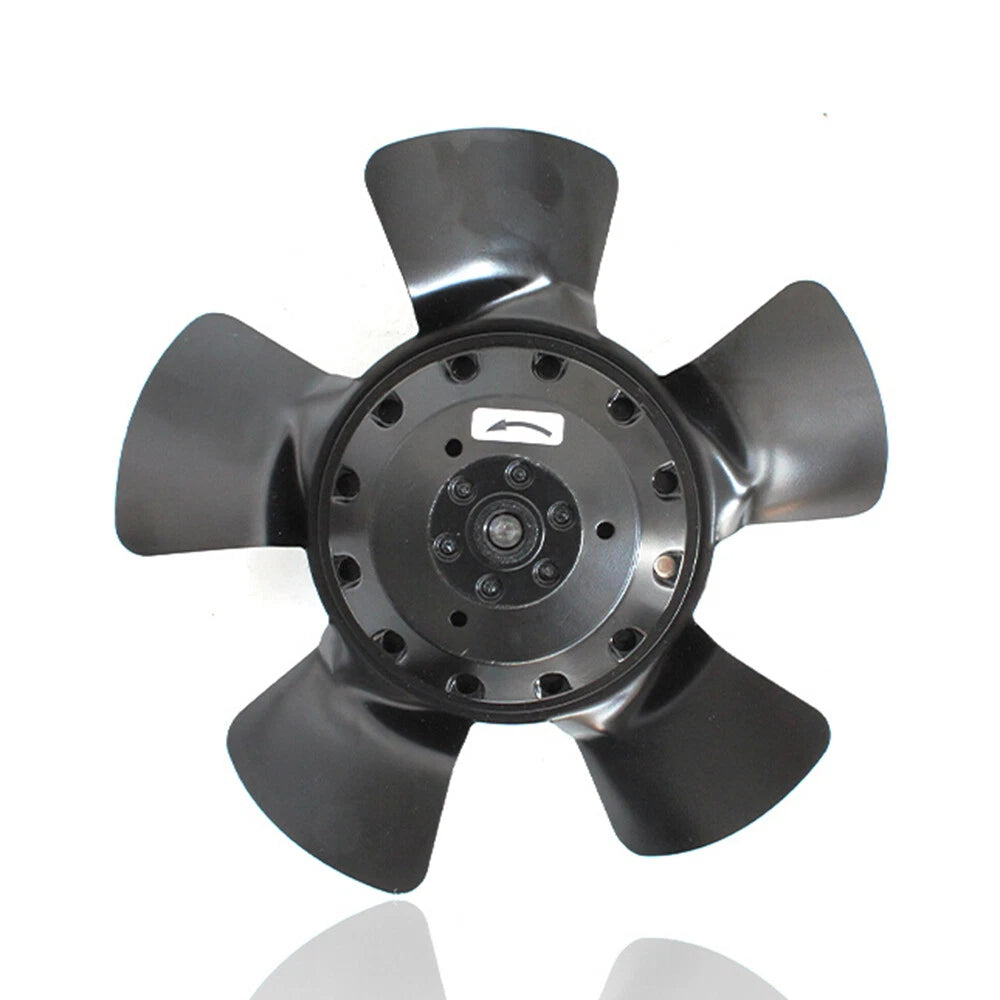

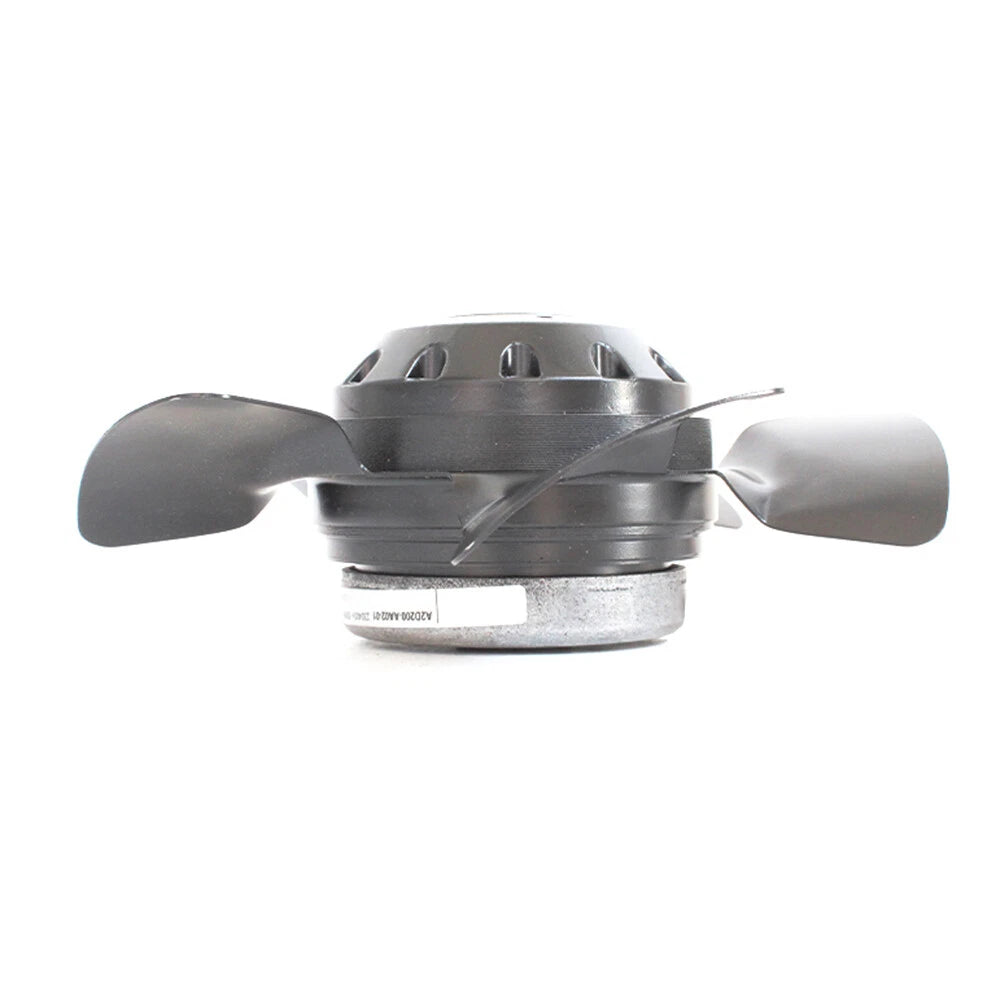

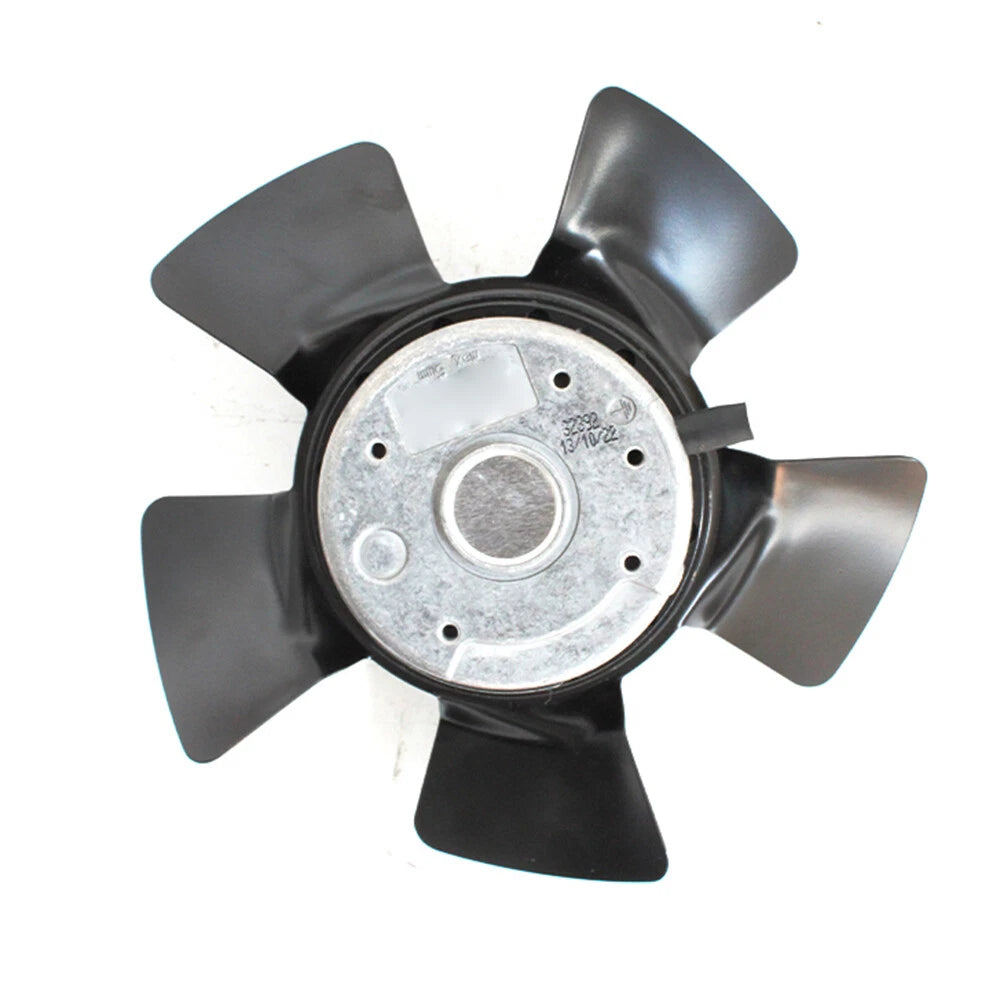

Ebmpapst A2D200-AA02-01 Axial Fan 400V 200mm 40W
PRODUCT PRICE
USD
$219.96
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | A2D200-AA02-01 |
| Product Category | Axial Fan |
| Motor Type | 3-Phase AC |
| Nominal Voltage | 230/400 VAC |
| Frequency | 50/60 Hz |
| Power Rating | 53 W / 70 W |
| Current Draw | 0.15 A / 0.14 A / 0.26 A / 0.24 A |
| Speed | 2800 rpm / 3150 rpm |
| Fan Size | Ø195 x 75 mm |
| Air Flow | 830 m³/h (15.667 m³/min) |
| Noise Level | 70 dBA |
| Protection Rating | IP44 |
Key Features
830 m³/h Airflow
The fan delivers 830 m³/h airflow within a Ø195 x 75 mm axial format, with speeds of 2800 rpm at 50 Hz and 3150 rpm at 60 Hz.
Dual Power and Current Ratings
Power is documented at 53 W and 70 W, with current draws of 0.15/0.14 A and 0.26/0.24 A depending on voltage and frequency configuration.
IP44 Protection
The fan is rated IP44, providing protection against solid objects over 1 mm and water splashing, and carries a 70 dBA noise rating.
Applications
- Industrial ventilation
- Control cabinet cooling
- Heat exchanger airflow
- Process cooling assemblies
- OEM axial fan replacement
- Equipment thermal management
- Air-cooled condenser airflow
Purchase Information
We support online purchase of the Ebmpapst A2D200-AA02-01 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst A2D200-AA02-01? It is a Ø195 x 75 mm axial fan that operates on a 3-phase 230/400 VAC supply.
What is the airflow of the A2D200-AA02-01? Airflow is 830 m³/h.
What power does the A2D200-AA02-01 consume? Power is documented at 53 W and 70 W in different references.
What current does the A2D200-AA02-01 draw? Current draws of 0.15/0.14 A and 0.26/0.24 A are documented depending on voltage and frequency.
What speed does the A2D200-AA02-01 run at? Speed is 2800 rpm at 50 Hz and 3150 rpm at 60 Hz.
What is the protection rating of the A2D200-AA02-01? The fan is rated IP44.
What is the noise level of the A2D200-AA02-01? Noise level is 70 dBA.
What should be verified before ordering the A2D200-AA02-01? Confirm the 3-phase 230/400 VAC supply configuration, 50/60 Hz frequency, Ø195 x 75 mm installation space, required 830 m³/h airflow, and the specific power/current ratings for the intended voltage.
