230 VAC Operation
Designed for 230 VAC rated voltage with 50/60 Hz frequency support for standard industrial AC power systems.
1 / 7
Ebmpapst

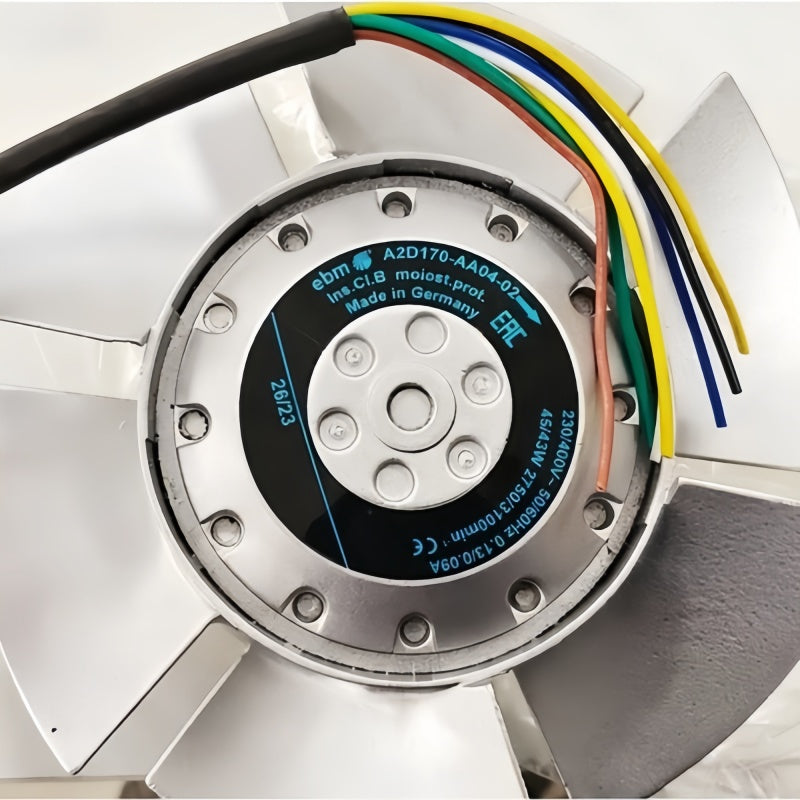

Ebmpapst A2D170-AA04-02 AC Axial Fan 230VAC 47W
PRODUCT PRICE
USD
$145.63
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | A2D170-AA04-02 |
| Product Category | AC Axial Fan |
| Rated Voltage | 230 VAC |
| Rated Current | 0.30 A |
| Power Input | 47 W |
| Rated Frequency | 50/60 Hz |
| Speed | 3100 RPM |
| Air Flow | 353 CFM |
| Air Pressure | 280 Pa |
| Noise Level | 58 dBA |
| Dimensions | 170 mm x 170 mm x 55 mm |
| Protection Rating | IP44 |
| Insulation Class | F |
Key Features
47 W Power Input
Rated power input of 47 W provides consistent airflow performance for demanding cooling applications.
3100 RPM Speed
High-speed operation at 3100 RPM delivers substantial air movement for equipment ventilation and heat dissipation.
353 CFM Air Flow
Delivers 353 CFM of airflow with 280 Pa static pressure for effective cooling of industrial enclosures and machinery.
170 mm Frame
Compact 170 mm x 170 mm x 55 mm dimensions for integration into equipment panels and ventilation systems.
IP44 Protection
IP44 rated protection against solid objects and water splashes, suitable for industrial environments.
Applications
- Industrial equipment cooling systems
- Electrical enclosure ventilation
- Control cabinet thermal management
- Machine tool cooling
- Power supply and drive ventilation
- HVAC equipment air circulation
- Industrial automation panel cooling
- Telecommunications equipment cooling
Purchase Information
We support online purchase of the Ebmpapst A2D170-AA04-02 AC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst A2D170-AA04-02?
Ebmpapst A2D170-AA04-02 is an AC axial fan with a 170 mm frame size designed for industrial cooling and ventilation applications.
What is the voltage rating of A2D170-AA04-02?
The fan operates at 230 VAC rated voltage with 50/60 Hz frequency support.
What is the power input of A2D170-AA04-02?
The rated power input is 47 W.
What is the airflow rating of A2D170-AA04-02?
The fan delivers 353 CFM of airflow with 280 Pa static pressure.
What are the dimensions of A2D170-AA04-02?
The fan measures 170 mm x 170 mm x 55 mm.
What is the speed rating of A2D170-AA04-02?
The rated speed is 3100 RPM.
What is the protection rating of A2D170-AA04-02?
The fan has an IP44 protection rating.
What is the noise level of A2D170-AA04-02?
The published noise level is 58 dBA.
What applications can A2D170-AA04-02 be considered for?
This fan can be considered for industrial equipment cooling, electrical cabinet ventilation, control cabinet thermal management, and HVAC air circulation after confirming electrical and mechanical requirements.
What should be checked before ordering A2D170-AA04-02?
Before ordering, verify the complete model number, rated voltage, frequency, mounting dimensions, airflow requirements, and environmental conditions for your specific installation.
