400/480 VAC Dual-Voltage Operation
The A2D160-AB22-06 operates on 400 VAC at 50 Hz and 480 VAC at 60 Hz, with speeds of 2800 rpm and 3350 rpm respectively.
1 / 4
Ebmpapst

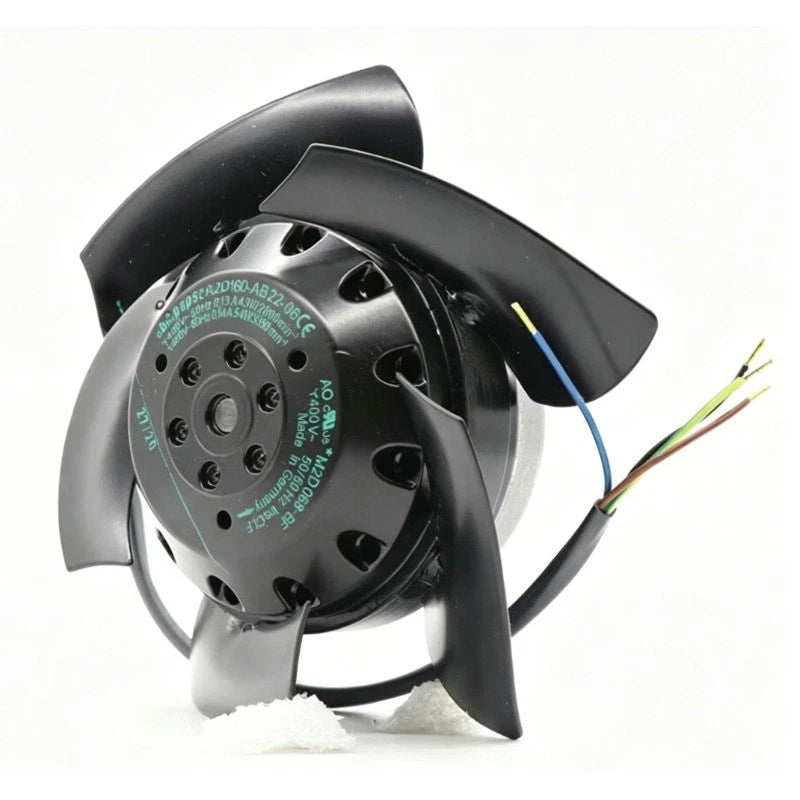

Ebmpapst A2D160-AB22-06 Axial Fan 400V 160mm 30W
PRODUCT PRICE
USD
$309.87
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | A2D160-AB22-06 |
| Product Category | Axial Fan |
| Nominal Voltage | 400 V / 480 V |
| Frequency | 50/60 Hz |
| Power | 43 W / 54 W |
| Current Draw | 0.13 A / 0.14 A |
| Speed | 2800 rpm / 3350 rpm |
| Fan Size | 160 mm |
| Dimensions | 160.5 x 62.5 mm |
Key Features
Single-Intake Axial Impeller
The fan uses a single-intake axial impeller with straight blades in a 160 mm frame, documented for industrial cooling applications.
43 W / 54 W Power Range
Power input is 43 W at 50 Hz and 54 W at 60 Hz, with current draws of 0.13 A and 0.14 A.
Spindle Servo Motor Cooling Context
The model is documented in spindle servo motor cooling applications, addressing thermal management in machine tool and drive systems.
Applications
- Spindle servo motor cooling
- Machine tool thermal management
- Industrial enclosure ventilation
- Drive system cooling
- OEM axial fan replacement
- Control cabinet airflow
- Equipment cooling in automation
Purchase Information
We support online purchase of the Ebmpapst A2D160-AB22-06 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst A2D160-AB22-06? It is a 160 mm axial fan that operates on 400 V / 480 VAC.
What power does the A2D160-AB22-06 consume? Power is 43 W at 50 Hz and 54 W at 60 Hz.
What current does the A2D160-AB22-06 draw? Current draw is 0.13 A and 0.14 A for the two operating conditions.
What speed does the A2D160-AB22-06 run at? Speed is 2800 rpm at 50 Hz and 3350 rpm at 60 Hz.
What is the fan size of the A2D160-AB22-06? The fan size is 160 mm, with dimensions of 160.5 x 62.5 mm.
What applications is the A2D160-AB22-06 associated with? It is documented in spindle servo motor cooling and related drive thermal management applications.
What should be checked before ordering the A2D160-AB22-06? Verify the 400 V / 480 VAC supply, 50/60 Hz frequency, 160.5 x 62.5 mm installation space, required airflow and cooling capacity, and the 0.13–0.14 A current draw.
Need help confirming a model?
Send us your part number and technical requirements.
