24 VDC Compact Fan
Operates from a 24 VDC nominal supply with a 12-26.5 VDC range in an 80 x 80 x 32 mm frame.
1 / 1
Ebmpapst

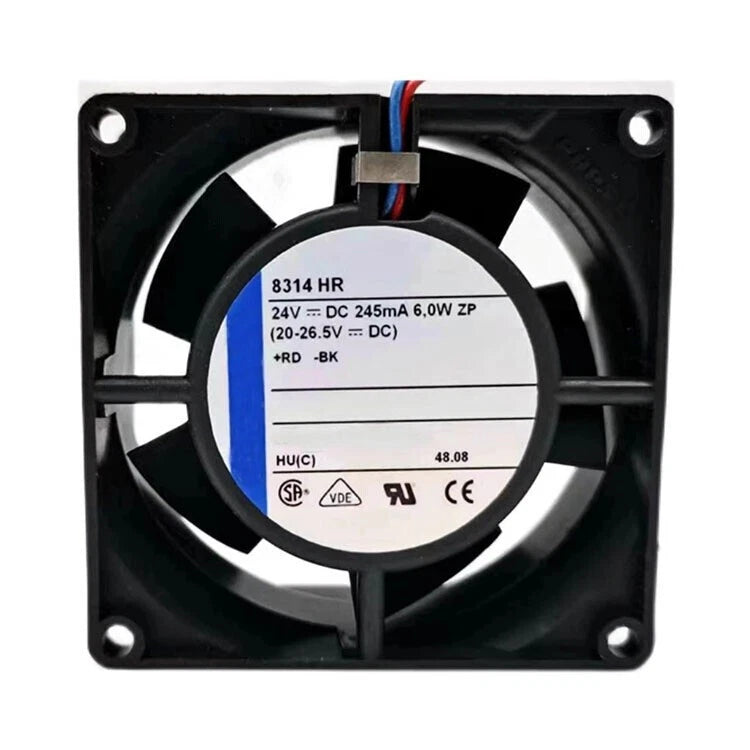

Ebmpapst 8314HR Axial Fan 24VDC 80x80x32mm 3.5W
PRODUCT PRICE
USD
$24.90
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 8314HR |
| Product Category | Axial Fan |
| Fan Type | DC Axial Fan |
| Nominal Voltage | 24 VDC |
| Voltage Range | 12-26.5 VDC |
| Power Consumption | 6 W |
| Speed | 5000 rpm |
| Air Flow | 80 m³/h / 47.1 CFM |
| Dimensions | 80 x 80 x 32 mm |
| Bearing Type | Ball Bearing |
| Noise Level | 48 dB(A) |
| Protection Rating | IP20 |
| Operating Temperature | -20°C to +75°C |
| Features | Locked Rotor Sensor |
| Termination | 2 Wire Leads |
Key Features
5000 rpm / 80 m³/h
Delivers 80 m³/h (47.1 CFM) air flow at 5000 rpm for compact cooling applications.
6 W Power Consumption
Published data identifies 6 W power consumption at the rated operating point.
Ball Bearing Construction
Equipped with ball bearings for the intended mounting orientation and continuous operation.
Locked Rotor Sensor
Documented with a locked rotor sensor feature for fan operation monitoring.
IP20 Protection
Rated IP20 for use in protected enclosure environments.
Applications
- Compact electronics cooling in 24 VDC systems
- Control cabinet and enclosure ventilation
- Power supply and drive thermal management
- Telecom and data equipment airflow
- Industrial automation panel cooling
- Medical and laboratory instrument ventilation
- Dense electronic assemblies with 80 mm mounting space
- General axial cooling in machinery and equipment
Purchase Information
We support online purchase of the Ebmpapst 8314HR Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 8314HR? It is a DC axial fan with an 80 x 80 x 32 mm frame.
What is the nominal voltage of the 8314HR? The nominal voltage is 24 VDC, with an operating range of 12 to 26.5 VDC.
What is the power consumption of the 8314HR? Published data identifies 6 W power consumption.
What are the speed and air flow? The fan operates at 5000 rpm and delivers 80 m³/h (47.1 CFM).
What is the noise level of the 8314HR? The documented noise level is 48 dB(A).
What bearing type does the 8314HR use? The fan uses ball bearings.
What protection rating does the 8314HR have? The fan is documented with IP20 protection.
What is the operating temperature range? The published operating temperature range is -20°C to +75°C.
Does the 8314HR have a locked rotor sensor? Yes. A locked rotor sensor feature is documented.
What should be checked before ordering the 8314HR? Check the complete 8314HR catalog number, 24 VDC supply, required air flow, 80 x 80 x 32 mm mounting space, IP20 suitability and termination requirements.
