HL High-Speed Variant
The /2HL designation identifies a higher-speed configuration within the 8314 platform, with published HL data indicating 4200 rpm and 39.4 CFM.
1 / 2
Ebmpapst

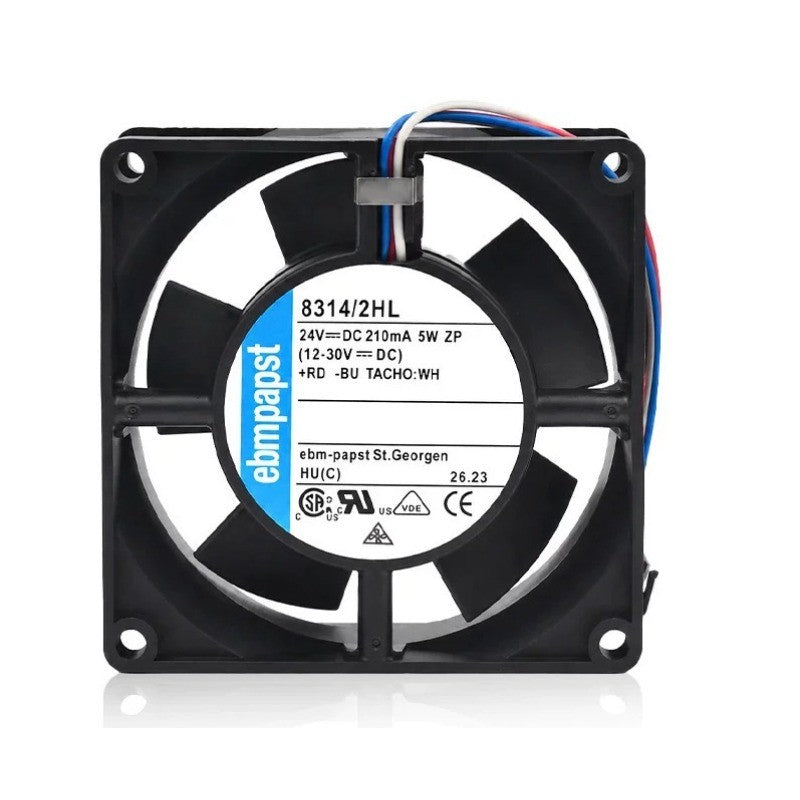

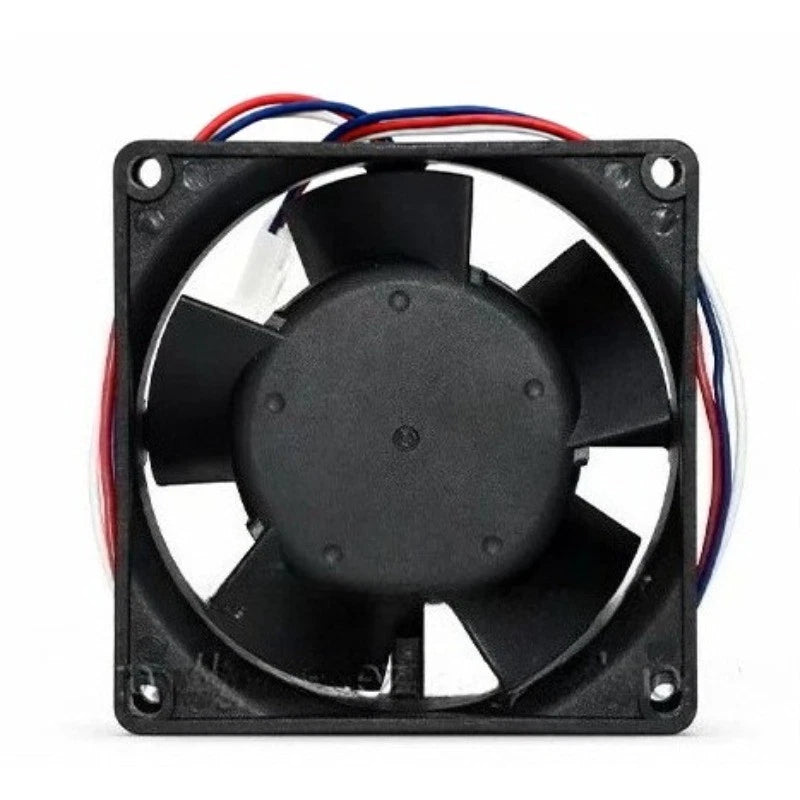

Ebmpapst 8314/2HL Axial Fan 24VDC 80x80x32mm
PRODUCT PRICE
USD
$32.71
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 8314/2HL |
| Product Category | Axial Fan |
| Fan Type | DC Axial Compact Fan |
| Nominal Voltage | 24 VDC |
| Voltage Range | 12-28 VDC (published for 8314 base platform) |
| Power Consumption | 4.3 W (published for HL variant) |
| Speed | 4200 rpm (published for HL variant) |
| Air Flow | 39.4 CFM / 1.12 m³/min (published for HL variant) |
| Dimensions | 80 x 80 x 32 mm |
| Bearing Type | Ball Bearing |
| Sound Level | 43 dB(A) (published for HL variant) |
| Speed Signal | Open collector speed signal output |
| Approvals | VDE, UL, CSA (published for 8314 platform) |
Key Features
Speed Signal Output
Published data for the 8314/2 configuration identifies a speed signal/open collector output, enabling fan-speed monitoring by the control system.
80 x 80 x 32 mm Standard Frame
Fits the widely used 80 mm square, 32 mm deep fan mounting envelope for electronics and control cabinet cooling.
24 VDC Operation
Operates at a nominal 24 VDC with a published voltage range of 12 to 28 VDC on the base 8314 platform.
Ball Bearing Construction
Uses a ball bearing for mounting-position flexibility in industrial and electronic cooling installations.
Applications
- Control cabinet and enclosure cooling
- Power electronics thermal management
- Industrial automation equipment ventilation
- Telecom and datacom cabinet airflow
- Compact DC cooling in electronic housings
- Medical and laboratory equipment cooling
- Speed-monitored forced-air cooling in 80 mm fan mounts
Purchase Information
We support online purchase of the Ebmpapst 8314/2HL Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 8314/2HL? The 8314/2HL is a DC axial compact fan in the 8314 platform with an HL high-speed configuration and a speed signal output.
What is the nominal voltage? The nominal voltage is 24 VDC, with published base-platform data indicating a 12-28 VDC operating range.
What is the speed and air flow? Published HL variant data indicates 4200 rpm and 39.4 CFM (1.12 m³/min).
What is the power consumption? Published HL variant data lists 4.3 W.
What is the sound level? Published HL variant data lists 43 dB(A).
Does the 8314/2HL provide a speed signal? Published data for the 8314/2 configuration identifies a speed signal/open collector output.
What are the dimensions? The fan has an 80 x 80 x 32 mm frame.
What bearing type is used? The 8314/2HL uses a ball bearing.
What approvals are associated with this platform? Published 8314 platform data identifies VDE, UL and CSA approvals; the exact approvals for the /2HL variant should be confirmed against the product label.
What should be checked before ordering? Verify the exact /2HL variant speed-signal configuration, 24 VDC supply availability, 80 x 80 x 32 mm mounting space, airflow requirement, 43 dB(A) acoustic suitability and the need for speed monitoring.
