80mm DC Axial Fan
Compact 80 x 80 x 38 mm tubeaxial fan designed for 24 VDC operation with a voltage range of 18 to 26.4 VDC.
1 / 3
Ebmpapst

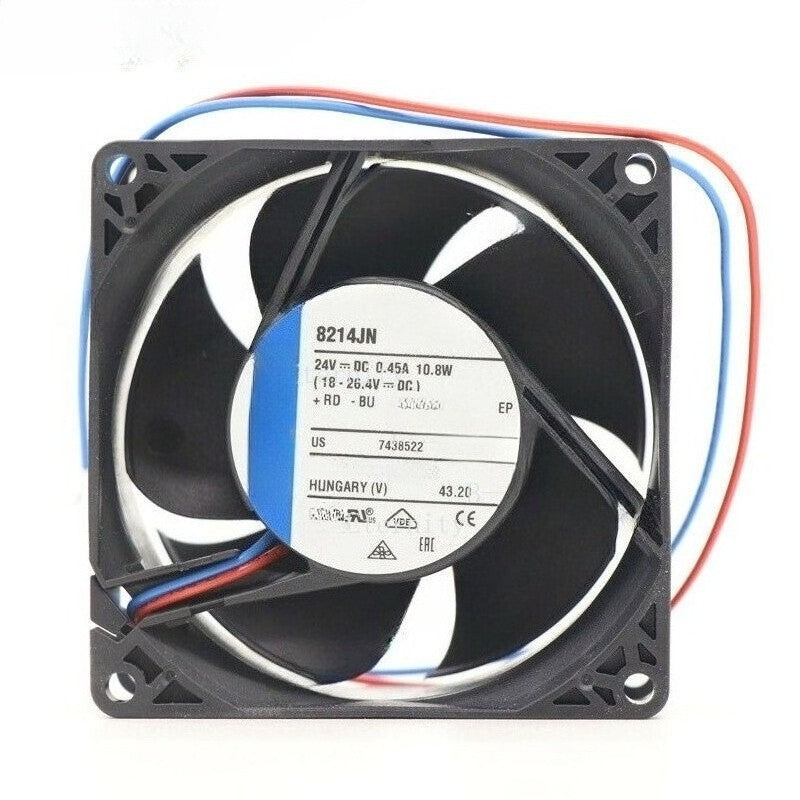

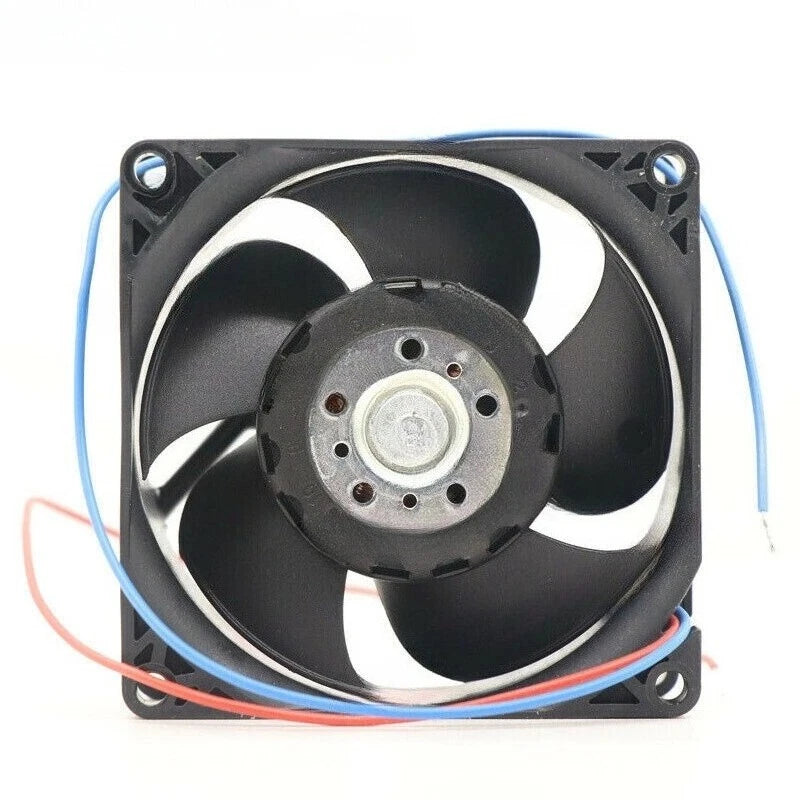

Ebmpapst 8214JN Axial Fan 24VDC 80x80x38mm 4.5W
PRODUCT PRICE
USD
$75.61
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 8214JN |
| Product Category | Axial Fan |
| Fan Type | Tubeaxial Fan |
| Nominal Voltage | 24 VDC |
| Voltage Range | 18 to 26.4 VDC |
| Power Consumption | 10 W (nominal), 11 W (max) |
| Speed | 8400 RPM |
| Air Flow | 78 CFM (2.2 m³/min / 132 m³/h) |
| Noise Level | 55 dBA |

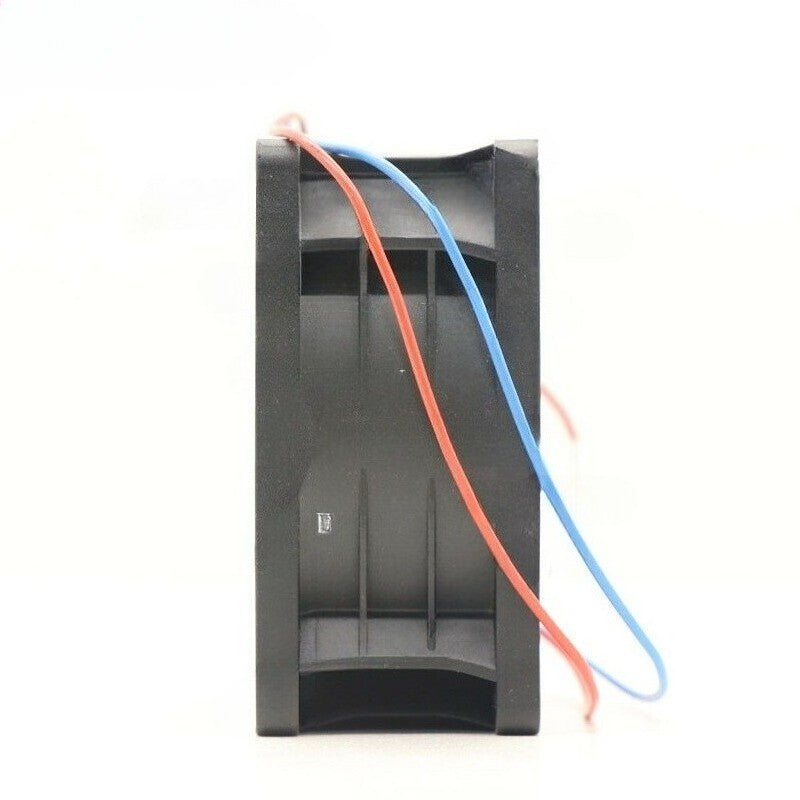

| Frame Dimensions | 80 x 80 x 38 mm |
| Bearing Type | Ball Bearing |
| Housing Material | Polybutylene Terephthalate (PBT) |
| IP Rating | IP20 |
| Max Ambient Temperature | 70 °C |
| Termination | 2 Wire Leads |
Key Features
8400 RPM High-Speed Operation
Nominal speed of 8400 RPM delivers an air flow of 78 CFM (132 m³/h) for forced-air cooling requirements.
Ball Bearing Construction
Equipped with ball bearings and a PBT housing for industrial thermal management use within the specified ambient conditions.
IP20 Protection
IP20-rated protection for use in environments where the fan is shielded from dust and moisture ingress.
2-Wire Lead Connection
Features 2 wire leads for straightforward electrical connection to a 24 VDC supply.
Applications
- Industrial control cabinet cooling
- Power supply thermal management
- Electronic enclosure forced-air ventilation
- Equipment cooling in automation systems
- Compact DC cooling applications
- Heat sink and component-level airflow
Purchase Information
We support online purchase of the Ebmpapst 8214JN Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 8214JN? The 8214JN is a 24 VDC tubeaxial fan with an 80 x 80 x 38 mm frame, commonly used for forced-air cooling in industrial and electronic equipment.
What is the voltage range of the 8214JN? The fan has a nominal voltage of 24 VDC and an operating voltage range of 18 to 26.4 VDC.
What is the air flow of the 8214JN? It delivers approximately 78 CFM (2.2 m³/min or 132 m³/h) at 8400 RPM.
What is the power consumption of the 8214JN? Nominal power consumption is listed as 10 W, with a maximum of 11 W.
What bearing type does the 8214JN use? The 8214JN uses ball bearings.
What is the noise level of the 8214JN? The published noise level is 55 dBA.
What is the IP rating of the 8214JN? The fan has an IP20 rating.
What is the maximum ambient temperature for the 8214JN? The maximum ambient temperature is specified as 70 °C.
How is the 8214JN connected? It uses 2 wire leads for electrical connection.
What should be checked before ordering the 8214JN? Verify the 24 VDC supply, the 80 x 80 x 38 mm mounting envelope, the 2-wire connection requirement, and the ambient temperature at the installation point.
