600 m³/h Airflow
Delivers 600 m³/h (353 CFM) airflow for industrial thermal management.
1 / 1
Ebmpapst

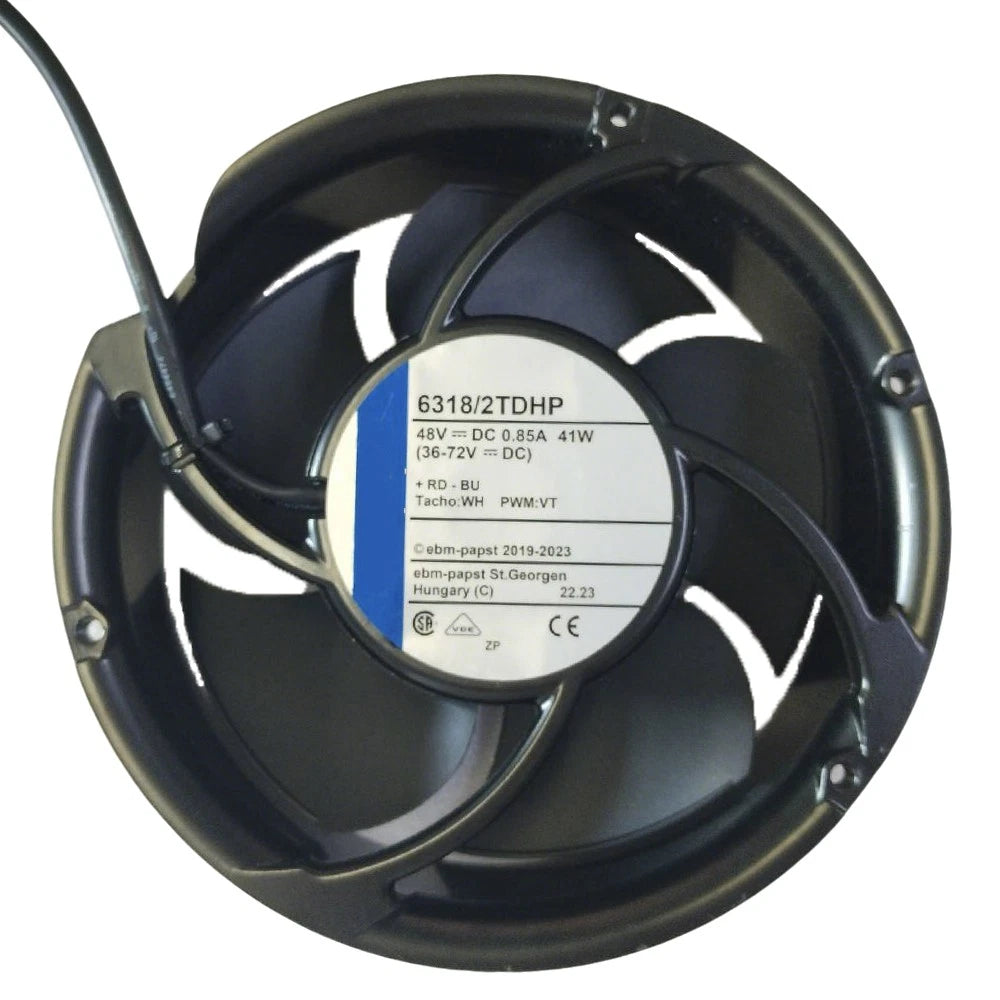

Ebmpapst 6318/2TDHP Axial Fan 48VDC 172x150x51mm 33W
PRODUCT PRICE
USD
$103.83
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 6318/2TDHP |
| Product Category | Axial Fan |
| Fan Type | DC Axial Fan |
| Rated Voltage | 48 VDC |
| Power Consumption | 41 W |
| Dimensions | 172 x 51 mm (round) |
| Airflow | 600 m³/h (353 CFM) |
| Static Pressure | 655 Pa |
| Speed | 6000 RPM |
| Noise Level | 64 dBA |
| Protection Rating | IP20 |
Key Features
655 Pa Static Pressure
Maximum static pressure of 655 Pa for airflow through moderate system impedance.
41 W / 48 VDC
Power consumption of 41 W at 48 VDC rated voltage.
IP20 Protection
IP20 rating for clean-air industrial enclosure environments.
6000 RPM Speed
Rated speed of 6000 RPM with a noise level of 64 dBA.
Applications
- Inverter cooling
- Power electronics thermal management
- Industrial enclosure ventilation
- Heat sink cooling
- DC-powered equipment cooling
- Control cabinet air movement
Purchase Information
We support online purchase of the Ebmpapst 6318/2TDHP Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 6318/2TDHP? It is a 48 VDC axial fan with a 172 mm round frame and 51 mm depth.
What airflow does the 6318/2TDHP deliver? The airflow is 600 m³/h (353 CFM).
What is the static pressure? The maximum static pressure is 655 Pa.
What is the power consumption? The power consumption is 41 W.
What is the speed? The rated speed is 6000 RPM.
What is the IP rating? The protection rating is IP20.
Need help confirming a model?
Send us your part number and technical requirements.
