60 mm Compact Design
The 612N/2HH is a DC axial compact fan with documented dimensions of 60 x 60 x 25 mm.

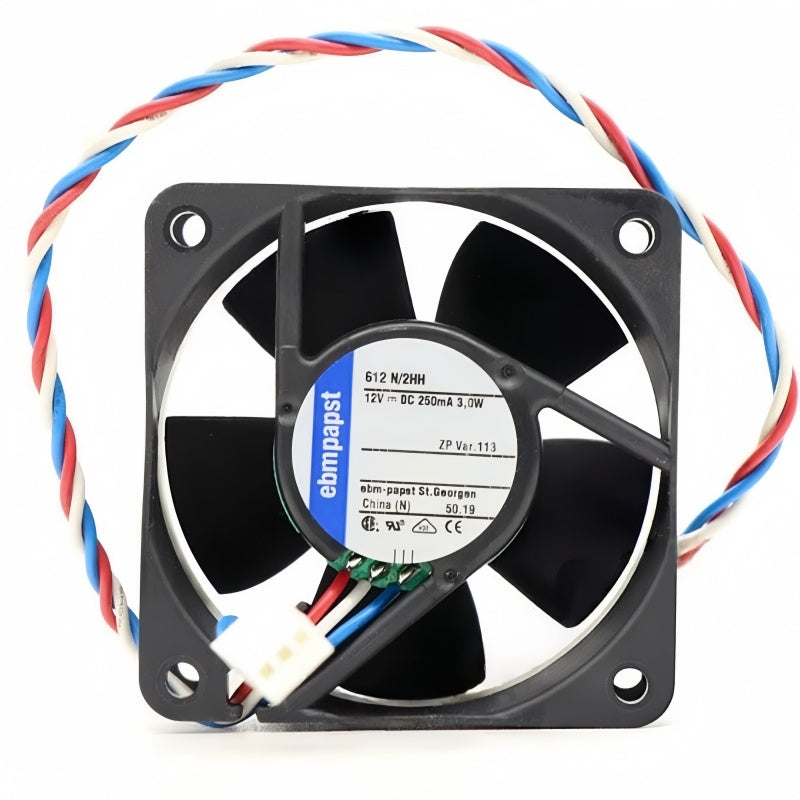

Ebmpapst 612N/2HH DC Axial Fan 12VDC 60x60x25mm 3W
Available in stock (200)
Regular price
$13.73
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 612N/2HH |
| Product Category | Axial Fan |
| Article Number | 9292206079 |
| Fan Type | DC Axial Compact Fan |
| Dimensions | 60 x 60 x 25 mm |
| Rated Voltage | 12 VDC |
| Operating Voltage Range | 8-13.2 VDC |
| Current Draw | 236 mA |
| Power Input | Approx. 3 W |
| Speed | 6350 RPM |
| Air Flow | 50 m³/h |
| Bearing Type | Ball Bearing |
| Electrical Connection | 3-Pin Stranded Wire |
Key Features
12 VDC Operation
The fan has a nominal 12 VDC supply rating with a documented operating voltage range of 8-13.2 VDC.
Approx. 3 W Input
The documented current rating of 236 mA at 12 VDC corresponds to approximately 3 W electrical input.
6350 RPM Speed
Published technical data specifies a rotational speed of 6350 RPM for the 612N/2HH.
50 m³/h Airflow
The documented airflow rating is 50 m³/h for this compact axial fan configuration.
Ball Bearing Design
The 612N/2HH uses ball bearings and a documented 3-pin stranded-wire electrical connection.
Applications
- Industrial electronics cooling
- Control panel thermal management
- Power electronics cooling
- Compact equipment ventilation
- Industrial control equipment
- Electronic enclosure cooling
- Machinery electronics cooling
- Fan system maintenance
Purchase Information
We support online purchase of the Ebmpapst 612N/2HH Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst 612N/2HH?
It is a compact DC axial fan with documented dimensions of 60 x 60 x 25 mm.
What voltage does 612N/2HH use?
The nominal supply voltage is 12 VDC.
What is the operating voltage range?
Published technical data specifies an operating range of 8-13.2 VDC.
What is the current draw?
Published technical data specifies a current rating of 236 mA.
What is the power input?
The electrical input is approximately 3 W at the nominal operating point.
What is the fan speed?
Published technical data specifies 6350 RPM.
What is the airflow?
The documented airflow rating is 50 m³/h.
What are the fan dimensions?
The documented dimensions are 60 x 60 x 25 mm.
What bearing type is used?
The 612N/2HH uses ball bearings.
What electrical connection is used?
Published product data specifies a 3-pin stranded-wire connection.
What is the article number?
The documented article number is 9292206079.
What should be checked before ordering 612N/2HH?
Check the complete 612N/2HH model designation, 12 VDC supply, 60 x 60 x 25 mm dimensions, current rating, connector configuration, airflow requirement and mounting arrangement before purchasing.
