135 mm AC Axial Fan

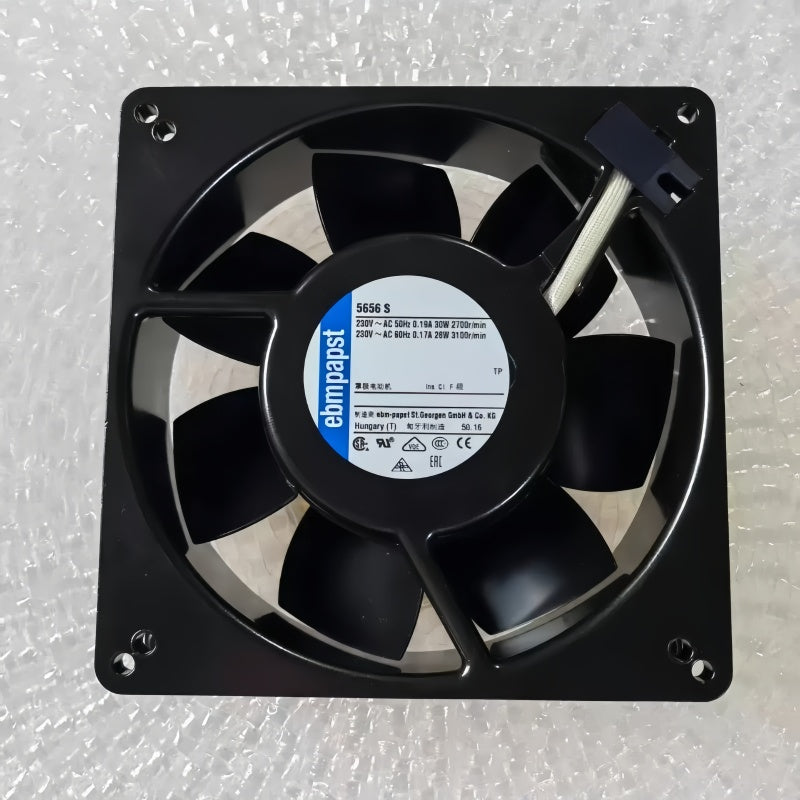

The Ebmpapst 5656S is an AC axial compact fan with dimensions of 135 x 135 x 38 mm for equipment cooling and ventilation applications.
1 / 7
Ebmpapst
Ebmpapst 5656S Axial Fan 230VAC 135x135x38mm 235m³/h 30W
PRODUCT PRICE
USD
$52.29
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 5656S |
| Product Category | Axial Fan |
| Series | 5600 |
| Fan Type | AC Axial Compact Fan |
| Motor Type | External Rotor Shaded-Pole Motor |
| Phase | 1-Phase |
| Rated Voltage | 230 VAC |
| Frequency | 50 Hz |
| Power Input | 30 W |
| Speed | 2700 RPM |
| Noise Level | 46 dBA |
| Dimensions | 135 x 135 x 38 mm |
| Degree of Protection | IP20 |
| Bearing Type | Ball Bearing |
| Impeller Material | Sheet Steel, Painted Black |
| Housing Material | Die-Cast Aluminum |
| Airflow Direction | Exhaust Over Struts |
| Direction of Rotation | Counterclockwise, Viewed Toward Rotor |
| Motor Protection | Thermal Cutout Switch |
| Electrical Connection | 2 Flat Plugs, 2.8 x 0.5 mm |
| Weight | 0.8 kg |
Key Features
230 VAC Operation
The documented electrical configuration uses a single-phase 230 VAC supply at 50 Hz with a 30 W power input.
235 m³/h Airflow
The manufacturer data specifies an airflow of 235 m³/h with a rotational speed of 2700 RPM.
Metal Construction
The fan uses a painted sheet-steel impeller and a die-cast aluminum housing for its compact axial fan assembly.
Ball Bearing Design
The 5656S uses ball bearings and an external rotor shaded-pole motor configuration.
Thermal Motor Protection
The motor is protected against overload by a thermal cutout switch and uses two flat plugs for electrical connection.
Applications
- Industrial equipment cooling
- Electrical enclosure ventilation
- Control panel cooling
- Electronic equipment cooling
- Power supply ventilation
- Industrial machinery cooling
- Equipment air circulation
- Axial fan system maintenance
Purchase Information
We support online purchase of the Ebmpapst 5656S Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst 5656S?
It is a single-phase AC axial compact fan for equipment cooling and ventilation applications.
What voltage does 5656S use?
The manufacturer nominal data specifies 230 VAC.
What frequency does 5656S use?
The manufacturer nominal data specifies 50 Hz.
What is the power input?
The documented power input is 30 W.
What is the fan speed?
The documented rotational speed is 2700 RPM.
What is the airflow?
The manufacturer data specifies an airflow of 235 m³/h.
What are the dimensions?
The documented dimensions are 135 x 135 x 38 mm.
What is the protection rating?
Published technical information identifies an IP20 degree of protection.
What bearing type is used?
The 5656S uses ball bearings.
What materials are used?
The manufacturer identifies a painted sheet-steel impeller and die-cast aluminum housing.
What is the ambient temperature range?
The documented ambient temperature range is -35°C to +70°C.
What should be checked before ordering 5656S?
Check the complete model number, 230 VAC supply, 50 Hz frequency, 135 x 135 x 38 mm dimensions, airflow requirement and mounting arrangement before purchasing.
