230VAC Operation
Designed for 230 VAC input voltage with a rated current of 0.22 A, suitable for standard industrial AC power systems.

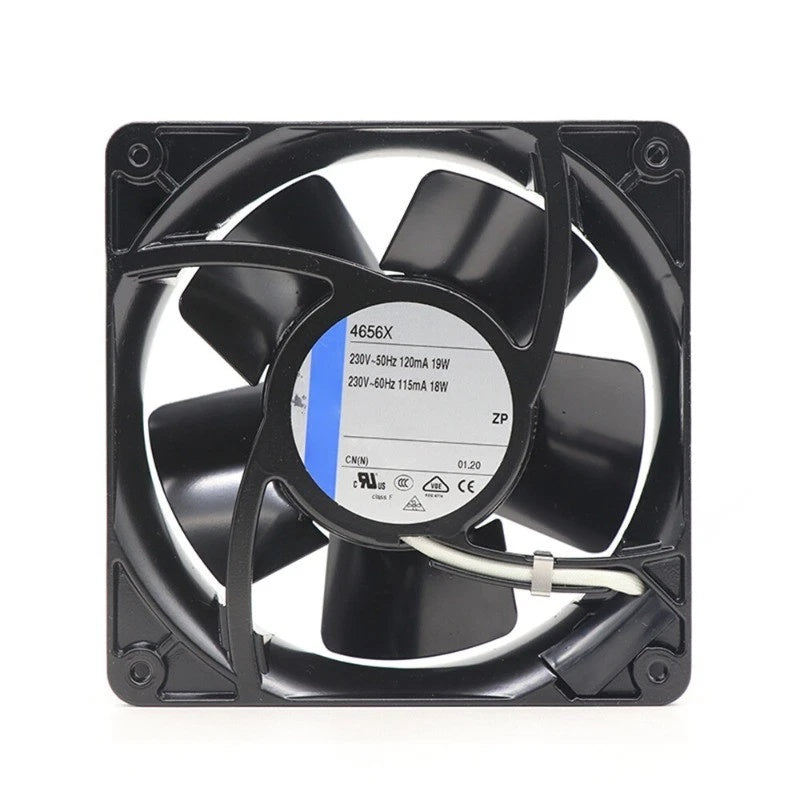

Ebmpapst 4656X AC Axial Fan 230VAC 46CFM 119mm
Available in stock (200)
Regular price
$31.88
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 4656X |
| Product Category | AC Axial Fan |
| Fan Type | Axial Fan |
| Rated Voltage | 230 VAC |
| Rated Current | 0.22 A |
| Power Input | 36 W |
| Rated Frequency | 50/60 Hz |
| Speed | 2650 RPM |
| Air Flow | 46 CFM |
| Dimensions | 119 x 119 x 38 mm |
| Bearing Type | Ball Bearing |
| Protection Rating | IP20 |
Key Features
46 CFM Airflow
Provides 46 CFM of airflow for effective cooling and ventilation in equipment cabinets and enclosures.
Ball Bearing Construction
Equipped with ball bearings for reliable operation over a wide temperature range and extended service intervals.
Compact 119mm Frame
Features a 119 x 119 x 38 mm frame size, fitting standard mounting configurations for axial fans.
Wide Temperature Range
Operates from -30°C to +80°C, enabling use in demanding industrial environments.
IP20 Protection
IP20 rated housing provides protection against solid objects larger than 12.5 mm for safe installation.
Applications
- Industrial equipment cooling
- Electrical cabinet ventilation
- Control cabinet thermal management
- Telecommunications equipment cooling
- Power supply unit ventilation
- Industrial machinery air circulation
- HVAC system components
- Electronic enclosure cooling
Purchase Information
We support online purchase of the Ebmpapst 4656X AC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst 4656X?
Ebmpapst 4656X is an AC axial fan designed for industrial cooling and ventilation applications.
What voltage does 4656X operate on?
The fan operates on 230 VAC with a rated current of 0.22 A and a power input of 36 W.
What airflow does the 4656X provide?
Published specifications indicate airflow of 46 CFM at 2650 RPM.
What are the dimensions of 4656X?
The fan measures 119 x 119 x 38 mm.
What bearing type is used in 4656X?
The 4656X uses ball bearings for reliable operation.
What is the operating temperature range?
The specified operating temperature range is -30°C to +80°C.
What applications can 4656X be considered for?
It can be considered for industrial equipment cooling, electrical cabinet ventilation, control cabinet thermal management, and telecommunications equipment cooling.
What protection rating does 4656X have?
The fan has an IP20 protection rating.
What should be checked before ordering 4656X?
Check the complete model number, voltage and frequency requirements, mounting dimensions, airflow and pressure requirements, and operating temperature range before ordering.
What should be verified before using 4656X in an existing system?
The electrical supply, mounting configuration, cabinet space and airflow requirements, and operating environment should be verified against the existing installation.
